Manufactory Wholesale 16/32* RCA MPEG-4 SD IP Encoder
ENC3181 for DVB-T ISDB-T H.264 Broadcasting Systems
Struggling with high bandwidth costs while maintaining SD video quality? The 16/32 RCA MPEG-4 SD IP Encoder ENC3181 delivers H.264 encoding for superior compression efficiency, ensuring crystal-clear video at ultra-low bitrates. Designed for Cable, IPTV, Satellite, and Hospitality TV systems, this encoder supports 16/32 channels with simultaneous IP and 2DVB-ASI outputs. Its modular design and PAL/NTSC compatibility make it a cost-effective solution for high-density video distribution. Certified for DVB/ATSC compliance, it’s trusted by broadcast engineers worldwide.
• High-density 1-RU modular system | • H.264/MPEG-4 SD encoding | • Simultaneous
IP & DVB-ASI outputs | • PAL/NTSC support | • DVB/ATSC compliant
◆ Low bitrate 16/32* RCA MPEG-4 SD IP Encoder
◆ with IP and 2ASI simultaneously out ◆ economic version with reliable quality
◆ H.264 encoding for sd encoder better than MPEG2
Overview
ENC3181 provides high compression efficiencies in the MPEG-4 broadcasting and delivers clearer pictures with increased depth and clarity. It makes possible to transmit high quality video content at low possible bandwidth for Cable, IPTV, Satellite, Terrestrial, ATSC, and Hospitality Hotel TV System TV applications available today.
Contact:Tomleequan Email：sales@fmuser.com whatsapp: +8613922702227
ENC3181 adopts the slot structure with one device supporting maximum 2*modules, and each module can support 16 channels and work standalone. It distributes up to 16/32 Channels SD Video Signals all in one MPTS as mirrored of DVB-ASI to next digital TV equipment as like Multiplexer, IPQAM Networks and Push 16/32 SPTS Over UDP/IP to LAN IPTV Network Simultaneously. With high density, high reliability and advanced compress arithmetic, it is equipped with the latest advances in video compression technology to deliver unsurpassed video quality at lowest bitrates and low latency.
This unit is designed especially for high channel density Distribution Video Engineering project, compatibility Up to 32 RCA inputs. It’s an ideal encoder for anyone looking for an easy and affordable way to support a large number of SD channels in low cost deployment.

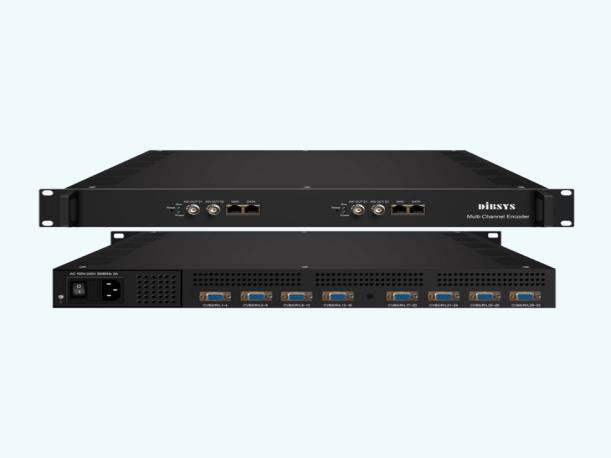

A rack mountable hardware appliance is used for broadcast local SD video feeds such as DVD Players, Professional Satellite Receiver, set-top boxes and cameras, either as a standalone system or part of a larger TV Server install, cable TV digital head-end, satellite digital TV broadcasting etc.
Features
◆High density,modular 1-RU system capable of hosting up to 2 AV Encoding input modules, each with 16 AV channels
◆High-quality low-bitrate H.264/MPEG-4 encoding of SD video with pre-processing technologies
◆PAL and NTSC SD video formats supported
◆Simultaneous outputs via N* SPTS/1* MPTS over GbE IP Port
◆MPEG-4 TS/UDP and RTP over IP output
◆Simultaneous outputs via IP, 2*DVB-ASI
◆Flexible GOP structures with IPP (P frame is adjustable)
◆PCR de-jittering and re-stamping
◆Feature to adjust the audio volume prior to encoding
◆Support VBR and CBR bitrate mode
◆Null PKT Filter(only for MPTS, SPTS output without Null PKT)
◆Broadcast-grade down converter
◆MPEG1 Layer II, Audio encoding; audio gain adjustment
◆DVB /ATSC compliance
◆Easy-to-use web GUI
