Manufactory Wholesale 1550 Mini Satellite Optical
Transmitter with Built-in CWDM for CATV and Satellite
Systems
Looking for a compact and efficient solution for satellite optical systems? The 1550 Mini Satellite Optical Transmitter is designed with built-in CWDM technology, offering a wide operating frequency range of 47-2150MHz. Its small size ensures easy installation, while features like excellent linearity, high return loss, and support for up to 16 optical nodes make it ideal for CATV and satellite applications. With a DFB coaxial laser and 13/18V LNB power supply, this transmitter delivers reliable performance in demanding environments.
• Built-in CWDM | • Wide frequency range (47-2150MHz) | • Supports up to 16 optical nodes | • Compact design for easy installation | • Ideal for CATV and satellite systems

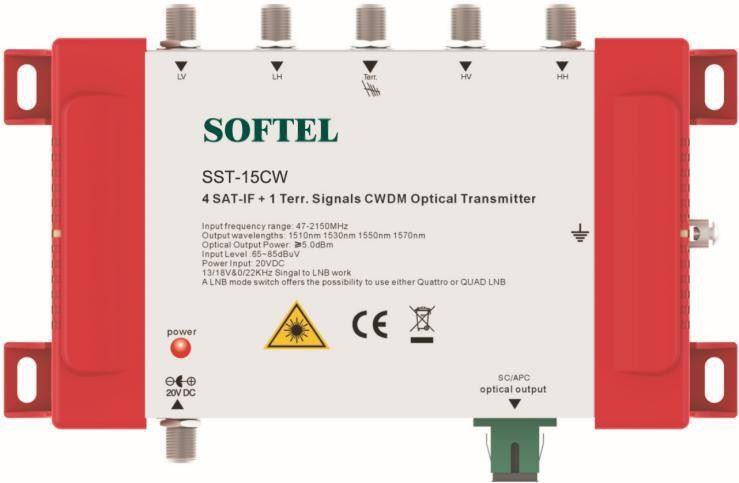

1550 mini satellite optical transmitter
1550 mini satellite opticaltransmitter is designedfor satellite opticalsystemhas wide operating frequency range of 47-2150MHz. Which has smaller saize for easier intallation.
Characteristic
● Excellent linearity and flatness
● Using 1-core single-mode fiber, high return loss
● Build-in CWDM, using DFB coaxial small package laser
● Output 13/18V, 0/22KHz to LNB working
● ALNB mode switch offers the possibility to use either Quattro or QUAD LNB
● A distribution of up to 16 optical nodes is possible
● Red-LED for power indication
Parameters
1550 Mini Satellite Optical Transmitter Specifications
FR connector F-female
Optical Connector
Power Supply F-female
Output Optical Wavelength
LV-TX: 1510nm
HV+Terr.-TX: 1550nm
HH-TX: 1570nm
Output Optical Power 3 mW(≥5dBm)
Input Impedance
LNB Power Supply
LNB Power Supply Current 350mA Max.
VDC

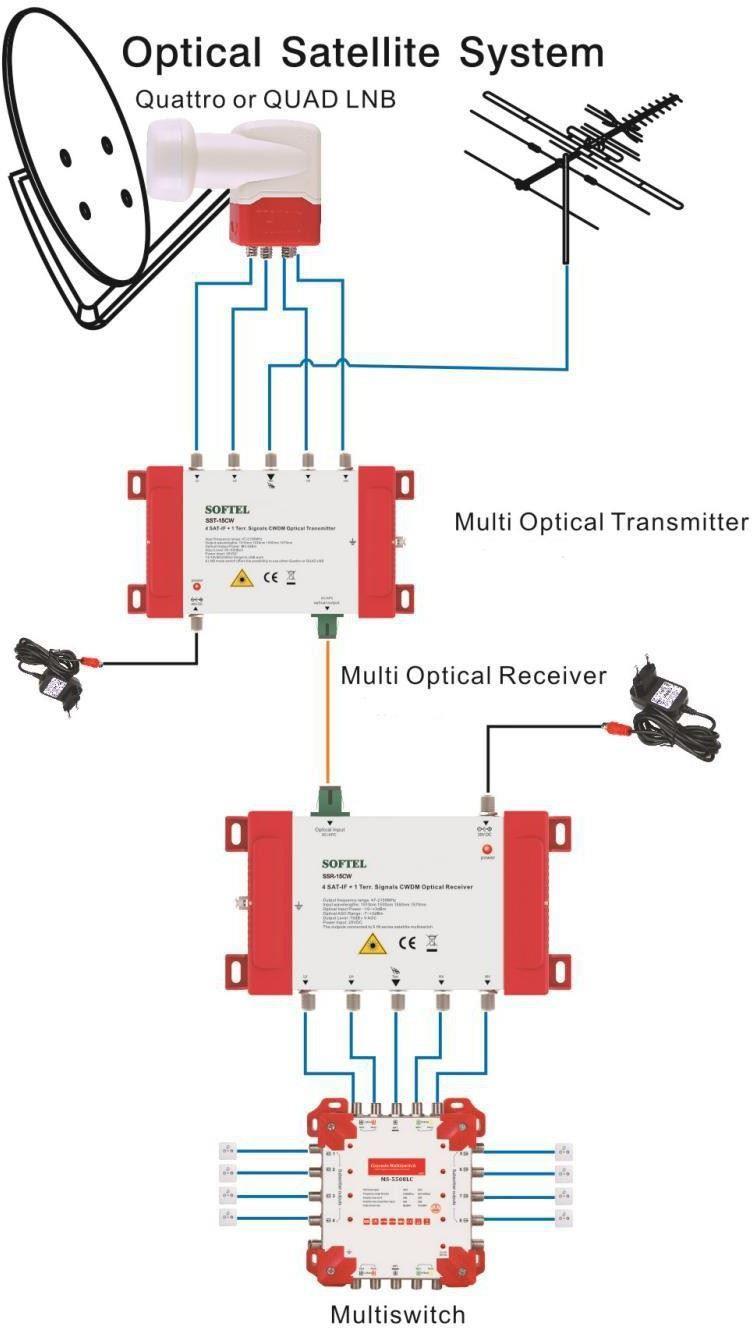

Optical Satellite System
1530nm
