Manufactory Wholesale SKD210X IP to RF Modulator for DVB-C/DVB-T/ATSC/J.83B/DTMB Systems | Compact HDMI H264
Encoding Solution
Are you struggling to efficiently convert IP streams into digital RF signals for your local TV system? The SKD210X IP to RF Modulator offers a cost-effective and compact solution, designed to seamlessly transform UDP/RTP protocols into high-quality digital RF signals. This device is engineered with advanced DVB-C, DVB-T, ATSC, J.83B, and DTMB standards, ensuring compatibility across various broadcasting systems. Its 34mm height and rack-mountable design make it ideal for space-constrained environments, while its built-in Web UI simplifies configuration and operation. With a frequency range of 50 ~ 999.999MHz and an output level of ≥ 45dBmV, the SKD210X delivers robust performance for applications in hotel, healthcare, and broadcasting industries. Certified for MER (Typ. 38 dB) and out-band rejection (≥ 60dB), this modulator guarantees reliable signal quality.
• 4 free adjacent output channels | • Supports unicast and multicast streams | • Automatic PSI/SI table generation | • Compact and rack-mountable design | • Easy configuration via Web UI

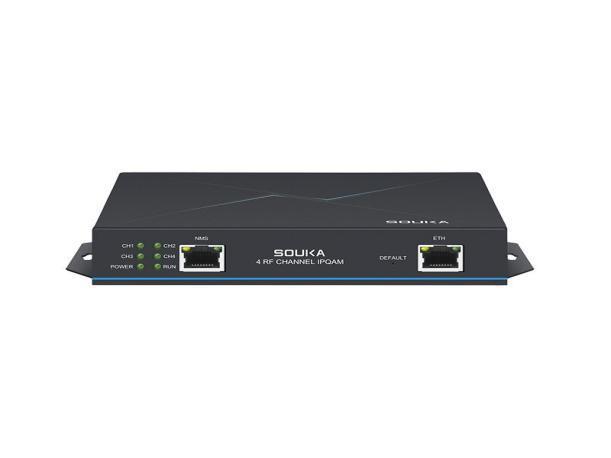

The SKD210X is designed to convert the IP stream over UDP/RTP protocols into the digital RF signal. It is ideal for applications requiring a low-cost and simple solution for IP to cable conversion for local TV system. It is extremely compact with 34MM height and rack mountable.
SKD210X
IP TO RF MODULATOR
FEATURES:
1. Offers 4 free adjacent output channels
2. Support the unicast and the multicast streams over UDP or RTP
3. Automatically generate PSI/ SI table
4. Easy configuration with built-in Web UI
SPECIFICATION:
INPUT
Input Connector RJ45*1 GbE
Transport Protocol UDP, RTP
MAX Input IP Address 63
Input Transport Stream MPTS and SPTS
OUTPUT
dard
Contact:Tomleequan Email：
64QAM,QA M_4NR
RF
Frequency
Out-band Rejection
60dB
MER Typ. 38 dB
GENERAL
Power Consumption Less than 5W
Dimensions WHD 178*32*124mm
Net Weight 0.68KG
Language 中文/ English
