Manufactory Wholesale SKD2150 IP Modulator Tuner to IP Headend Systems for IPTV with 4-Channel DVBS/S2 Input and Gigabit Ethernet
Output
Are you struggling to manage multiple signal inputs in your digital CATV headend system? The SKD2150 IP Modulator Tuner is here to streamline your operations. This compact yet powerful device supports 4 independent DVBS/S2 tuner signals and delivers seamless IP output via 2 Gigabit or 100M self-adaptive Ethernet ports. Designed for hotels, hospitals, entertainment venues, and home TV systems, it ensures high-quality signal transmission with a receiving sensitivity of -80dBm and an intermediate frequency range of 950~2150MHz. Built with a user-friendly Web UI for easy configuration and software upgrades, the SKD2150 is your go-to solution for reliable IPTV headend systems.
• 4 DVBS/S2 tuner signal inputs | • 2 Gigabit or 100M self-adaptive IP outputs | • Supports SPTS and MPTS output | • Built-in Web UI for easy configuration | • Compact design (18012230mm)
Contact:Tomleequan Email：

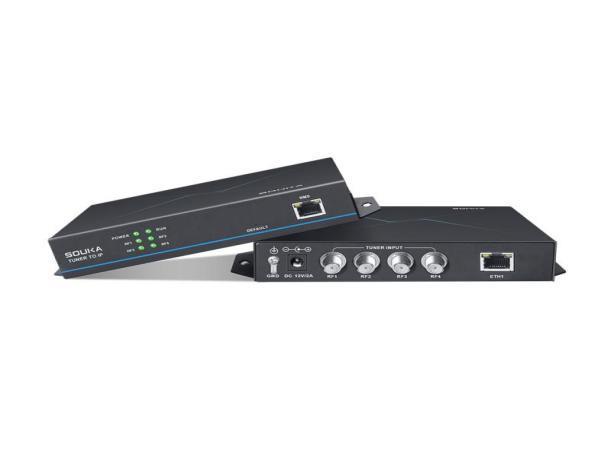

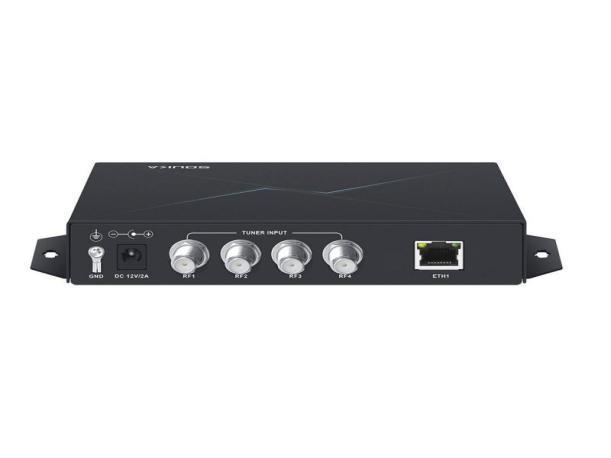

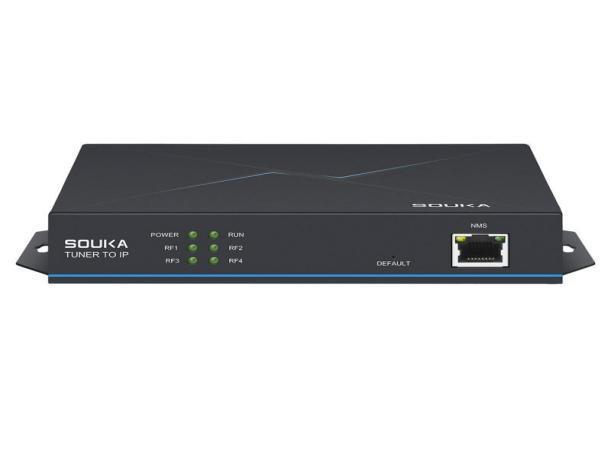

SKD2150 is a mini 4-channel tuner signals receiver which developed by our company. The product supports 4 channels of DVBS/S2 signals input and 2 channels of Gigabit Ethernet port IP output. It is perfect for hotels, hospitals, entertainment venues, home TV system and other digital CATV headend systems.
Features
u Support 4 DVBS/S2 tuner signal input of independent high frequency tuner u Support 2 Gigabit or 100M self-adaptive IP output
u Support SPTS and MPTS output
u Easy configuration and software upgrade by built-in Web UI
DVBS/S2
IP Output
Power Supply
Specification
Parameters
Input Channels 4 Intermediate Frequ
Receiving
Sensitivity -80dBm
Network Interface
Protocol
2 Gigabit or 100M self-adaptive IP output
UDP/RTP
IP Stream SPTS,MPTS
Input Voltage 12V 1.5A Power adaptor
Max. Current 1A
Physical Parameters
About Us
FMUSER is a company specializing in broadcasting and television transmission systems and integrating hotel IPTV systems. The company was established in 2009 and has served over 180 countries worldwide. More than 20,000 television stations, radio stations, and hotel clients from different.
