Manufactory Wholesale SKD201X HD Encoder Modulator with RF Loop for DVB-T ISDB-T ATSC Systems
Are you struggling to find a compact yet powerful solution for HD video encoding and RF modulation in space-constrained environments? The SKD201X HD Encoder Modulator is here to revolutionize your setup. This device combines MPEG-2 encoding and HDMI 1.4 output with a high combined output level of 45dBmV, ensuring seamless HD content delivery. Its RF loop port and second HDMI output make it versatile for various installation scenarios, from broadcast studios to hospitality systems. Measuring less than 3cm in height, this wall-mountable unit is the smallest form factor solution in the market, ideal for DVB-T, ISDB-T, and ATSC systems. Built with a Web UI for easy setup and control, the SKD201X is your go-to for reliable, high-quality video transmission.
• MPEG-2 encoding for superior video quality
• HDMI 1.4 output for quick HD content display
• RF loop port for flexible system integration
• Web UI for effortless setup and management
• Wall-mountable design for space-saving installations
The SKD201X is the most cost-effective and smallest form factor solution in the market. With the second HDMI output port and a RF loop port, user can easily install the system with different requirements. Extremely compact and wall mountable, the SKD201X fits into any space virtually.

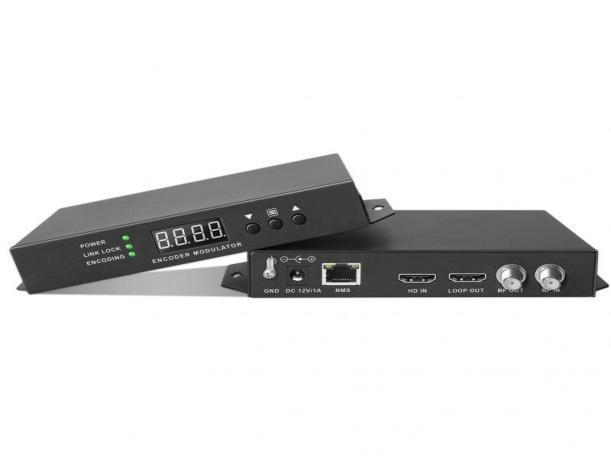

SKD201X
Box Type HD Encoder Modulator
FEATURES:
1. Extremely compact with less than 3cm height
2. Support MPEG 2 encoding
3. Integrated HDMI output for HD content quick display
4. High combined output level with 45dBmV MAX
5. Built-in Web UI allows easy set-up and control visa the web browser
SPECIFICATION:
Input Connector
VIDEO
AUDIO
ENCODING
HDMI 1.4
Encoding MPEG 2
Input Resolution 1920*1080_60P; 1920*1080_50P; 1920*1080_60i; 1920*1080_50i; 1280*720_60P; 1280*720_50P
Bitrate 2 ~ 18 Mbps
Encoding MPEG 1 Layer II, AC3,AAC-LC,HE-AAC
Sample Rate 32/44.1/48KHz
Bitrate 384kbps
ATSC
DVB-C J.83A
MODULATION
Standard
ATSC A/53 (6M)
Constellation 8VSB
MER ≥ 32 dB
Standard Annex A (8M)
Constellation 16QAM, 32QAM, 64QAM, 128QAM, 256QAM
MER ≥ 36 dB
Symbol Rate 3 ~ 6.952 Ms/s
Code rate 1/2, 2/3, 3/4, 5/6, 7/8
Guard Interval 1/32, 1/16, 1/8, 1/4
Standard
DVB-C J.83B
DVB-T
DTMB
Annex B (6M)
Constellation 64QAM, 256QAM
MER ≥ 36 dB
Standard
DVB-T COFDM
Bandwidth 6M, 7M, 8M
Constellation 4QAM, 16QAM, 64QAM
MER ≥ 32 dB
Transmission Mode 2K, 8K
Code rate 1/2, 2/3, 3/4, 5/6, 7/8
Guard Interval 1/32, 1/16, 1/8, 1/4
Standard
GB20600-2006 (8M)
Constellation 4QAM, 16QAM, 32QAM, 64QAM
MER ≥ 32 dB
Interleaving Mode INTLV_NONE, INTLV_240, INTLV_720
Rate Code 0.4, 0.6, 0.8
Carrier Type Multi-carrier, Single-carrier
ISDB-T
Contact:Tomleequan Email：
Sync Frame 420, 595, 945, PN Phase Variable, Constant
Standard ARIB STB-B31 (6M)
Constellation QPSK, 16QAM, 64QAM MER ≥ 42 dB
Code rate 1/2, 2/3, 3/4, 5/6, 7/8
Guard Interval 1/32, 1/16, 1/8, 1/4
Transmission Mode 2K, 4K, 8K
Interleave 0, 1, 2, 3
OUTPUT
RF Output Level ≥ 35 dBmV Output Frequency Range 50 ~ 999.999MHz Out-band Rejection ≥ 60dB
AC 90 ~ 240 V Power Consumption About Us
