Manufactory Wholesale SKD296X Dual HD Input Modulator with ISDB-T and DVB-T Modulation for Broadcast and TV Systems
Are you struggling to efficiently distribute high-quality sports and commercial content across your ISDB-T and DVB-T TV systems? The SKD296X Dual HD Input Modulator is your ultimate solution. This advanced H.264 encoder modulator seamlessly integrates two HD signals into a single RF output, ensuring stable and high-definition video quality up to 1080P. Designed for broadcast and TV systems, it supports ISDB-T and DVB-T modulation, making it ideal for applications in hotels, sports arenas, and commercial broadcasting. With a bitrate range of 2~18 Mbps and MER ≥ 32 dB (DVB-T) / ≥ 36 dB (ISDB-T), it delivers unparalleled performance. The SKD296X is also compatible with the SKD-M29 chassis, enabling a cost-effective 16-channel headend system. Trusted by industry professionals, this modulator is a game-changer for seamless content distribution.
Core Features: • Dual HD Inputs up to 1080P | • ISDB-T and DVB-T Modulation | • H.264 Encoding
SKD-M29 Chassis Integration | • Remote Key ID Insertion
The SKD296X digital modulator is a dual HD input encoder modulator with H.264 encoding. The built-in encoder can take in 2 HD signals and outputs in 1RF after mulitplexing and modulation. It is the best choice to distribute the sport and commericals into your ISDB-T and DVB-T TV system. It is recommended to install them into our SKD-M29 chassis to constitute a small system of 16 channels with 32 TV programs for money-saving.

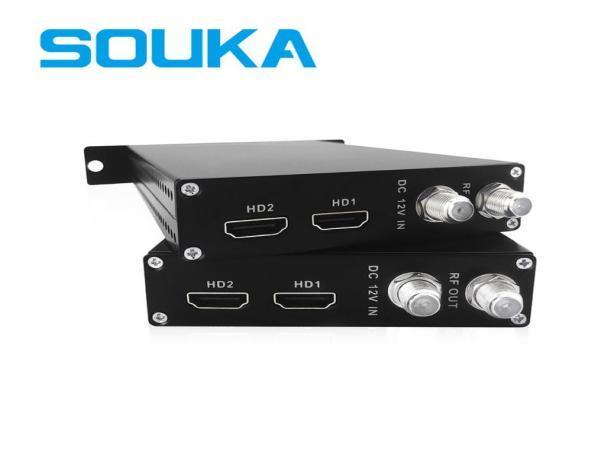

SKD296X
TWIN HD INPUT ENCODER MODULATOR
FEATURES:
1. Support HD inputs up to 1080P and output a stable quality image
2. Support remote key ID insertion
3. Support SKD-M29 combiner chassis integrated into the 16 IN 1 headend system
4. Operated and control via NMS
5. Simple step-by-step configuration by front panel buttons
SPECIFICATION:
1920*1080_60P; 1920*1080_50P; 1920*1080_60i; 1920*1080_50i; 1280*720_60P; 1280*720_50P
44.1K/ 48KHz
DVB-T
ISDB-T
RF
Manage ment
Bitrate 384kbps
MODULATION
Standard DVB-T COFDM
Bandwidth 6 /7 /8 M
Constellation QPSK, 16QAM, 64QAM
MER ≥ 32 dB
Transmission Mode 2K, 4K, 8K
Code rate 1/2, 2/3, 3/4, 5/6, 7/8
Guard Interval 1/32, 1/16, 1/8, 1/4
Standard ISDB-T
Bandwidth 6 M
Constellation 4QAM, 16QAM, 64QAM
MER ≥ 36 dB
Transmission Mode 2K, 4K, 8K
Code rate 1/2, 2/3, 3/4, 5/6, 7/8
Guard Interval 1/32, 1/16, 1/8, 1/4
OUTPUT
Output Level ≥ 30dBmV
Output Frequency Range 50 ~ 999.999MHz
Out-band Rejection ≥ 60dB
SYSTEM
Control Keys; NMS; APP LCN Insertion YES
Languag e English Upgrade NMS
Contact:Tomleequan Email：
NOTICE: The SKD296X is strongly recommended to be installed in the chassis SKD-M29
