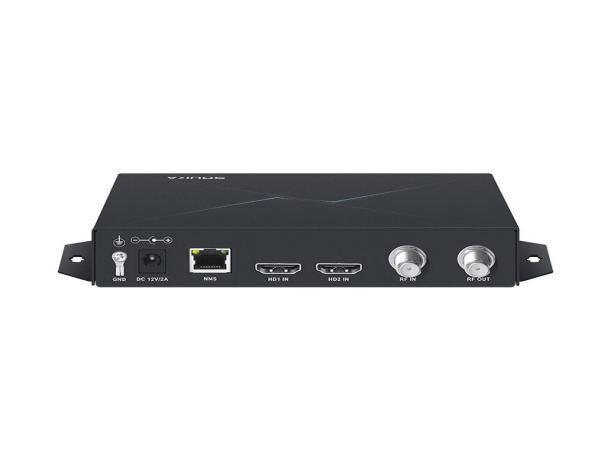

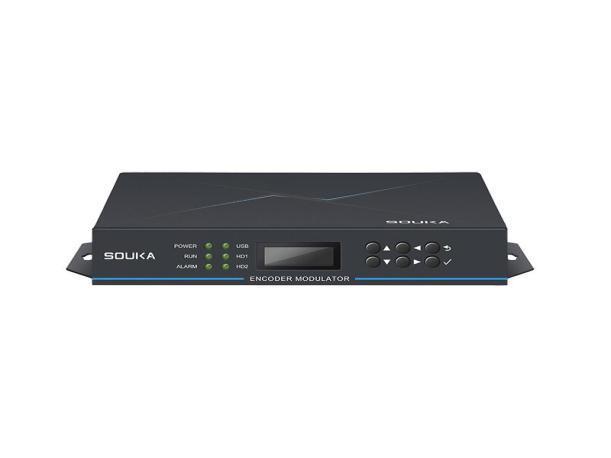

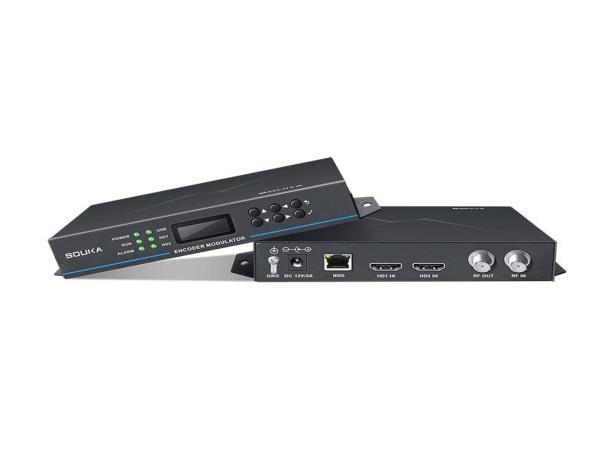

Manufactory Wholesale SKD211X Digital TV Encoder Modulator - HD to RF Modulator for DVB-C/DVB-T/ATSC/DTMB Systems
Are you struggling to efficiently convert and transmit high-definition video signals across multiple platforms? The SKD211X Digital TV Encoder Modulator is your ultimate solution. This high-performance device seamlessly encodes, multiplexes, and modulates two HD signals into a single RF output, supporting DVB-C, DVB-T, ATSC, QAM, and DTMB standards. With its advanced H.264 video encoding and AAC audio encoding, it ensures top-notch signal quality and compatibility. The SKD211X also features an NMS port that doubles as an IP data input, allowing integration of ONVIF-compliant IP camera signals into your RF channels. Ideal for broadcasting, security surveillance, and hospitality industries, this modulator boasts a maximum input resolution of 1080P_60 and an output resolution of 1080P_30. Its low power consumption and portable design make it a cost-effective and versatile choice for system integrators and engineers. Certified for DVB-C, DVB-T, ATSC, and DTMB, the SKD211X is a reliable addition to any professional setup.
H.264 Video & AAC Audio Encoding
The SKD211X is a high performance and cost-effective modulator. It encodes, multiplexes and modulates the two HD signals into 1 RF signal (DVB-C / DVB-T / ATSC/ QAM / DTMB factory set). The NMS port also can be used as the IP data input port to take in the camera IP signal with ONVIF protocol. The camera IP signals will be modulated into the RF channel as well.
SKD211X
Digital TV Encoder Modulator
FEATURES:
1. Video encoding in H.264 and audio encoding in AAC
2. Max input resolution up to 1080P_60 and output in 1080P_30
3. Convert security IP camera signal to a RF channel
4. Portable and low power consumption
5. Front panel LCD display for quick configuration
6. Easy configuration with built-in Web UI
SPECIFICATION: INPUT
Input Connector
Input Video Resolution
HDMI *2
1920*1080 60P, 1920*1080 50P, 1920*1080 60i, 1920*1080 50i, 1280*720 60P, 1280*720 50P
Video Encoding H.264
Audio Encoding AAC
Input Connector RJ45*1 FE
Transport Protocol ONVIF
Input IP Address Number 1
OUTPUT
QPSK,16QAM ,32QAM, 64QAM,QAM_ 4NR Other
Power Consumption
GENERAL
Less than 5W
Language 中文/ English
