Manufactory Wholesale Blade Type HD Encoder Modulator SKD271X for DVB-T ISDB-T ATSC Broadcasting
Are you struggling to efficiently convert and transmit high-definition signals across multiple digital formats? The Blade Type HD Encoder Modulator SKD271X is your ultimate solution. This compact yet powerful device supports MPEG-2 video encoding and delivers 1080P_60 resolution, ensuring top-notch video quality. With its blade-type design, it can be used both standalone or integrated into the SKD-M27 chassis, allowing up to 16 RF signals to be managed through a single RF output port. Ideal for broadcasting, cable TV, and hotel IPTV systems, this encoder modulator offers a bitrate range of 2 ~ 18 Mbps and supports multiple standards including DVB-T, ISDB-T, and ATSC. Its built-in Web UI ensures easy setup and control, making it a user-friendly choice for engineers and system integrators.

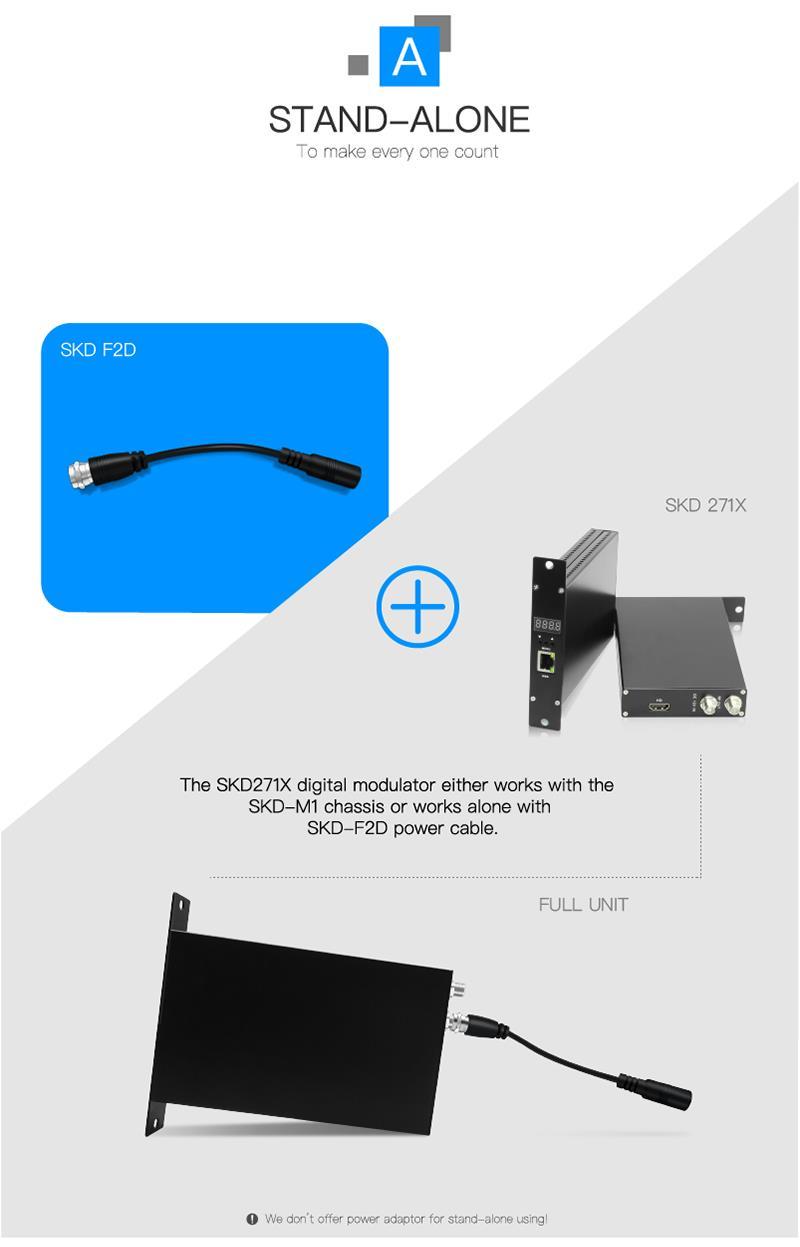

• Blade-type design for standalone or chassis use
• Supports MPEG-2 video encoding up to 1080P_60
• Built-in Web UI for easy setup and control
• Compatible with DVB-T, ISDB-T, ATSC standards
• Single RF output port for up to 16 RF signals

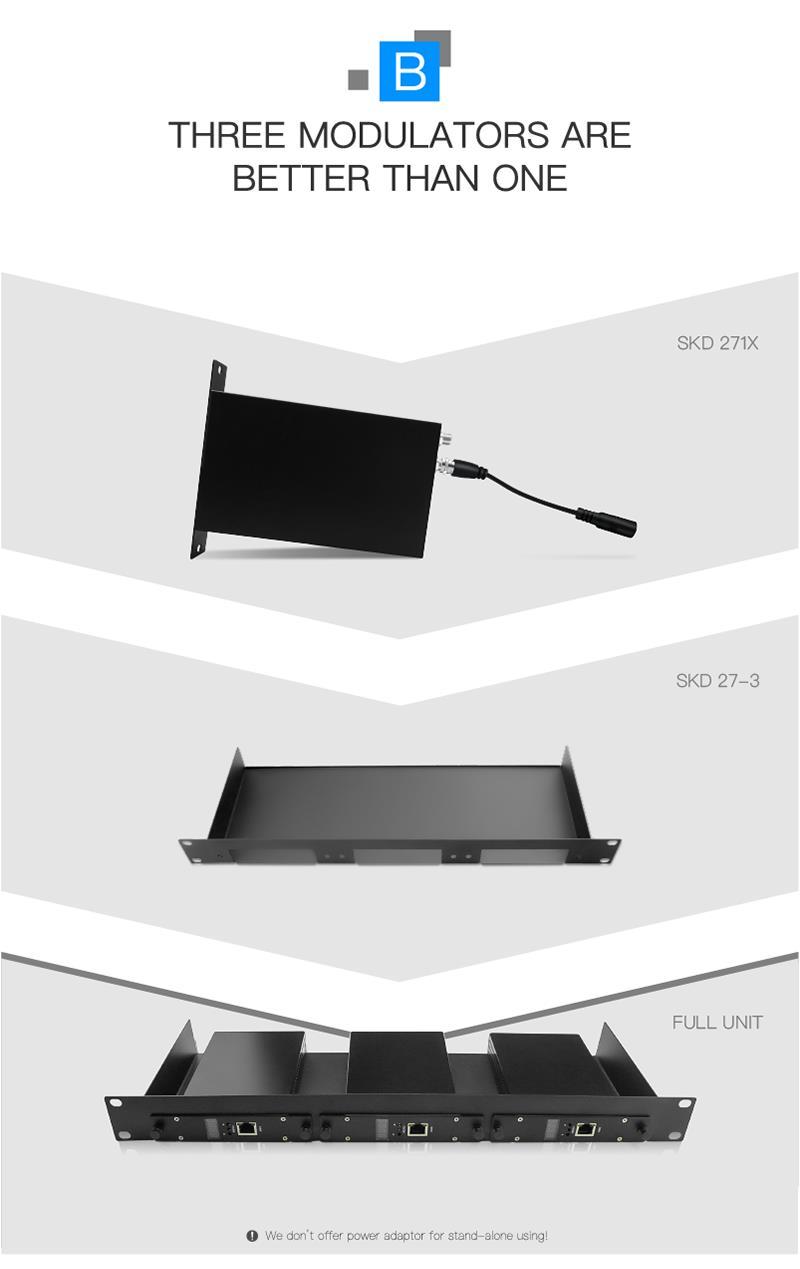

The SKD271X is a cost-effective but professional encoder modulator designed in a compact size. It can convert the HD signal into different digital signal with the resolution of 1080P. With the chassis SKD-M27, it can amount up to 16 pieces and deliver 16 RF signal by 1 RF output port.
SKD272X
BLADE TYPE SD ENCODER MODULATOR
FEATURES:
1. Support MPEG 2 video encoding
2. Editable channel name and information to be shown on the TV
3. LCN (Logical channel number)and VCT (Virtual channel table) support
4. Support NMS management and upgrade
5. User friendly front panel operation for quick set up
SPECIFICATION:
VIDEO
AUDIO
Encoding MPEG 2 Input Resolution PAL 720*576 NTSC 720*480 Bitrate 2 ~ 18 Mbps
Encoding MPEG 1 Layer II
Sample Rate 48KHz
Bitrate 384kbps
OUTPUT SETTING
Output type AT SC
Standa rd AT SC A/53 Ann ex A An nex B CO FDM GB20600 -2006 -
Bandwi dth 6M 8M 6M 6M , 7M, 8M 8M
Conste llation 8V SB 16Q AM, 32QAM, 64QAM, 128QA M, 256QA M 64 QAM 25 6QAM QP SK 16 QAM 64 QAM 4QAM, 16QAM, 32QAM, 64QAM -
Other settings - Sy mbol rate: 3 ~6.952 Ms/s Code rate Gua rd Interval - Co de rate, Gu ard Interva l, 2K8K Interleav ing, Rate Code, Carrier type, Sync Frame, PH Phase -
OUTPUT
RF Output Level ≥ 30dBmV
Output Frequency Range 50 ~ 999.999MHz
Out-band Rejection ≥ 60dB MER Typ. 38 dB
