Manufactory Wholesale 4/8CH SDI/IPTV Encoder for
Multiscreen Broadcasting with H.264/MPEG-2 Support
Struggling with complex MPEG stream management? The DCM730 ASI to ASI Mux and Scrambler simplifies your workflow with advanced PSI/SI handling and real-time bitrate monitoring. Designed for broadcast and cable TV systems, it supports up to 8 ASI inputs and 16 MPTS IP outputs, ensuring seamless multiplexing and scrambling. With low latency and high PCR precision, it’s a cost-effective solution for headend processing.
Certified for DVB-T and ISDB-T standards, it’s trusted by industry professionals worldwide
• 8 ASI inputs for versatile stream management
• Real-time bitrate monitoring for precise control
• PSI/SI auto-generation for dynamic table updates
• Low latency and high PCR precision for broadcast quality
• Compact 1-RU design saves rack space and reduces costs
1.8 channels DVB -ASI input per chassis 2. 16*mpts ip output
3. Auto-generation and manual upload for PSI/SI information
4. Real-time monitoring bitrate statistics
Description
Overview

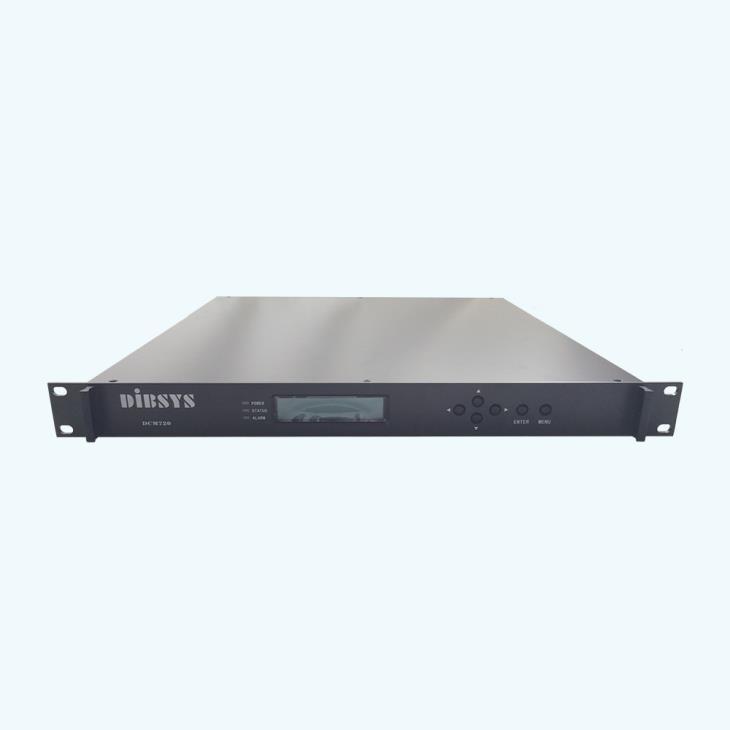

DCM730 Digital Content Manager (DCM) MPEG Processor is a compact 1RU platform capable of processing a high number of MPEG video streams. The multiplexer scrambler has all the functions of normal TS multiplexer, including programs multiplexing and scrambling, PID re-mapping etc. Also the multiplexer can insert EPG (Electronic Program Guide), and data casting information into each output stream.
DCM730 Professional DCM platform is an ideal solution, which can multiplex up to 8 ASI and 64 IP input and output TS through 2 groups of separate ASI output port and two GE port for two separate IP outputs. The MPEG Processor is the intelligent headend processing equipment where the combination of compactness and flexibility leads to a cost-effective solution. Based on our experience, brings operational and economic benefits in MPEG processing applications.
DCM730 Supports advanced PSI and descriptor handling capabilities. PSI, SI tables can be regenerated and played out, changing dynamically according to input changes and configurations. Integration with SI-Editor allows customized PSI/SI situations to be addressed.
Features
◆6 tuner inputs (DVB-S/DVB-S2/DVB-C/ISDB-T Optional)+2 ASI inputs or 8ASI input
◆De-encapsulates and Routes Any or All Selected TS outputs
◆Support processing for multiplexing PSI/SI Table
◆PID filtering, mapping and pass-through
◆Input data rate range: ≤214Mbps
◆Output DVB-ASI: ≤100Mbps
◆Auto-generation and manual upload for SI/PSI information
◆Up to 4 CAS simul-cryption, suitable for multiple CA manufacturers.
◆Transrating of MPEG2/MPEG4 AVC SD and HD
◆Management via WEB and local front panel
◆Integrated, compact 1-RU platform saves rack space and reduces operating costs
◆Low network jitter, low latency, high PCR precision
◆Easy-to-Use System Management
◆Real-time monitoring bit rate statistics
