Manufactory Wholesale SKD191X 9 Channels HD Digital Modulator for DVB-T ISDB-T H.264 Encoding in CATV Systems
Are you struggling to deploy a reliable and flexible digital TV system that meets modern broadcasting standards? The SKD191X 9 Channels HD Digital Modulator is your ultimate solution, designed to streamline digital TV rollout with unparalleled efficiency. Built with hot-swappable HD encoder cards and a 1RU chassis, this modulator ensures uninterrupted maintenance and minimizes cabling complexity. It supports H.264 video encoding and MPEG 1 Layer II audio encoding, delivering high-quality broadcasts with resolutions up to 19201080_60P and bitrates ranging from 2 to 18 Mbps. Ideal for CATV systems, hotel TV networks, and broadcasting studios, the SKD191X features DVB-T COFDM modulation with QPSK, 16QAM, and 64QAM constellations, ensuring robust signal transmission with MER ≥38 dB. Its auto-speed fans and UL-listed power supply guarantee long-term reliability.
Core Features:
• Hot-swappable HD encoder cards for seamless maintenance
• 1RU chassis design for space-saving and reduced cabling
• H.264 video encoding with resolutions up to 19201080_60P
• DVB-T COFDM modulation with QPSK, 16QAM, and 64QAM support
• Auto-speed fans for efficient heat dissipation and extended lifespan

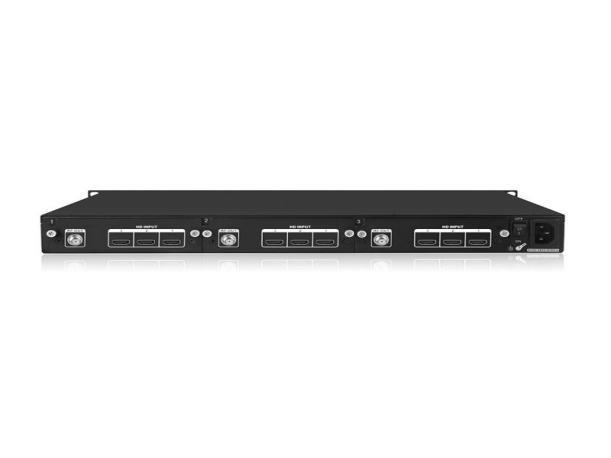

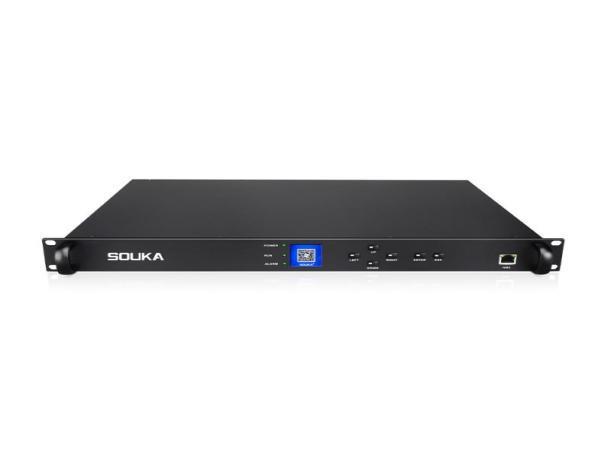

The SKD191X is an digital modulator that formed by the SKD-M19 chassis and three HD encoder cards. It is designed to quickly roll out the digital TV system by its flexible feature.
Contact:Tomleequan Email：
9 CHANNELS DIGITAL MODULATOR
FEATURES:
1. All cards are hot-swapped design for uninterrupted maintenance
2. All settings will be stored automatically without second configuration
3. 1RU chassis design with less unnecessary cabling and room
4. Auto-speed fans for heat-sinking and long lifespan use
5. Simple step-by-step configuration by front panel buttons and NMS
SPECIFICATION:
Input Connector HDMI 1.4
ENCODING
Encoding H.264
VIDEO
AUDIO
Input Resolution
1920*1080_60P; 1920*1080_50P; 1920*1080_60i; 1920*1080_50i; 1280*720_60P; 1280*720_50P
720*480_60i; 720*576_50i
Bitrate 2 ~ 18 Mbps
Encoding MPEG 1 Layer II
Sample Rate 32K/ 44.1K/48KHz
Bitrate 384kbps
MODULATION
DVB-T Standard DVB-T COFDM (6/7/8 M)
Constellation QPSK,16QAM,64 QAM
MER ≥38 dB
Code Rate 1/2, 2/3, 3/4, 5/6, 7/8
Guard Interval 1/32, 1/16, 1/8, 1/4
DVB-CJ.8 3A
Transmission Mode 2K,8K
Standard Annex A
Bandwidth 6/ 7 /8M
Constellation 16QAM,32QAM,64QAM, 128QAM, 256QAM
MER ≥40dB
Symbol Rate 3 ~ 6.952Msps
Standard Annex B
Bandwidth 6M
Constellation 64QAM, 256QAM
DVB-CJ.8 3B
ATSC
MER ≥40dB
Symbol Rate 5 ~ 6.900Msps
Cable
Standard HRC, IRC or STD
Constellation 8VBS
MER ≥32dB
OUTPUT
RF Output Channel number 1 carrier per card
Output Level ≥45dBmV
Output Frequency Range 100 ~ 999.999MHz
Out-band Rejection ≥60dB
GENERAL
