Manufactory Wholesale SC APC UPC Fiber Optic Adapter for CATV,
Telecom, and LAN Networks
Need reliable fiber optic connections for high-performance networks? The SC APC UPC Fiber Optic Adapter ensures seamless integration with low insertion loss (≤0.20dB) and high return loss (>50dB), making it ideal for CATV systems, telecom networks, and LAN applications. Its compact, durable design meets Telcordia, ANSI, TIA/EIA, NTT, and JIS standards, ensuring compatibility and reliability. With a wide operating temperature range (-40ºC to +75ºC), this adapter is perfect for demanding environments.
• Low insertion loss (≤0.20dB) | • High return loss (>50dB) | • Telcordia, ANSI, TIA/EIA, NTT, JIS compliant | • Compact and durable design | • Wide temperature range (-40ºC to +75ºC)
Fiber adapters are also called flanges, fiber connection components. It is widely used in ODF, fiber transmission equipment etc.
SC

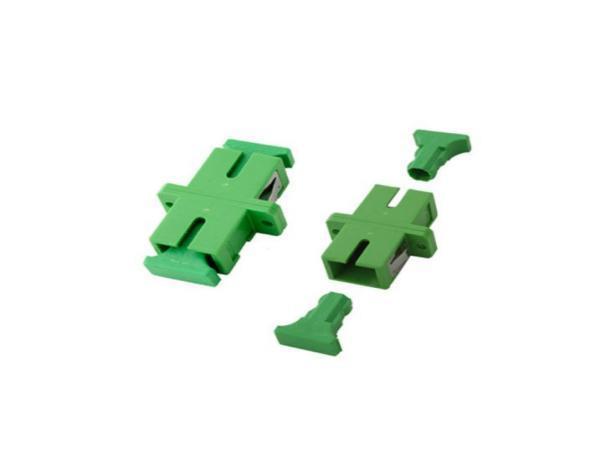

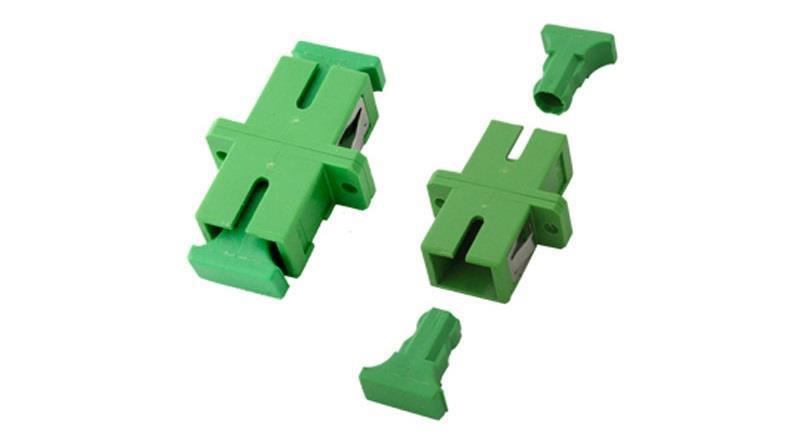

APC UPC Fiber Optic Adapter
Fiber adapters are also called flanges, fiber connection components. SC APC UPC Fiber Optic Adapter is widely used in ODF, fiber transmission equipment etc.
Features
1. High precision of mechanical dimensions
2. Low insertion loss, High return loss
3. Telcordia, ANSI, TIA/EIA, NTT and JIS compliance
4. Compact design
5. Plastic housing Applications
1. CATV System
2. Telecommunication networks
3. Local Area Networks
4. Equipment Test
5. Gigabit Ethernet
6. Active device/Transceiver
7. Data processing networks
Specifications of SC APC UPC Fiber Optic Adapter
Type
Insertion Loss
Single mode / Multi mode
≤ 0.20dB Max for Zr Sleeve
≤ 0.30dB Max for Pb Sleeve
(Note: Measured using JDSU meter and Master
Return loss >50dB
Durability
Sleeve/Ferrule Withdrawal Force
Operating Temperature
≤ 0.2dB typical change, 1000 mating
2.0N ~ 5.9N (200gf ~ 600gf)
-40ºC to +75ºC -40ºC to +75ºC
Storage Temperature -40ºC to +75ºC -40ºC to +75ºC
