Manufactory Wholesale 1x16 PLC Fiber Optic Splitter for
FTTX PON CATV LAN Networks
Looking for a reliable solution to optimize your fiber optic network? The 1x16 PLC Fiber Optic Splitter delivers exceptional performance with its SMF-28e fiber and Φ2.0mm pigtail, ensuring minimal insertion loss (≤13.9 dB) and high return loss (≥55 dB).
Designed for FTTX (FTTB, FTTH, FTTC), PON, CATV, and LAN applications, this splitter operates seamlessly across a wide wavelength range (1260-1650 nm) and maintains stability in extreme temperatures (-40 to +85°C). Its compact plastic box (14011518mm) and optional FC/SC connectors make it a versatile choice for network engineers.
• SMF-28e fiber with Φ2.0mm pigtail | • Wide operating wavelength (1260-1650 nm) |
•
Low insertion loss (≤13.9 dB) | • High return loss (≥55 dB) |
• Compact design for FTTX, PON, CATV, LAN
Plastic box (14011518mm),
SMF-28e fiber, Φ2.0mm pigtail, 1m length, without connector or with FC or SC connector

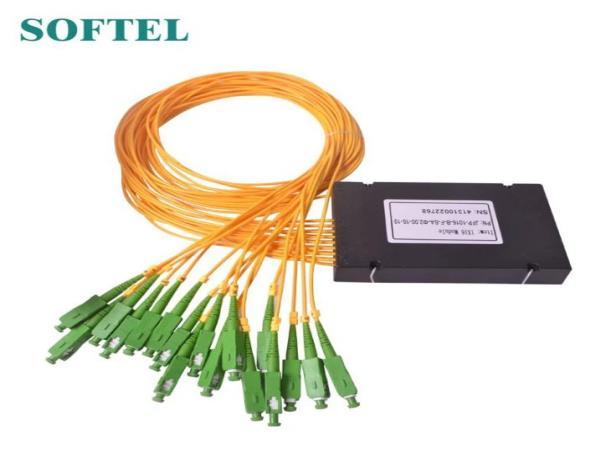

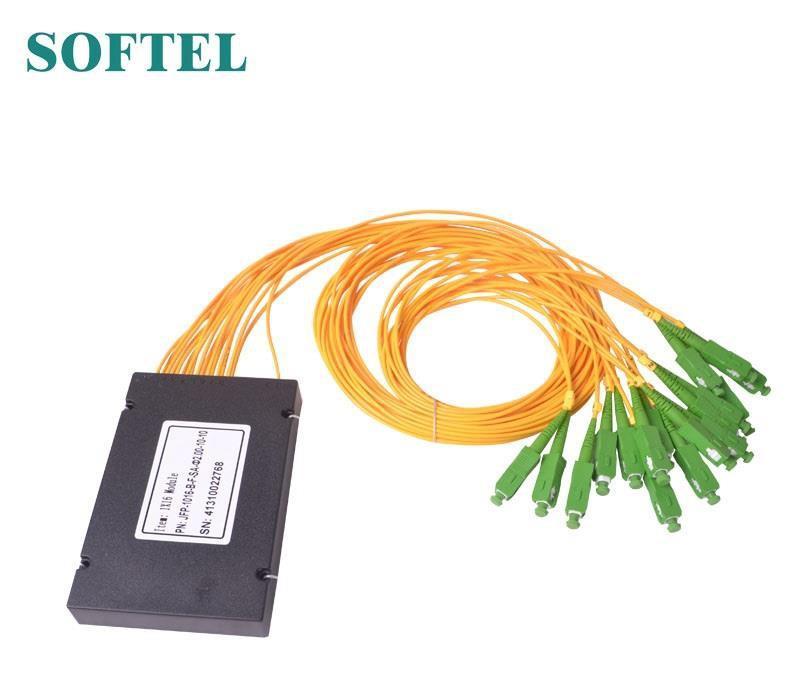

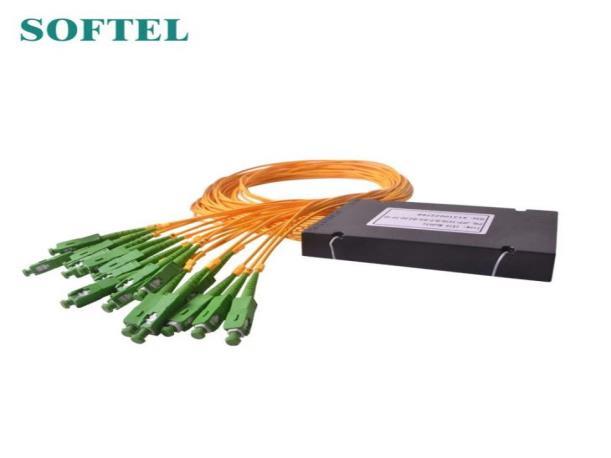

1x16 PLC Fiber Optic Splitter
SOFTEL supplies the 1XN (NXN) Tree/Star type coupler by grade-connection 1X2 coupler. 1x16 PLC fiber optic splitter can be applied in FTTX (FTTB, FTTH, FTTC), passive optical networks (PON), CATV system and local area networks (LAN).
Features
Plastic box (140mm*115mm*18mm)
SMF-28e fiber, Φ2.0mm pigtail, 1m length, with no connector, FC or SC connector for option
Specifications of 1x16 PLC Fiber Optic Splitter
