Manufactory Wholesale FC APC UPC Fiber Optic Adapter for Telecommunication and CATV Systems

Need reliable fiber optic connectivity for high-performance networks? The FC APC UPC Fiber Optic Adapter ensures seamless docking with FC, SC, ST, LC, MTRJ, and MU connectors, offering stable and efficient signal transmission. Designed for telecommunication, CATV, LAN/WAN, and broadband systems, it features low insertion loss (≤0.20dB), high return loss (>50dB), and durability up to 1000 matings. With a polymer/metal outer body and easy panel clip installation, this adapter is built for demanding environments.

• Low insertion loss (≤0.20dB) | • High return loss (>50dB) | • Polymer/metal outer body | • Easy panel clip installation | • Wide operating temperature range (-40ºC to +75 ºC)

Fiber optic adapter is a fiber optic connector docking components, including FC, SC, ST, LC, MTRJ, MU etc.

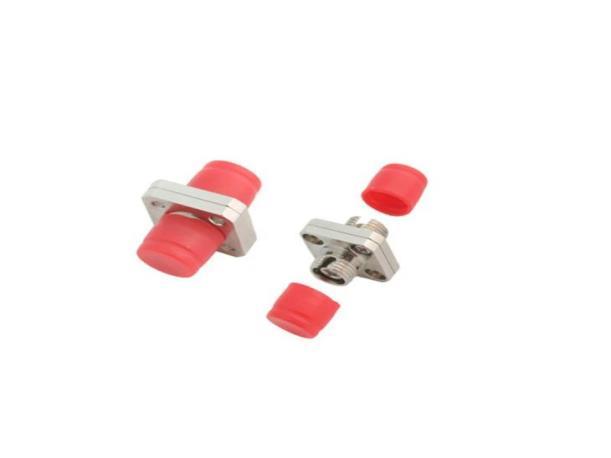

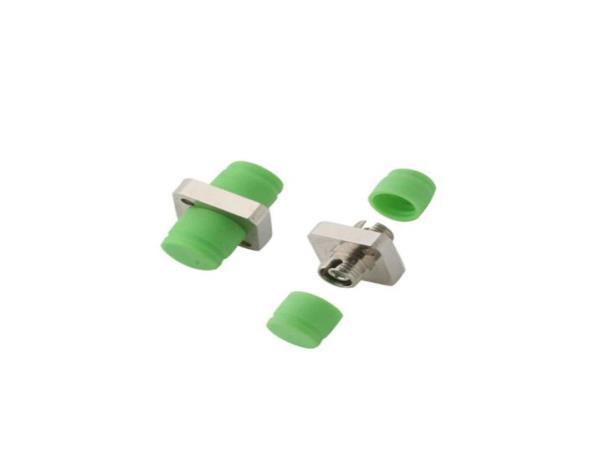

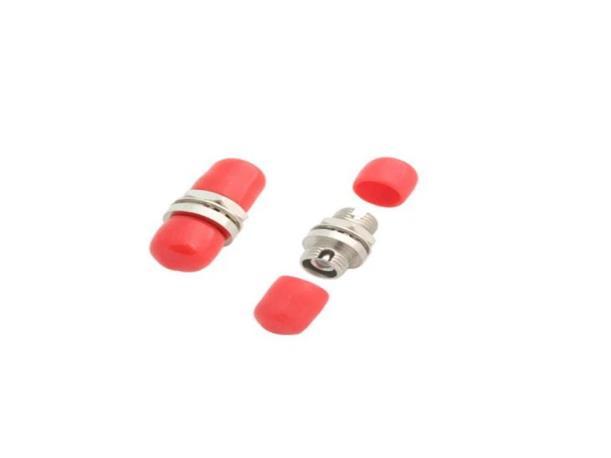

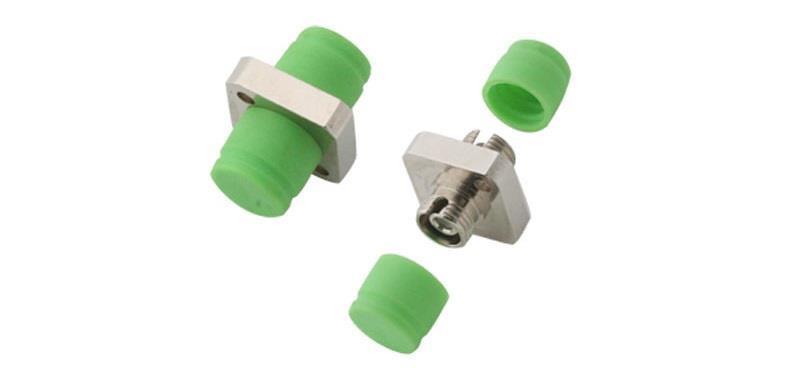

FC APC UPC Fiber Optic Adapter

Fiber optic adapter is a fiber optic connector docking components, including FC, SC, ST, LC, MTRJ, MU etc. They are widely used in optical distribution frame, optical fiber communication equipments, instrumentation.

Features

Square cutouts.

Polymer/metal outer body.

Panel clip for easy installation.

Increased panel density and quick plug in installation.

Stable and reliable performance

Applications

1. Telecommunication system

2. CATV system

3. LAN & WAN

4. Network

5. Broadband

Specifications of FC APC UPC Fiber Optic Adapter

Type

Insertion Loss

Single mode / Multi mode

≤ 0.20dB Max for Zr Sleeve

≤ 0.30dB Max for Pb Sleeve

(Note: Measured using JDSU meter and Master

Return loss >50dB

Durability

≤ 0.2dB typical change, 1000 mating

Sleeve/Ferrule Withdrawal Force 2.0N ~ 5.9N (200gf ~ 600gf)

Operating Temperature

-40ºC to +75ºC -40ºC to +75ºC

Storage Temperature -40ºC to +75ºC -40ºC to +75ºC

About Us

FMUSER is a company specializing in broadcasting and television transmission systems and integrating hotel IPTV systems. The company was established in 2009 and has served over 180 countries worldwide. More than 20,000 television stations, radio stations, and hotel clients from different.
