Wholesale Mini Optical Node with 1310nm/1490nm Bypass Port for FTTH Networks
Looking for a compact and efficient solution for FTTH networks? The Mini Optical Node SR3020AW features a built-in AGC function and WDM, ensuring seamless signal transmission with ultra-low noise technology. Designed for easy installation, it supports a wide optical input power range (-10 to +3 dBm) and operates at a frequency range of 47-2150MHz. Ideal for cable operators and telecommunication providers, this node delivers high performance with a maximum output level of 80dBµV.
• Built-in AGC & WDM | • Ultra-low noise technology | • Compact design for easy installation | • Wide optical input power range | • High output level up to 80dBµV
This mini optical node has 1310nm/1490nm Optical Bypass Port to ONU. The operating frequency range is 47-2150MHz

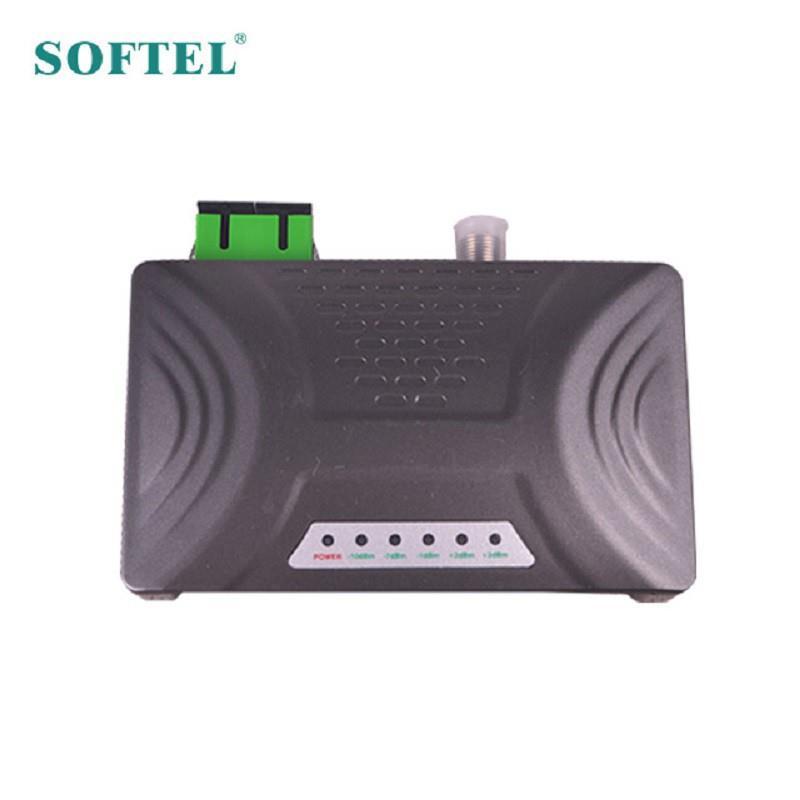

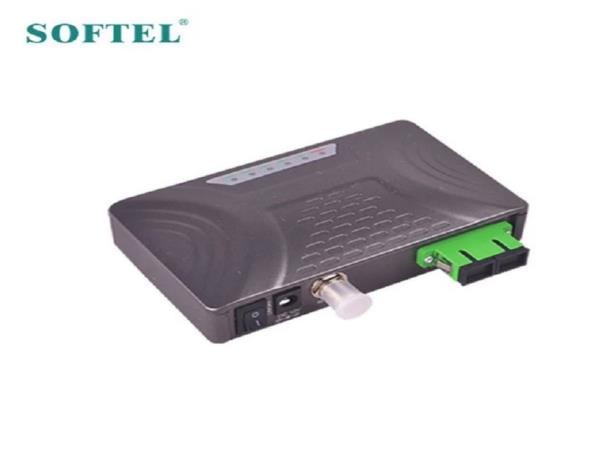

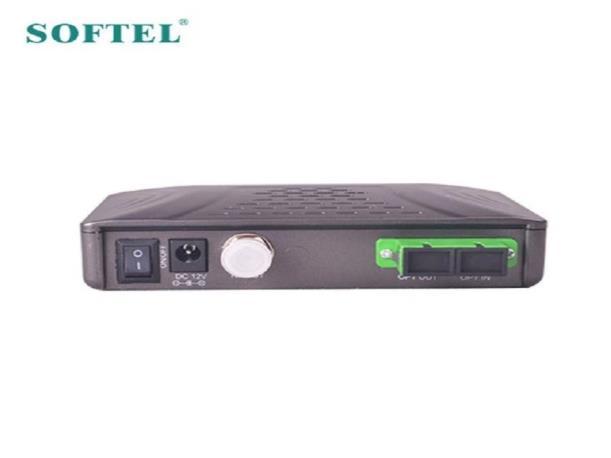

Mini Optical Node
Mini optical node SR3020AW is with build-in AGC function and build-in WDM. Smaller size makes it easier to install in FTTH(Fiber To The Home) networks.
Features
1.It adapts Ultra low noise technology.
2.RF Automatic gain control function is realized by MCU, optical AGC control range: +2dBm～ -7dBm
3.Forward RF branch output
4.It has wide range of optical input power.
5.It is of smaller size and is easier for installation.
6. Forward working frequency is extended to 1GHz. The RF amplifier part adopts the high performance and low power consumption GaAs chip. The maximum output level is up to 80dBuv.
Parameters of mini optical node
Customer Interface
RF Connector F-female
Optical Connector
Optical Parameter Responsivity
Optical Return Loss
Input Wavelength nm 1260~1600
Receive Wavelength nm 1550±20
Bypass Wavelength nm 1310/1490
Optical Fiber Type Single Mode
RF Parameter
Housing material ABS
