Manufactory Wholesale FTTH CATV Optical Receiver 4-Way
SC/APC Connectors 5-200MHz Return for Large City Networks
Looking for a reliable solution for large and mid-sized city networks? The FTTH CATV Optical Receiver features 4-way independent return receiver modules with SC/APC connectors, ensuring high performance and ease of use. With a working bandwidth of 5-200MHz, it delivers an output level of 80±2 dBuV and supports a wide wavelength range of 1310~1600 nm. Ideal for cable operators and telecommunication networks, this receiver offers excellent CNR (≥52 dB) and low distortion (CTB ≤-67 dB, CSO ≤-62 dB).
• 4-way independent return receiver modules | • SC/APC connectors | • 5-200MHz working bandwidth | • High CNR and low distortion | • Wide wavelength range (1310~1600 nm)
This 5-200MHZ Return Optical Receiver is 4 Way and with SC/APC Connectors.
FTTH CATV Optical Receiver

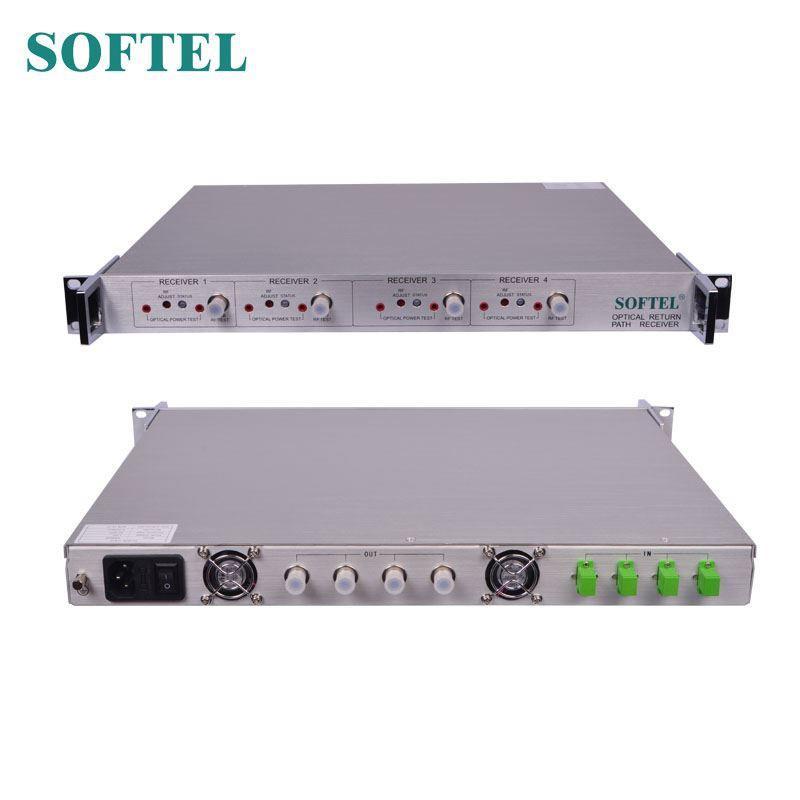

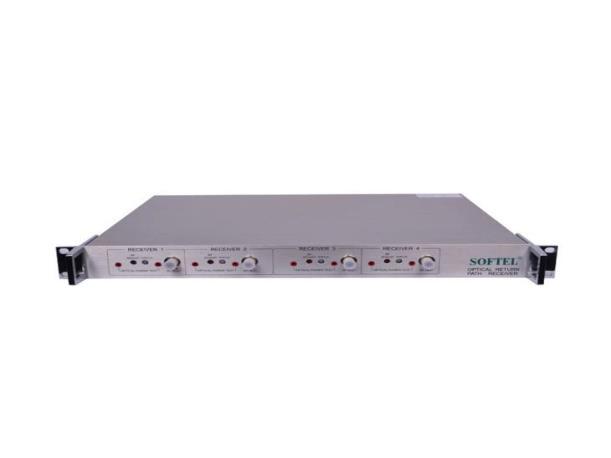

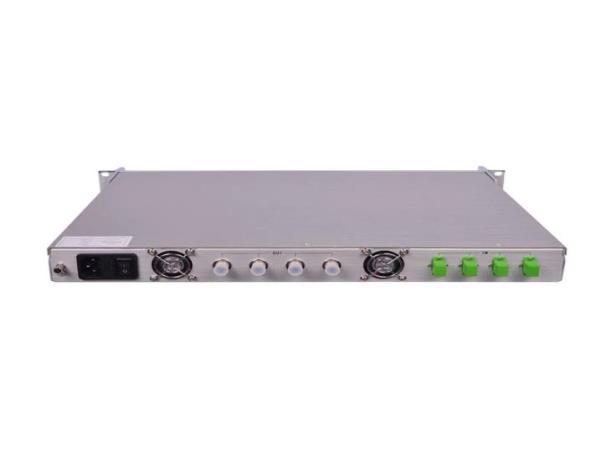

4-way output CATV Return optical receiver is built in 4-output independent return receiver modules (Philips module). For its easy use and high performance, it has used at large and middle-size city network.
Features
Each module of this FTTH CATV optical receiver receives and amplifies module independently. It adopts E-O PIN and PHILIPS push-pull amplify module with high index and good C/N.
Performance
Optic feature
Receive optic power
Wavelength nm 1310~1600
Typical application dB ≤-10
Optic- lackage alarming
≤-10
Return loss dB ≥55
Optical connector FC/APCor SC/APC
RF feature
Work bandwidth
Output level
Flatness
Output level adjustable
Return loss
Output impedance
Link feature
Test channel PAL-D/59CH
CNR
receive)
≥52(10km fiber,-1dBm receive)
CTB dB ≤-67
CSO
General feature
≤-62
Power supply v 90~265AC or -48vDC selectable
Power consume w ≤50 single power work
Work temperature
-5~65 machine temp, control automatically Storage
Trade Capacity
Our Customers includes trade agents, cable operators, telecommunication operators, Internet service provider and distributors all over the world. Most of our products are exported to South America, Southern-East Asia, Europe, and North Africa.
