Wholesale 16 Ports EDFA Optical Amplifier for FTTH FTTx Networks with Low Noise and High Power
Looking for a reliable solution to enhance your FTTH or FTTx network performance? The 16 Ports EDFA Optical Amplifier delivers low noise, high power, and multi-port functionality, making it an ideal choice for network integration. Featuring Er Yb co-doped fiber technology and built-in CWDM wavelength division multiplexer, it reduces equipment complexity while improving system reliability. With a total optical output power of up to 5W and a noise figure of <5dB, this amplifier ensures stable and efficient signal transmission. Perfect for CATV, PON, and FTTH applications, it offers a cost-effective and scalable solution for modern optical networks.
• Er Yb co-doped fiber technology | • 4-16 optional output ports | • Total output power up to 5W | • Low noise figure <5dB | • Built-in CWDM multiplexer
16 ports EDFA Optical Amplifier is a low noise, high performance, FTTP high power, multi-ports optical amplifier
16 ports EDFA Optical Amplifier
I. Product Overview
16 Ports EDFA Optical Amplifier is a low noise high-performance Er Yb co-doped fiber amplifier. Each output built-in CWDM (1310/1490/1550) wavelength division multiplexer. Conveniently multiplex the data streamof OLT and ONU to thefiber amplifier output by 1310nm and 1490nm optical connector. Thus reduced the equipment quantity, improved the systemindexes and reliability. It is the ideal equipment for FTTx network, provides a flexible and low cost solution for the integration of three networks and the FTTH.
Characteristics of 16 Ports EDFA Optical Amplifier
1, Adopts Er Yb Codoped double-clad fiber technology;
2, Output ports: 4-16 optional;
3, Optical output power: total output up to 5W;
4, Low noise figure: <5dB when input is 0dBm;
5, Perfect network management interface, in line with standard SNMP network management;
6, Intelligent temperature control system make the power consumption lower;

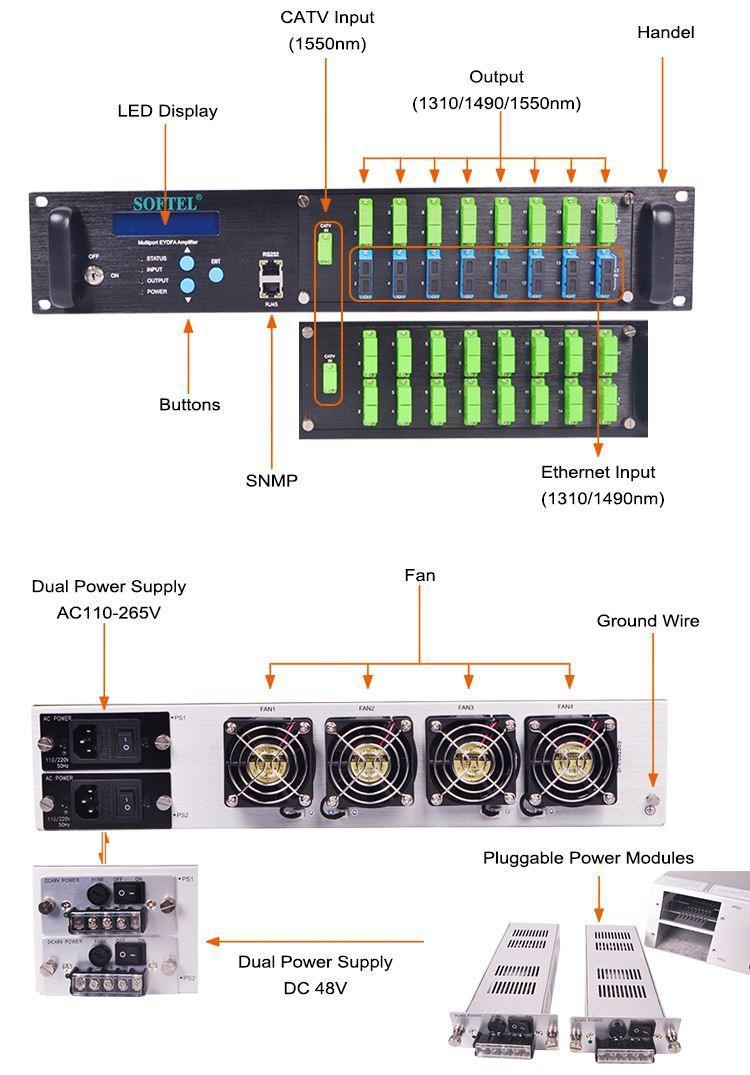

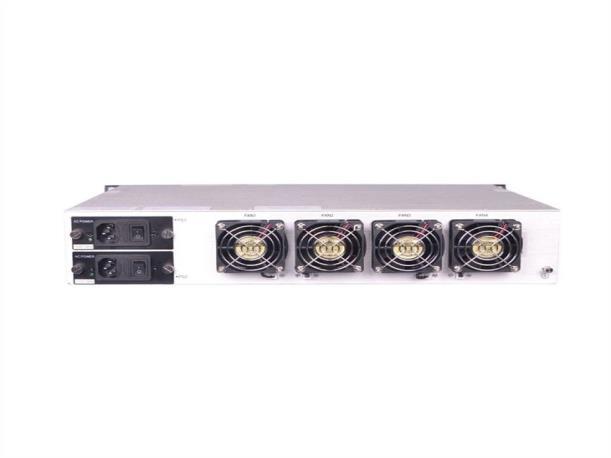

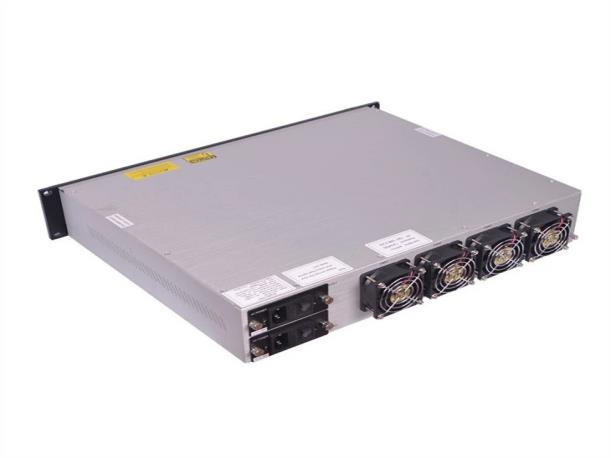

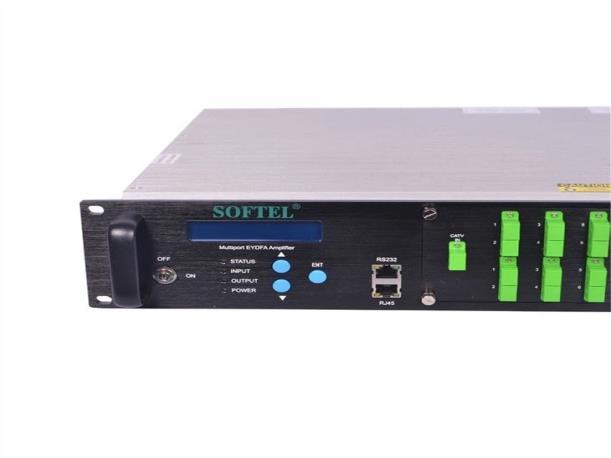

Detailed image of 16 ports EDFA Optical Amplifier
C/N
dB ≥ 50
C/CTB
dB ≥ 63
C/CSO dB ≥ 63
Power supply voltage V A: AC160V - 250V(50 Hz); B: DC48V
Consumption W ≤ 70
Operating temperature range
Maximum operating relative humidity
Storage temperature range
Maximum storage relative humidity
-10 - +42
Max 95% no condensation
483(L)× 440(W)× 88(H)
Other products such as optical transmitter, olt, edfa, fiber optic node, onu and etc.
Test condition according to GT/T 184-2002.
