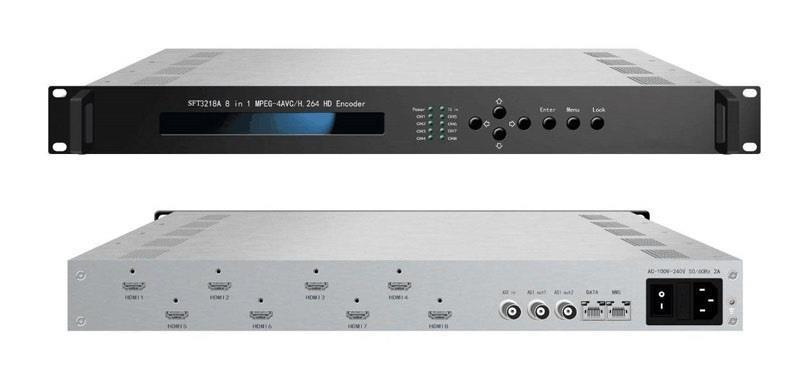

Manufactory Wholesale 8-in-1 H.264 HDMI to IP Encoder with ASI Input for HD Video Multiplexing
Need a reliable solution for HD video encoding and multiplexing? The SOFTEL SFT3218A 8-in-1 H.264 HDMI to IP Encoder is designed for professional applications, supporting 8 HDMI/SDI inputs and 1 ASI input for seamless re-muxing. With H.264/AVC video encoding, MPEG1 Layer 2 audio encoding, and support for 720P, 1080I, 1080P formats, this device ensures high-quality video transmission. Ideal for broadcasting, live streaming, and IPTV, it offers MPTS/SPTS over UDP/RTP, real-time bit-rate monitoring, and network management via SNMP.
• 8 HDMI/SDI inputs | • H.264/AVC encoding | • MPTS/SPTS over UDP/RTP | •
Real-time bit-rate monitoring | • SNMP network management
It is equipped with 8 HDMI (or SDI) channels input supporting MPEG-4 AVC/H.264 high profile code format & main profile code format, and also 1 ASI input for re-mux.
TheSOFTELSFT3218A8-in-1 H.264 hdmitoipencoder is our newestprofessionalHDaudio&videoencodingand multiplexing device with powerful functionality. It is equipped with 8 HDMI (or SDI) channels input supporting MPEG-4 AVC/H.264 high profile code format & main profile code format, and also 1 ASI input for re-mux.
Features
Support 8 HDMI/SDI channels input & 1 ASI Input
Support H.264/AVC video encoding
Support MPEG1 Layer 2 (HE-AAC (V2), LC -AAC optional) audio encoding
Support PSI/SI editing and inserting
Support VBR/CBR video bitrate mode
Support 720P, 1080I, 1080P HD video format
Support ASI output MPTS or 8 SPTS
Support IP Output MPTS and 8 SPTS over UDP/RTP
Support IP null packet filter
Real-time output bit-rate monitoring
Update device through NMS port
Support LCD / keyboard operating, and network management (SNMP)
Contact:Tomleequan Email：
Specifications of H.264 HDMI to IP Encoder
8 CVBS inputs , BNC interface SFT3208A
8 pairs unbalanced stereo audio input, BNC interface
Input
4 CVBS inputs , BNC interface SFT3204A
4pairs unbalanced stereo audio input, BNC interface
1 ASI stream input, BNC interface
720×480_59.94i, 544×480_59.94i,352×240_59.94i
320×240_59.94i ,176×240_59.94i,160×120_59.94i
Video
Audio
Multiplexing
Stream output
System function
Resolution
720×576_50i ,640×576_50i,352×288_50i
320×288_50i, 176×288_50i, ,176×144_50i
Encoding MPEG-2
Bit-rate
0.8Mbps~19Mbps each channel
Rate Control CBR/VBR
GOP Structure IPPPP, IBPBP, IBBPB, IBBBP
Advanced Pretreatment
De-interlacing, noise reduction, sharpening
Encoding MPEG-1 Layer 2,LC-AAC and AC3
Sampling rate 48KHz
Resolution 24-bit
Bit-rate
32Kbps~384Kbps each channel
1 ASI input multiplexed with local 8(4) channels TS
2-way ASI output, BNC interface
MPTS or 8xSPTS over UDP,10/100Base-T Ethernet interface SFT3208A
MPTS or 4xSPTS over UDP,10/100Base-T Ethernet interface SFT3204A
LCD/keyboard, network management(SNMP/WEB)
Chinese and English language
Ethernet software upgrade
Miscellaneous Dimension(W×L×H) 482mm×410mm×44mm
