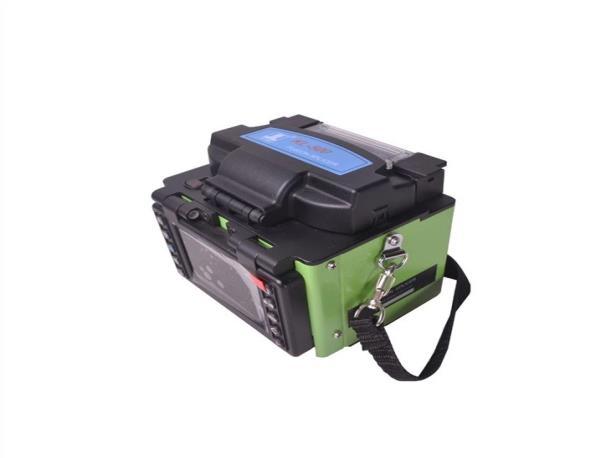

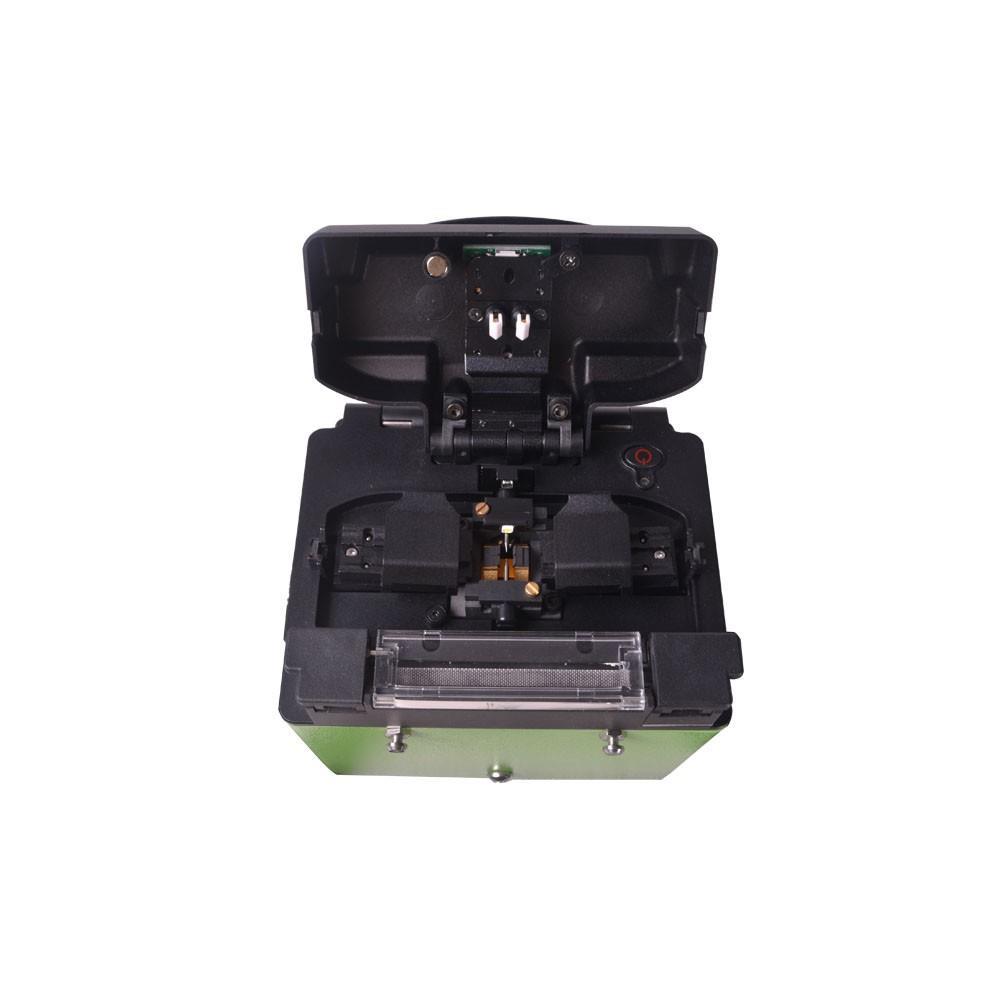

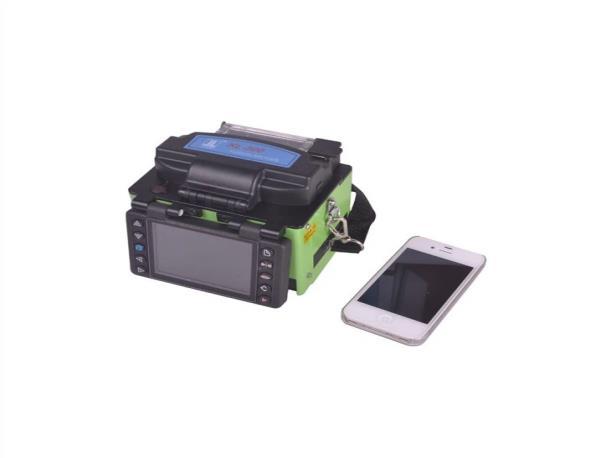

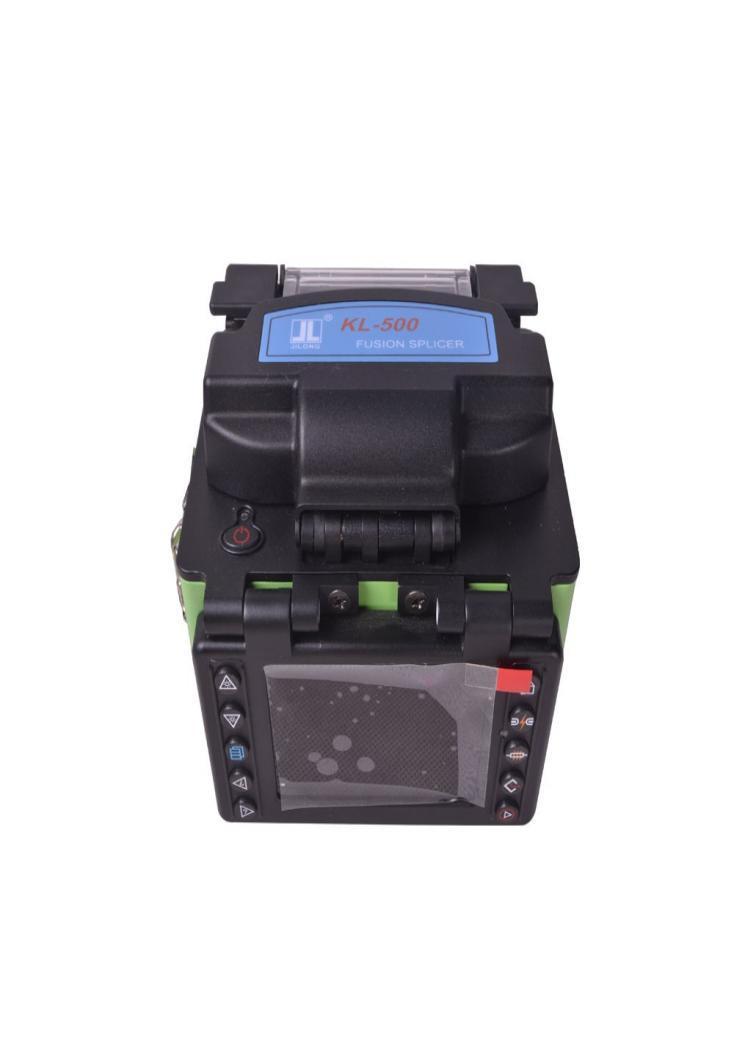

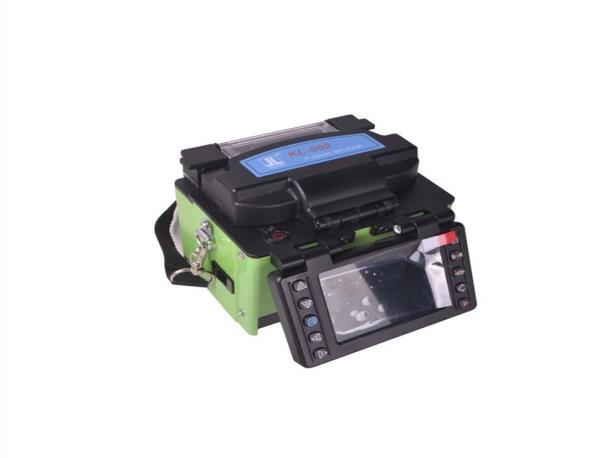

Manufactory Wholesale KL-500 Fiber Optic Splicing Machine for SM MM DS NZDS with 9 Sec Splicing Time
Struggling with inefficient fiber splicing? The KL-500 Fiber Optic Splicing Machine delivers precision and speed, with a typical splicing time of just 9 seconds for standard SM fibers. Designed for SM, MM, DS, and NZDS fibers, it features meticulous core and cladding alignment, ensuring an average splice loss of 0.02dB (SM). Ideal for telecom, data centers, and industrial applications, this machine offers 4000 splice result storage, 200X magnification, and a 300-cycle battery capacity.
• 9-second splicing time | • 0.02dB average splice loss | • 4000 splice result storage | • 200X magnification | • 300-cycle battery capacity
Typical splicing time:Typical 9 sec (standard SM fiber)
Fiber Optic Splicing Machine
Applicable fibers for KL-500 Fiber OpticSplicingMachineis SM，MM，DS，NZDS. The Typicalsplicingtimeis 9 sec.
Specifications
Applicable fibers SM MM DS NZDS
Fiber diameter Cladding diameter:80-150μm;Coating diameter:100-1000μm
Fiber aligning method
Actual average splice loss
Typical splicing time
Meticulous,Core,Clad,Manual
0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS)
Typical 9 sec (standard SM fiber)
Tube typical heating time Typical 30 sec
Storage of splice result 4000 results, 20 parameter per result
Fiber image magnification 200X (X or Y view),50X (X and Y view)
Battery capacity Typical 300 cycles (splice/tube heat with inner Li-battery)
Monitor 3.5 inch TFT color LCD monitor
Power supply AC 100-240V with AC adapter inner Li-battery (5200mAH)
Dimension 25mm(L)×105mm(W)×113mm(H)
Fiber cleaved length 8-16mm (Coating diameter:250μm)
Fiber count Single
Return loss >60dB
Splicing mode Auto Calibrate Normal Special
Splicing program 53 (templet), 40(user)
Protection sleeve length 60mm, 40mm
Tube heating program 9 (templet),24(user)
Tension test 2N
Electrode life 2500
Terminal USB
Operating condition
0-5000m above sea level, -10-50° Max wind velocity of 15m/s
Weight 1.55Kg including battery
Contact:Tomleequan
Function Comparision of Fiber Optic Splicing Machine
Splicing mode (Auto, Calibrate ,Normal ,Special)
