Manufactory Wholesale WDM Satellite TV Receiver
SRS2030AW for FTTH Networks with 47-2150MHz Frequency
Range
Looking for a reliable solution for seamless satellite TV reception in FTTH networks?
The WDM Satellite TV Receiver SRS2030AW is designed to deliver exceptional performance with its wide operating frequency range of 47-2150MHz and built-in AGC function. Featuring excellent linearity, flatness, and ultra-low noise technology, this receiver ensures high-quality signal transmission. Ideal for residential and commercial applications, it supports single-mode fiber with high return loss and offers easy installation. With a compact design and advanced GaAs amplifier technology, the SRS2030AW is your go-to choice for efficient satellite TV reception.
• Wide frequency range: 47-2150MHz | • Built-in AGC function | • Ultra-low noise technology | • Compact design & easy installation | • Single-mode fiber support
1. Designed for FTTH(Fiber To The Home) networks
2. Wide operating frequency range:47-2150MHz
3. Excellent linearity and flatness

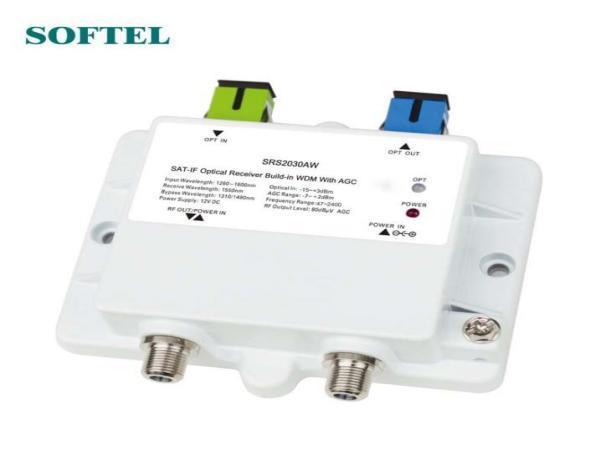

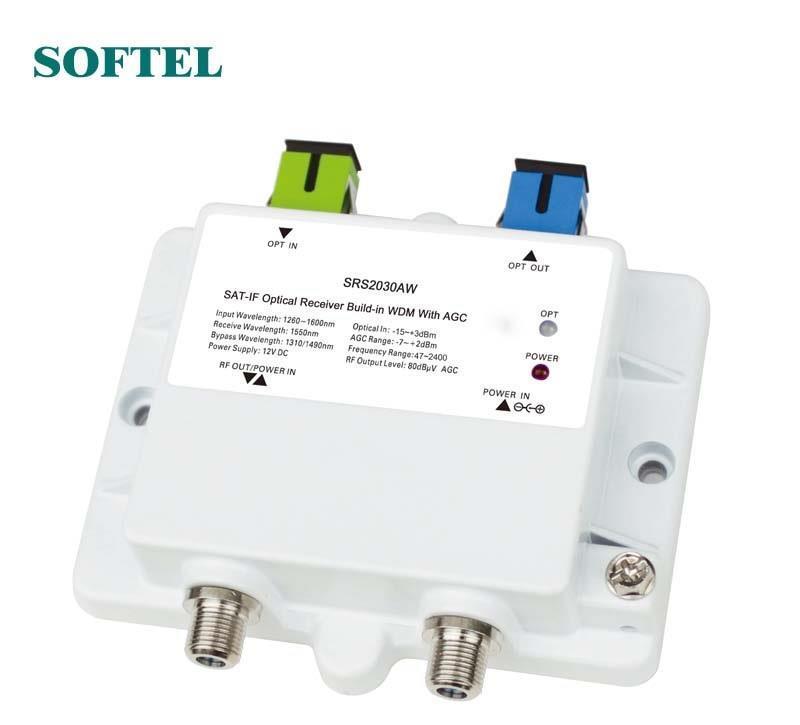

SRS2030AW is a WDM satellite tv receiver with build-in AGC function.
1. Designed for FTTH(Fiber To The Home) networks
2. Wide operating frequency range:47-2150MHz
3. Excellent linearity and flatness
4. Wide range of optical input power
5. Single-mode fiber high return loss
6. Using GaAs amplifier active devices
7. Ultra low noise technology
8. Smaller size and easier installation
9. Red-LED for power indication
10. Double color LED for optical power indication (Non-lighted:optical power<-15dBm, Green:-15dBm+3dBm)
11. Build-in WDM,1310nm/1490nm Optical Bypass Port to ONU
Specifications of WDM Satellite TV Receiver
RF Connector / F-female
Input Optical
Connector / SC/APC or FC/APC
Output Optical
Connector / SC/UPC or FC/UPC
Bypass Wavelength nm 1310/1490 Optical Fiber Type Single Mode
