Manufactory Wholesale FTTH CATV Fiber Optic Satellite
Transmitter SST-13F for 47-2150MHz Frequency Range
Looking for a reliable solution for satellite optical systems? The FTTH CATV Fiber Optic Satellite Transmitter SST-13F delivers exceptional performance with a compact design and easy installation. Featuring a 47-2150MHz operating frequency range, DFB coaxial laser, and 1-core single-mode fiber, it ensures excellent linearity, flatness, and high return loss. Ideal for CATV and satellite applications, it supports up to 64 optical nodes without an amplifier. With 1550nm optical wavelength and 6mW output power, this transmitter is a robust choice for seamless signal distribution.
Red & Green LED indicators | Compact design & easy installation | 47-2150MHz frequency range | • Supports 64 optical nodes | • DFB coaxial laser & single-mode fiber
1.Red-LED for power indication, Green-LED for optical power indication
2.Smaller size and easier installation
3.Excellent Linearity and flatness

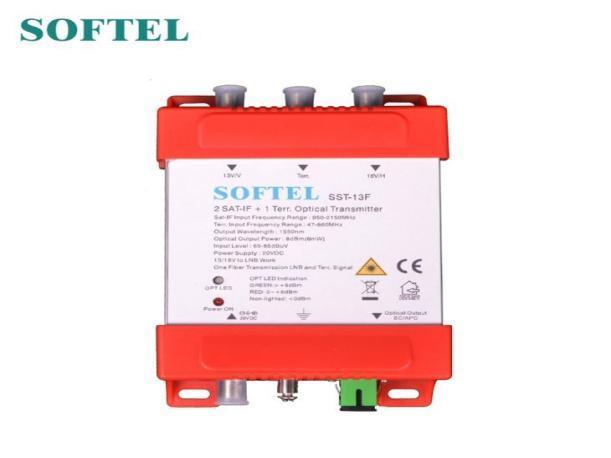

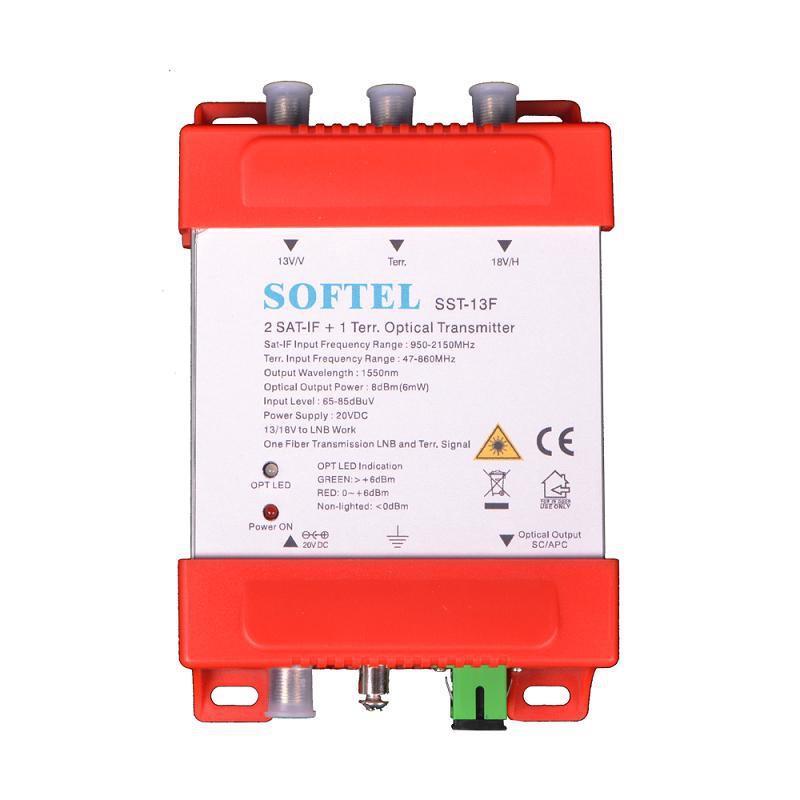

FTTH catv fiber opticsatellite transmitter SST-13Fis designed for SatelliteOpticalSystem. The operatingfrequency range is 47-2150MHz.
Features
1.Red-LED for power indication, Green-LED for optical power indication
2.Smaller size and easier installation
3.Excellent Linearity and flatness
4.Using 1-core Single-mode fiber ,high return loss
5.Using DFB coaxial small package laser
6.Outputs 13/18V to LNB V/H working, 5V to Terr.(optional)
7.A distribution of up to 64 optical nodes is possible without optical fiber amplifier
Specifications of FTTH Catv Fiber Optic Satellite Transmitter
Item SST-13F
RF Connector F-female
Optical Connector SC/APC
Power Supply Connector F-female
Output Optical Wavelength 1550nm(1310nm optional)
Output Optical Power 6mW(+8dBm)
Input Impedance 75Ω
Terr. Frequency Range 47-860MHz
SAT-IF Frequency Range 950-2150MHz
