Manufactory
Wholesale Smart TV Box Android with
HDMI2.0 for Customizable Software and Hardware
Looking for a versatile and high-performance media solution? The Smart TV Box Android delivers seamless 4K H.265 video playback with HDMI2.0 support, powered by the Amlogic S905W Quad-core CPU and Mali-450 GPU. Ideal for home entertainment, hotels, and digital signage, it offers customizable software (boot logo, UI launcher, OTA updates) and hardware (logo printing, case design). With 1GB RAM, 8GB ROM, and dual USB ports, this device ensures smooth operation and expandable storage.
• 4K H.265 video playback | • Customizable software & hardware | • Amlogic S905W Quad-core CPU | • HDMI2.0 & dual USB ports | • Ideal for home, hotels, digital signage

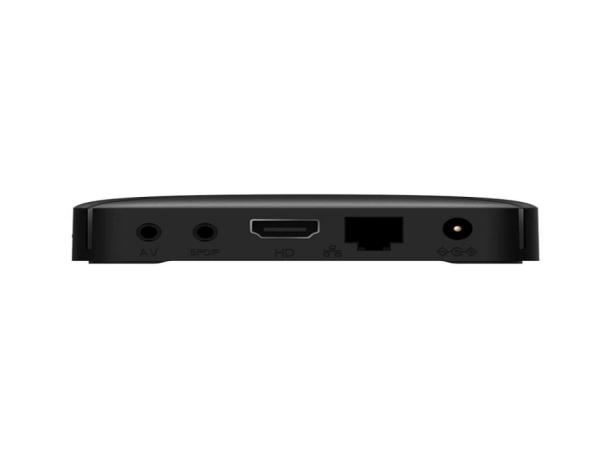

This HDMI Android TV Box has 1 AV OUT,2 USB ,1 IR Receiver,1 RJ45 and 1 TF CARD.

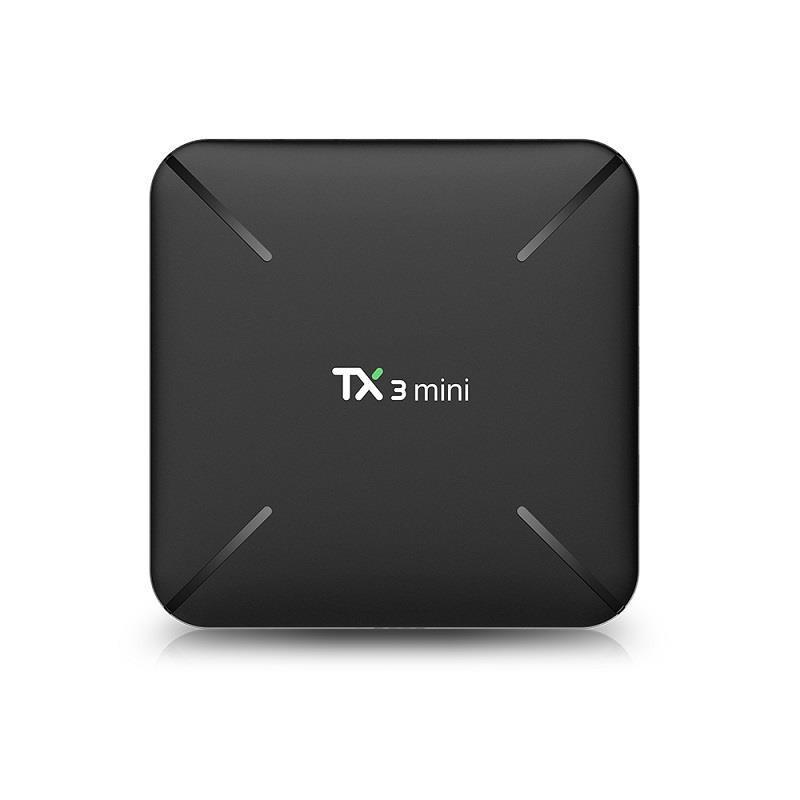

Smart TV Box Android
Main Features
OS: Android 7.1
CPU: Amlogic S905W up to 2.0 GHz, Quad core ARM Cor tex-A53
GPU: Mali-450 penta-core, up to 750MHz+(DVFS)
RAM: 1GB ROM: 8GB
Product usage of Smart TV Box Android
1. Support Customize Software
boot logo
boot animation
pre-install apk
boot APK
customize UI launcher
customize setting
ota update
2. Support Customize Hardware
logo printing on tv box
logo printing on remote
customize package box
customize user manual
case design
pabc layout
accessories customize
Parameters of Smart TV Box Android
Hardware
CPU Amlogic S905W up to 1.2 GHz, Quad core ARM Cortex-A53
GPU Penta Core Mali-450 750MHz
SDRAM 1GB/2GB
EMMC Flash 16GB
Wifi
802.1.1 b/g/n 802.1.1 b/g/n 2.4G
SPDIF Coaxial(Optical)
Interface
HDMI Out
HDMI2.0 to support maximum 4Kx2K display
USB Port 2 High speed USB 2.0,support U DISK and USB HDD
Card Reader
TF Card reader
Data Output SPDIF
AV Out
AV(3 in 1) port
Lan RJ45 10M/100M
Power Supply
Software
Operation System
DC Jack 5V/2A
Android 7.1
KODI Kodi 17.3
Decoder Formats
4K,H.265,MPEG1/2/4,H.264, HD
AVC/VC-1,RM/RMVB,Xvid/DivX3/4/5/6 ,RealVideo8/9/10
Video Formats 4K@60fps, H.265, AVI, H.264, VC-1, MPEG-2, MPEG-4, DIVD/DIVX, Real8/9/10, RM,RMVB, PMP, FLV, MP4, M4V, VOB, WMV, 3GP, MKV
Music format
Photo format
DLNA
Language
MP1, MP2, MP3, WMA, OGG, AAC, M4A, FLAC, APE, AMR, RA, WAV
JPEG/BMP/GIF/PNG/TIFF
DLNA files sharing
English/French/German/Spanish/Italian etc. 24 languages
Contact:Tomleequan Email：sales@fmuser.com whatsapp: +8613922702227
Network Functions Skype chatting,Picasa,Youtube,Flicker,Facebook,Online movies,etc.
Others :
Operationg Temperature -10~40℃
Storage Temperature -20~50℃
Humidity environment 5%-90%(No condensation）
