Manufactory Wholesale SRXG-2020AW 10G Fiber Optic CATV
Receiver for FTTH EPON GPON XG-PON Networks
Looking to optimize your FTTH network with minimal power consumption? The SRXG-2020AW 10G Fiber Optic CATV Receiver is a high-performance, cost-effective solution designed for triple-play applications. With an operating bandwidth of 47~1000MHz, it ensures excellent flatness (FL≤±0.75dB) and extra-low noise (CNR ≥ 45.3dB). Ideal for EPON, GPON, and XG-PON networks, this receiver significantly reduces optical power resources and network configuration costs, making it perfect for CATV FTTH and integrated three-network systems.
• Extra-low noise (CNR ≥ 45.3dB) | • Wide dynamic receiving range (Pin=-16, MER≥ 36.1dB) | • Metal case for device protection | • Low power consumption, high performance | • Ideal for CATV FTTH and triple-play networks

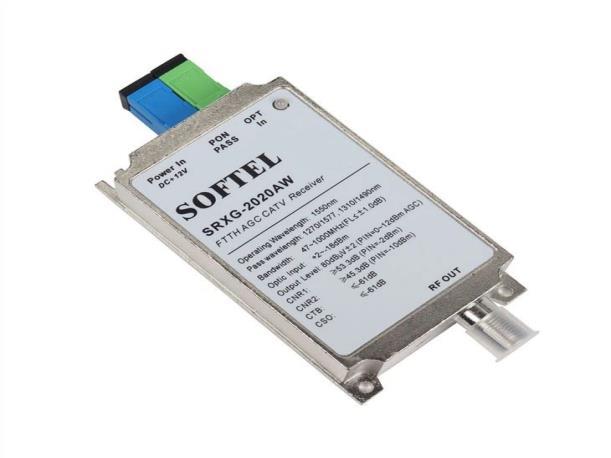

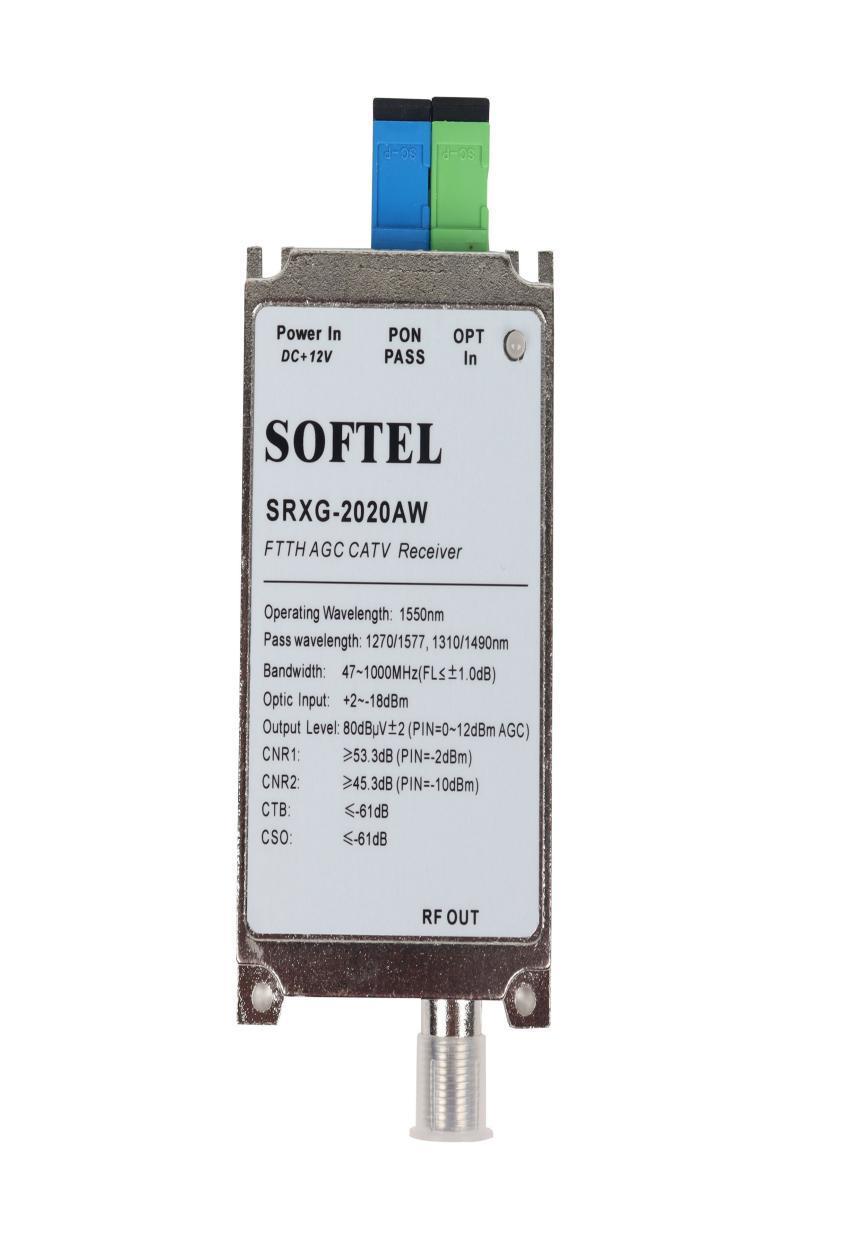

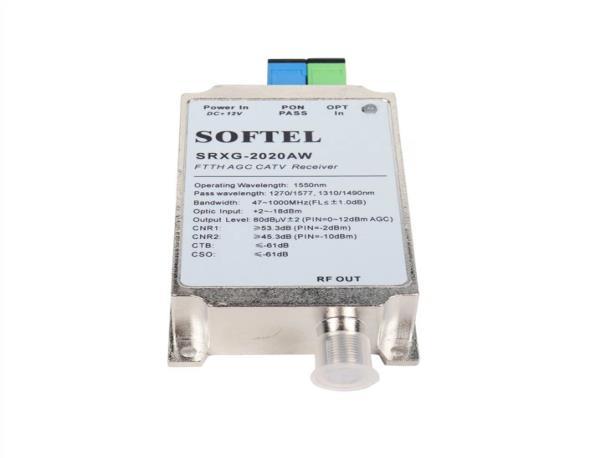

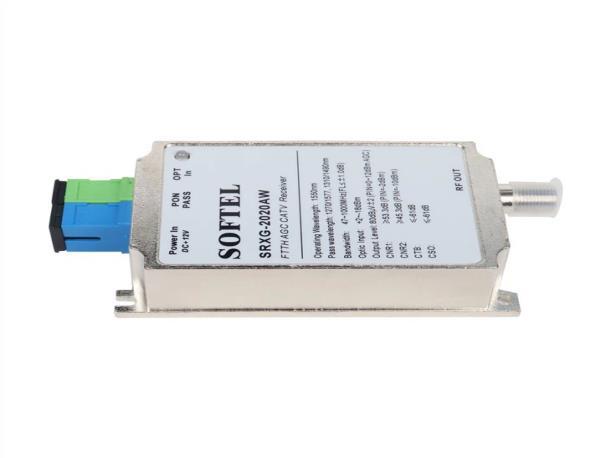

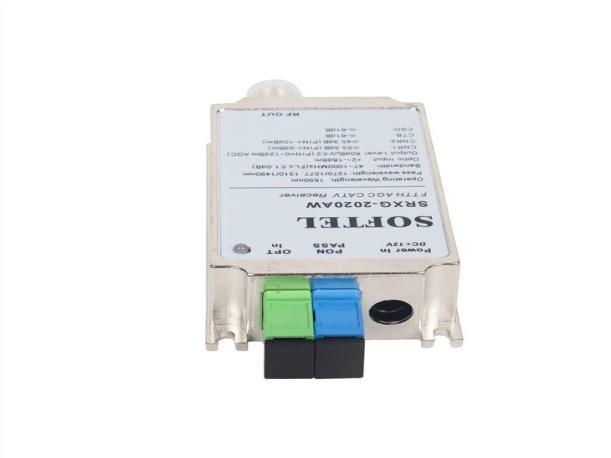

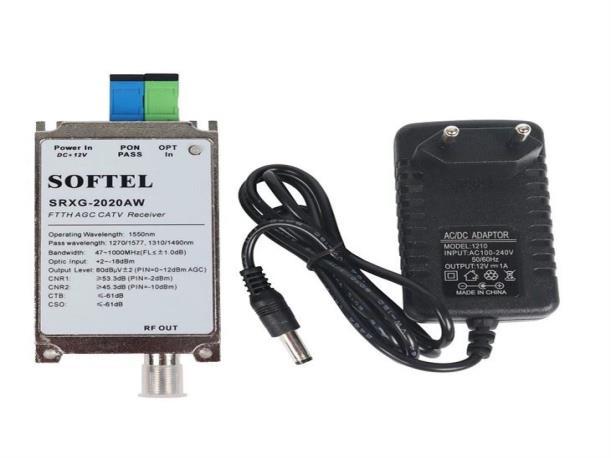

SRXG-2020AW, is 10G fiber optic catv receiver. The operating bandwidth of 47~1000MHz, is a low power, high performance, cost-effective triple play, FTTH CATV optical receiver, Whether used in analog television or digital television.
Triple play, fiber to the home, using the SRXG-2020AW 10G fiber optic catv receiver can save a lot of optical fiber amplifier power resources. For operators, network construction costs can be gratly reduced.
Feature of 10G fiber optic catv receiver
1. Extra-low noise(3.8% modulate, -10dBm receive, CNR ≥ 45.3dB)
2. Wide dynamic receiving optical power range: within Pin=-16, MER≥36.1dB
3. Applicable EPON, GPON, XG-PON FTTH network
4. Significant saving in optical power resource, greatly reducing network configuration cost
5. Within 47~1000MHz bandwidth, all with excellent flatness feature ( FL≤±0.75dB )
6. Metal case, for safe protection of opto-sensitive devices
7. High output level for a wide range of users
8. Low power consume, high performance, high cost performance

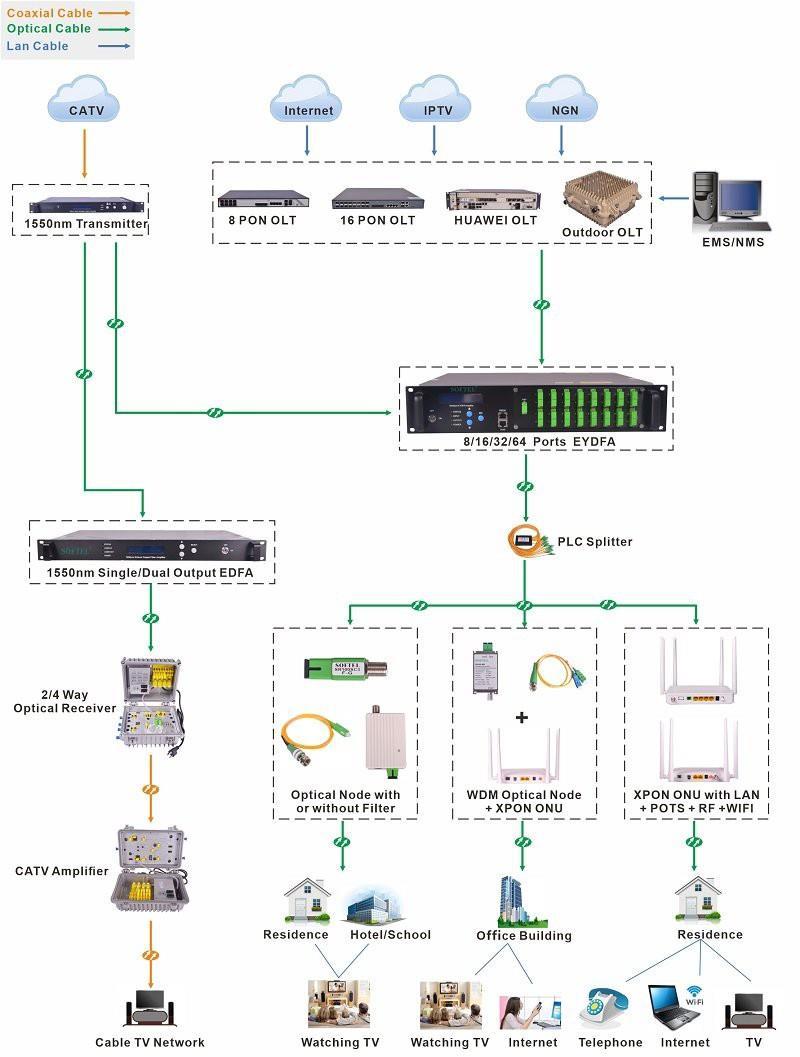

Main Application
1. CATV FTTH
2. Integration of three network
3. FTTH EPON, GPON, XG-PON
