Manufactory Wholesale XGS-PON FTTH Active Fiber Optic
Node SRXG-2020AW for CATV Networks
Looking for a reliable and cost-effective solution for your FTTH CATV network? The XGS-PON FTTH Active Fiber Optic Node SRXG-2020AW delivers exceptional performance with its low power consumption, wide dynamic range (+2 dBm to -21 dBm), and high output level (>78 dBμV). Designed for both analog and digital television systems, it features extra-low noise (CNR ≥ 45.3dB) and excellent flatness (≤±0.75dB) across a 47~1000MHz bandwidth. Ideal for EPON, GPON, and XG-PON networks, this node optimizes optical power resources, reducing network configuration costs.
• Wide dynamic range: +2 dBm to -21 dBm | • Extra-low noise: CNR ≥ 45.3dB | • High output level: >78 dBμV | • Low power consumption: ≤3W | • Compatible with EPON, GPON, XG-PON

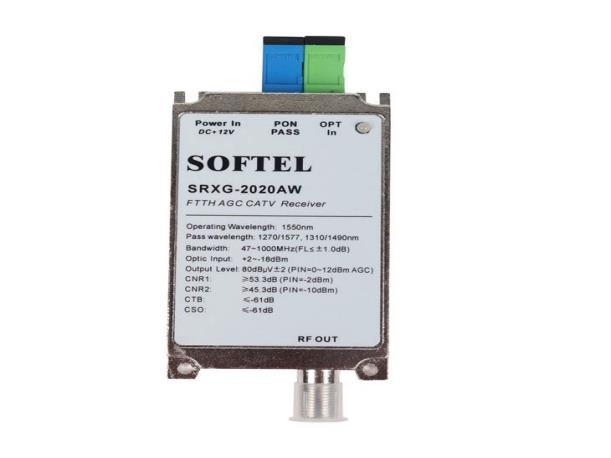

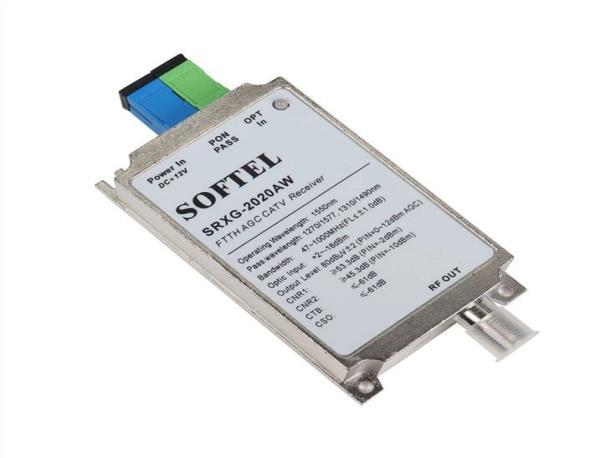

XGS-PON FTTH Active Fiber Optic Node SRXG-2020AW, with a operating bandwidth of 47~1000MHz, is a low power, high performance and cost-effective triple play FTTH CATV optical receiver, Whether being used in analog television or digital television system. Receiving at high optical power can be adjusted by PAD level, played limiting output, so SRXG-2020AW within a large dynamic range of the received optical power of +2 dBm ~-21dBm, have excellent characteristics.
Features
1. Extra-low noise(3.8% modulate, -10dBm receive, CNR ≥ 45.3dB)
2. Wide dynamic receiving optical power range: within Pin=-16, MER≥36.1dB
3. Apply for EPON, GPON, XG-PON FTTH network
4. This XGS-PON FTTH Active Fiber Optic Node can save a large of optic power resource so that it can greatly reduce the network configuration cost.
5. Within 47~1000MHz bandwidth, all with excellent flatness feature ( FL≤±0.75dB )
6. Low power consume, high performance, high cost performance
7. High output level, can be used by many users
Parameters of XGS-PON FTTH Active Fiber Optic Node
Performanc e Index
Optic Feature
Supplem ent
CATV Work wavelength (nm) 1540~1563
Pass wavelength (nm) 1270/1577 1310/ 1490 Channel Isolation (dB) ≥40 1550nm &1490nm
Receiving power (dBm) +2~-18
Analog TV (CNR> 45dB) +2~-20
Digital TV (MER> 30dB)
Optical return los s (dB) ≥55
Optical fiber conn SC/APC
Contact:Tomleequan Email：sales@fmuser.com whatsapp: +8613922702227
ector
RF Feature Work
Output
Return
Output
General Feature
Temp (℃) -20 ~ +55 Storage Temp (℃) -40 ~ 85
Work relative tem p (%) 5 ~ 95

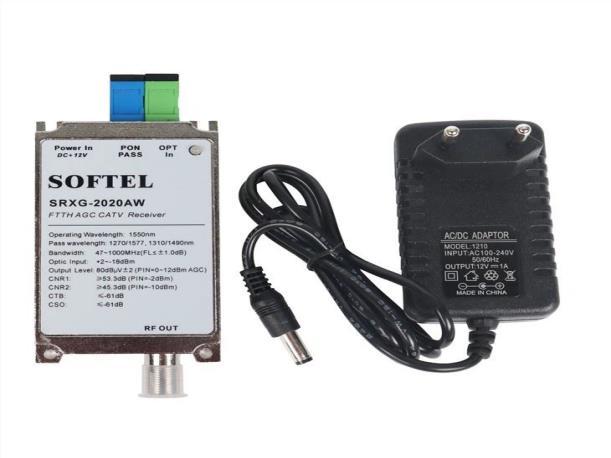

1. The power adapter for this XGS-PON FTTH Active Fiber Optic Node: Input 110/220V, output DC 12V(0.6A).
2. Keep the optical connector clean, the bad link will cause too low RF output level.
3. Should not adjust by themselves, to avoid the device damage.
The advantages of FTTH are mainly:
1. it is a passive network, from the central office to the user, the middle can basically be passive;
2. second, its bandwidth is relatively wide, and the long distance is just in line with the large-scale use of operators;
3. third, because it is a business carried on optical fibers, there is no problem;
