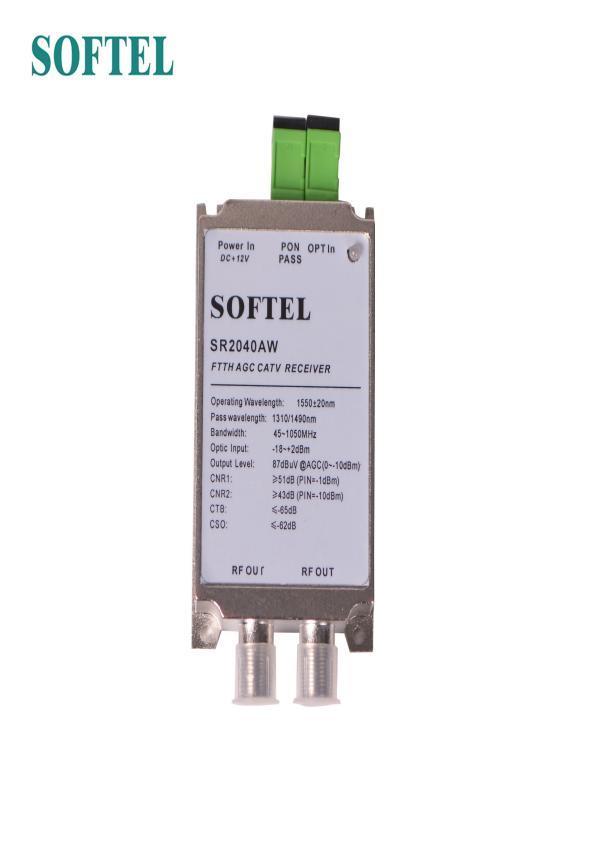

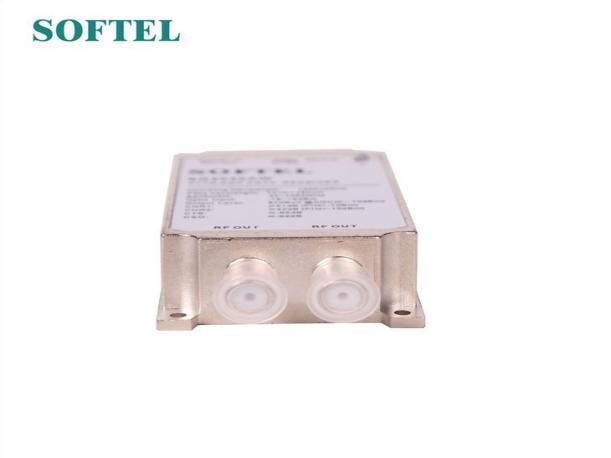

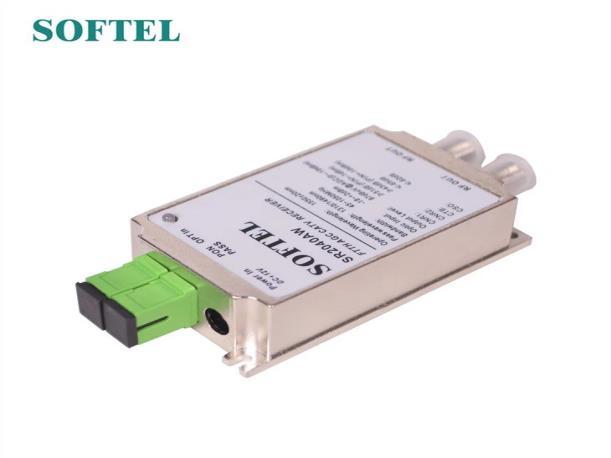

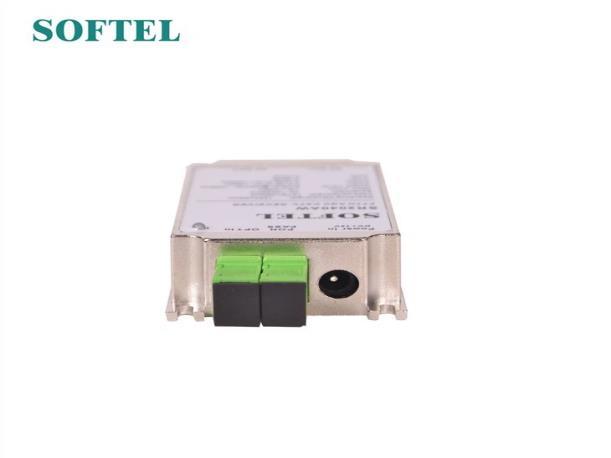

Manufactory Wholesale FTTH 2 Outputs AGC WDM Node
SR2040AW for CATV FTTH PON Networks
Looking for a reliable and high-performance FTTH CATV optical receiver? The FTTH 2 Outputs AGC WDM Node (SR2040AW) delivers exceptional performance with a wide operating bandwidth of 47~1000MHz and a dynamic optical power range of +2 dBm to -18 dBm. Designed for CATV FTTH, PON, and triple-play networks, it features extra-low noise, excellent flatness (≤±1dB), and compatibility with GPON/EPON technologies. With a high output level of 87±2 dBμV and low power consumption, this device ensures cost-effective, scalable network solutions.
• Wide dynamic optical power range (+2 dBm to -18 dBm) | • Excellent flatness (≤±1dB)
|
• GPON/EPON compatibility | • High output level (87±2 dBμV) | • Low power consumption (≤3W)
FFTH 2 Outputs AGC WDM Node
Production Introduction
Ftth 2 Ouputs AGC WDM node(SR2040AW), the operating bandwidth of 47~1000MHz, is a low power, high performance,FTTH CATV optical receiver.
SR2040AW within a large dynamic range of the received optical power of +2 dBm ~-18dBm, have excellent characteristics.
Features
1. Extra-low noise
2. Wide dynamic receiving optical power range: within Pin=-16, MER≥36dB
3. Applicable GPON, EPON, compatible with FTTx PON technology
4. Greatly reduce the network configuration cost
5. Within 47~1000MHz bandwidth, all with excellent flatness feature ( FL≤±1dB )
6. Metal case, offer safeguard for optoelectronic sensitive devices
7. High output level, can be used by many users
8. Low power consume, high performance, high cost performance
Application
1. CATV FTTH
2. Integration of three network
3. FTTH PON
Specifications
