Manufactory Wholesale FTTH Micro Node SR1000AF with
Filter and AGC for CATV End-Users
Looking for a compact and efficient solution for FTTH CATV networks? The FTTH Micro Node SR1000AF delivers high performance with a bandwidth of 47~1000MHz, making it ideal for both analog and digital television. Featuring a high-sensitivity optical receiver tube and low noise matching circuit, it operates within a dynamic range of +2 dBm to -21 dBm, ensuring reliable signal reception. Designed for FTTH applications, this micro node reduces power consumption and network deployment costs, making it a cost-effective choice for operators.
• Compact size, easy installation | • High sensitivity & low noise | • Dynamic range: +2 dBm to -21 dBm | • SC/APC optical connector | • Ideal for CATV end-users
ftth micro node with filter and agc, Smaller size and easier install
Ftth micro node
Product Description

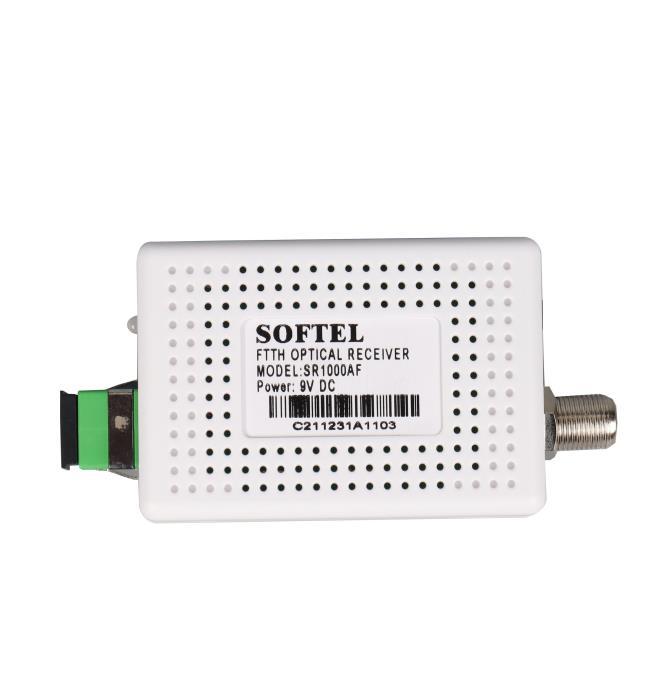

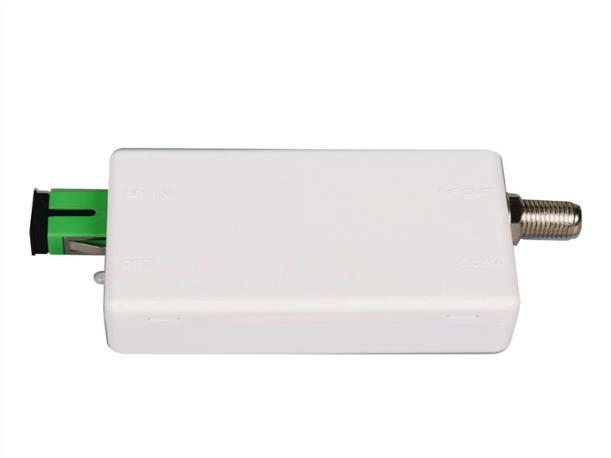

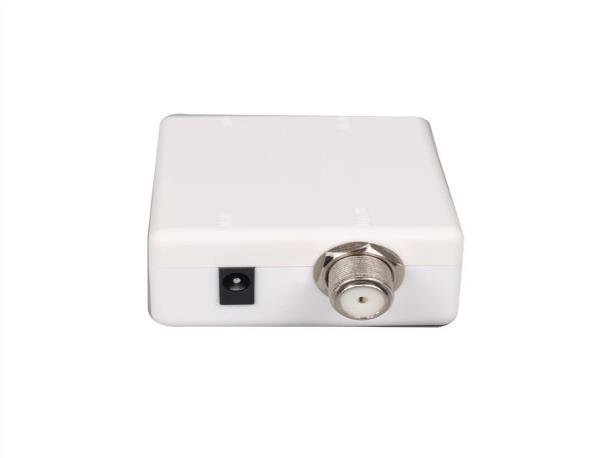

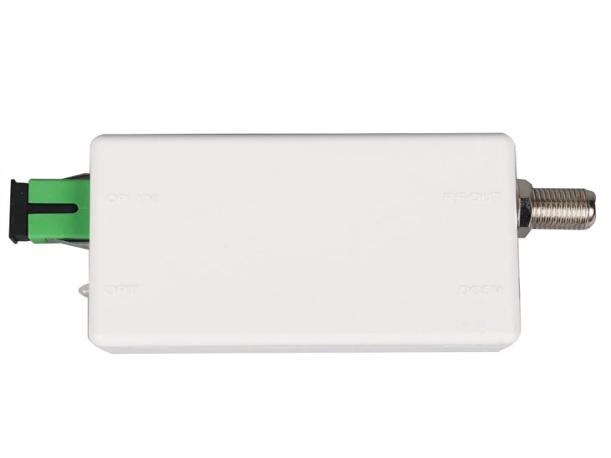

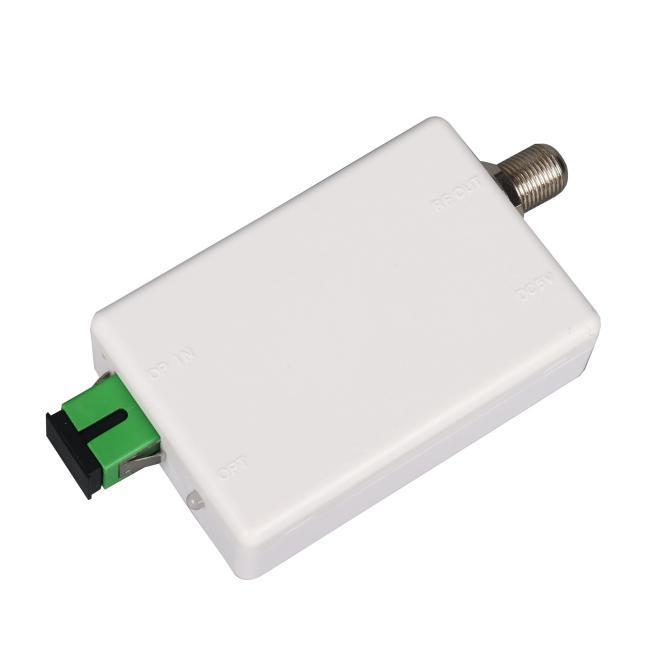

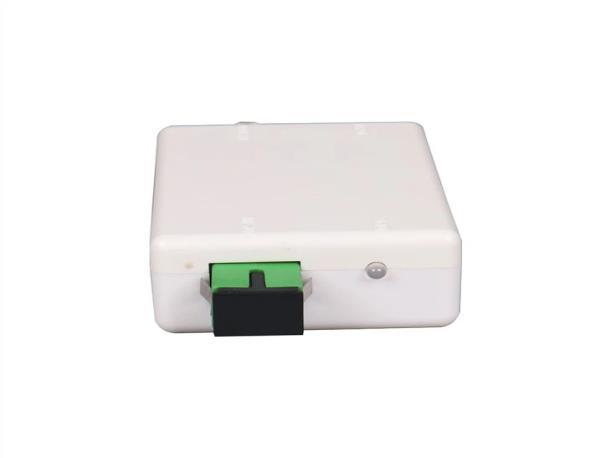

Ftth micro node (SR1000AF) the operating bandwidth of 47~1000MHz, is a low power, high performance, cost-effective triple play, FTTH CATV optical receiver, Whether used in analog television or digital television.
This ftth micro node with high sensitivity optical receiver tube and special low noise matching circuit. Receiving at high optical power can be adjusted by PAD level, played limiting output, so SR1000AF within a large dynamic range of the received optical power of +2 dBm ~-21dBm, have excellent characteristics. Triple play, fiber to the home, using the ftth micro node( SR1000AF )can save a lot of optical fiber amplifier power resources. For operators, it can greatly reduce the cost of building the network.
1. Model Number: SR1000AF; Brand: 2. Designed For FTTH(Fiber To The Home) 3. Excellent Linearity and flatness 4. Frequency range 40-1000MHz For CATV End-users
5. Voltage supply: +9V(DC)
6. Optical Connector: SC/APC
7. excellent heat dissipation performance
8. Smaller size and easier install
9. Red-LED Power Indication 10. Green-LED Optical Power Indication(Optical power >-10dBm Parameters
