Manufactory Wholesale 2 RF Outputs WDM Optical Fibre
Node for FTTH PON and CATV Applications
Looking for a reliable and cost-effective solution for FTTH and CATV networks? The 2 RF Outputs WDM Optical Fibre Node is a compact, high-performance indoor optical receiver designed for FTTP/FTTH applications. With integrated WDM technology, it supports 1550nm video signals and 1490nm/1310nm data signals on a single fiber, ensuring seamless connectivity for ONT devices. Featuring AGC, a wide optical power input range of -18 to +2dBm, and an output level of ≥75dBuV, this device is ideal for MSOs and PON systems.
• 1 GHz operating bandwidth | • WDM integration for multi-signal transmission | • Compact design for indoor use | • Wide optical power input range | • Ideal for FTTH, CATV, and PON systems

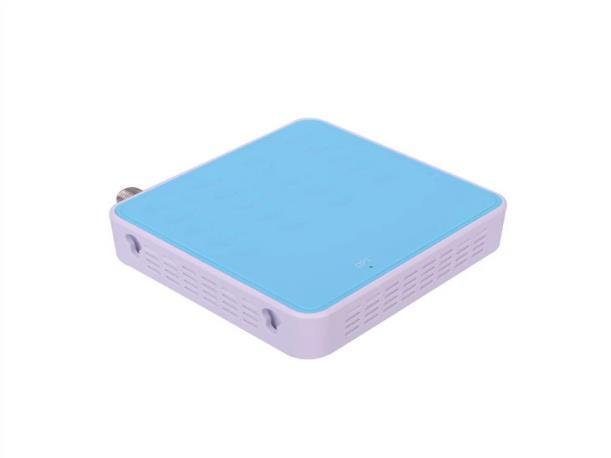

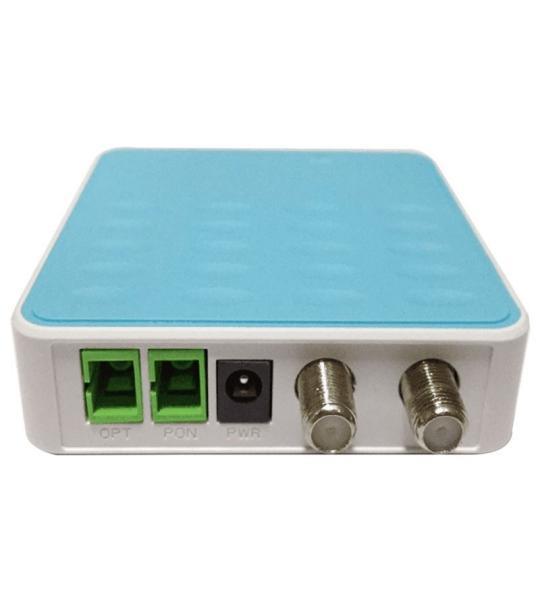

FTTH SR202AW Optical Receiver with WDM is a mini indoor optical receiver that especially design for FTTP/FTTH application.
2 RF Outputs WDM Optical Fibre Node
FTTH SR202AW Optical Receiver is a 2 RF Outputs WDM Optical Fibre Node. This mini indoor optical receiver with AGC is especially design for FTTP/FTTH application. With high performance, low receiver optical power and lower cost, it is the best selection for MSO. WDM is integrated for 1550nm video signal and 1490nm /1310nm data signal in one fiber. It
reflects 1490nm/1310nm for connecting ONT device. They are very suitable for PON and TV system.
Features
1 GHz operating bandwidth
Lower input optical range:+2 ~-18dBm
Output level is greater than 75dBuV (@-15dBm power input);
Wide optical power input range -18~+2dBm;
Applications
CATV FTTH 2. Integration of three network 3. FTTH PON
FTTH technology uses fiber optic cables as the transmission channel to realize the integration of telecommunications resources, the Internet, television and other network signals, and to realize the basic needs of the people for information. Optical fiber has many advantages in the transmission process.
(1) The construction cost of FTTH is relatively low.
(2) FTTH is a passive network, which helps reduce electricity costs.
(3) The low failure rate of FTTH reduces the cost of daily maintenance.
Contact:Tomleequan Email：sales@fmuser.com whatsapp: +8613922702227
(4) The protocol supported by FTTH is relatively flexible and can realize a variety of services, such as VOD and bi-directional transmission.
(5) FTTH can meet the requirements of big data transmission and improve the overall operation effect.
Specifications of 2 RF Outputs WDM Optical Fibre Node
Environmental Parameters
Working Temperature -25～65 ℃
Storage Temperature -40～70 ℃
Storage Humidity ≤95 ％

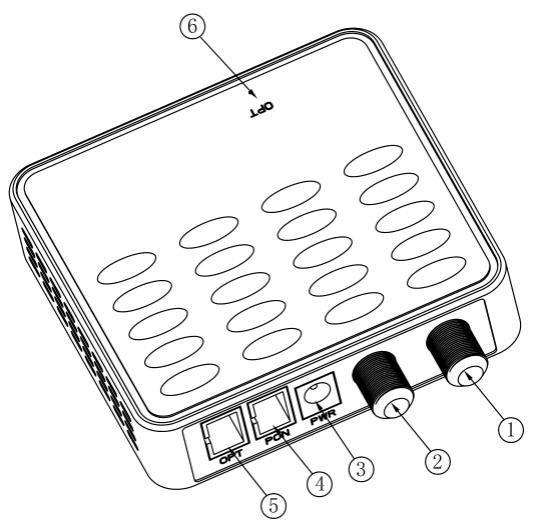

User Interface
Connector Type
Power supply
RF Output
SC/APC in SC/PC out
DC5V/0.5 A
Metric or imperia
External adapter
Optional Single port or two ports
Optical Indicator Two color lights Red: <-16dBm Green: >--16dBm
Housing
90*85*25 m m
Weight 0.15 kg
