Manufactory Wholesale FTTH 2 Ports CATV Optical Receiver with AGC & WDM for Fiber to the Home Networks
Looking for a reliable solution for FTTH networks? The FTTH 2 Ports CATV Optical Receiver (SR4020W) combines advanced AGC control and WDM technology to deliver consistent performance. With a fully automatic AGC range of -7 to -15dBm, it ensures stable output levels and maintains CTB and CSO integrity. Designed for home-based optical access, this receiver features a gallium arsenide low-noise amplifier, 40,000+ hours of trouble-free operation, and compatibility with AC100~240V power. Ideal for FTTH networks, it supports 40~862MHz bandwidth and dual RF output ports.
• Fully automatic AGC control | • Gallium arsenide low-noise amplifier | • 40,000+
hours of reliability | • Dual RF output ports | • Compatible with AC100~240V
ftth 2 ports catv Optical Receiver with AGC & WDM. ftth 2 ports catv Optical Receiver
Prodcut Display

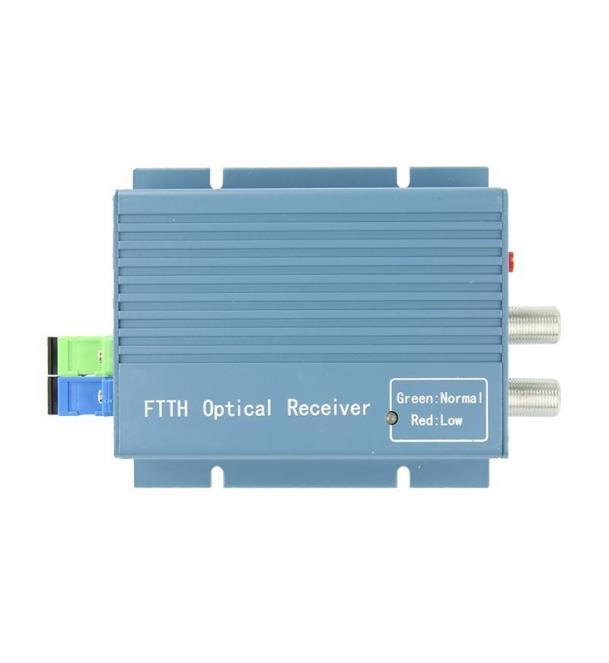

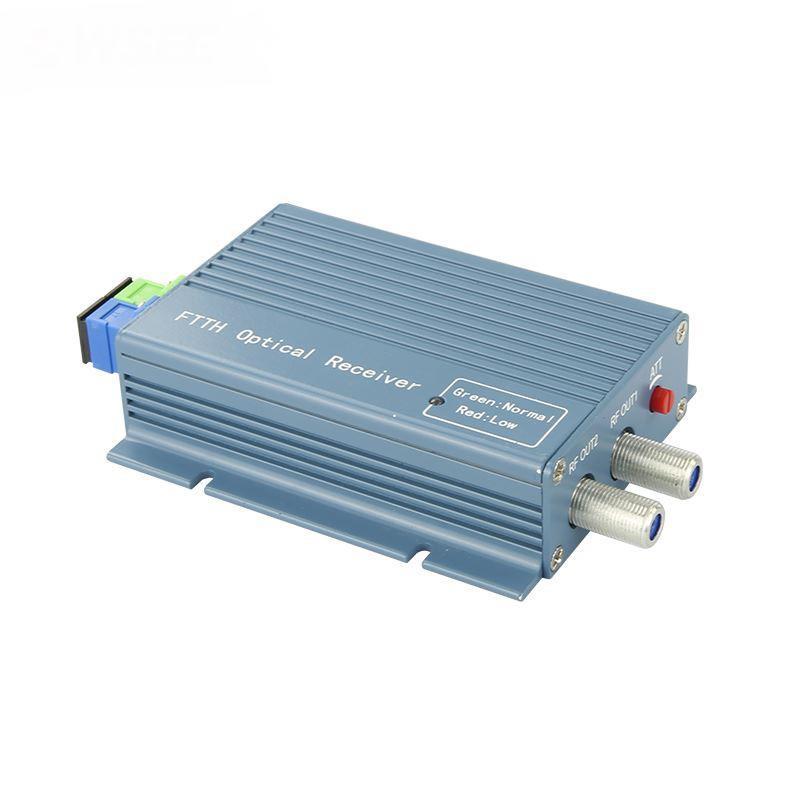

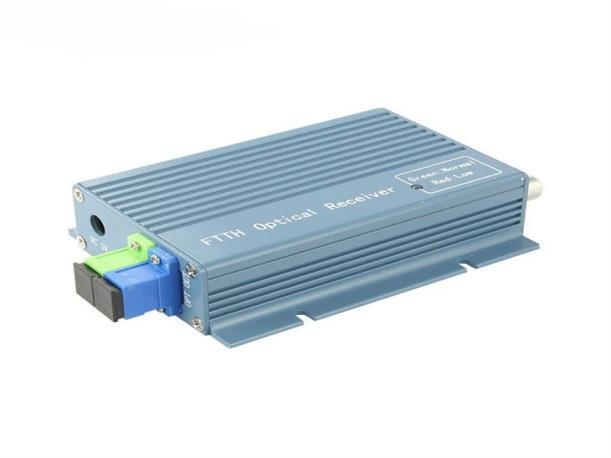

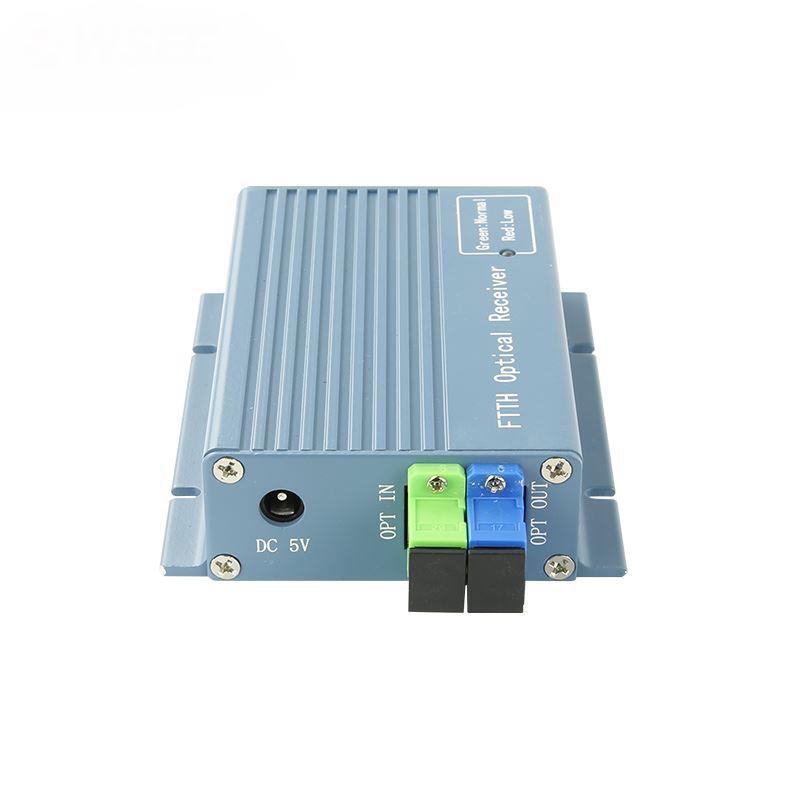

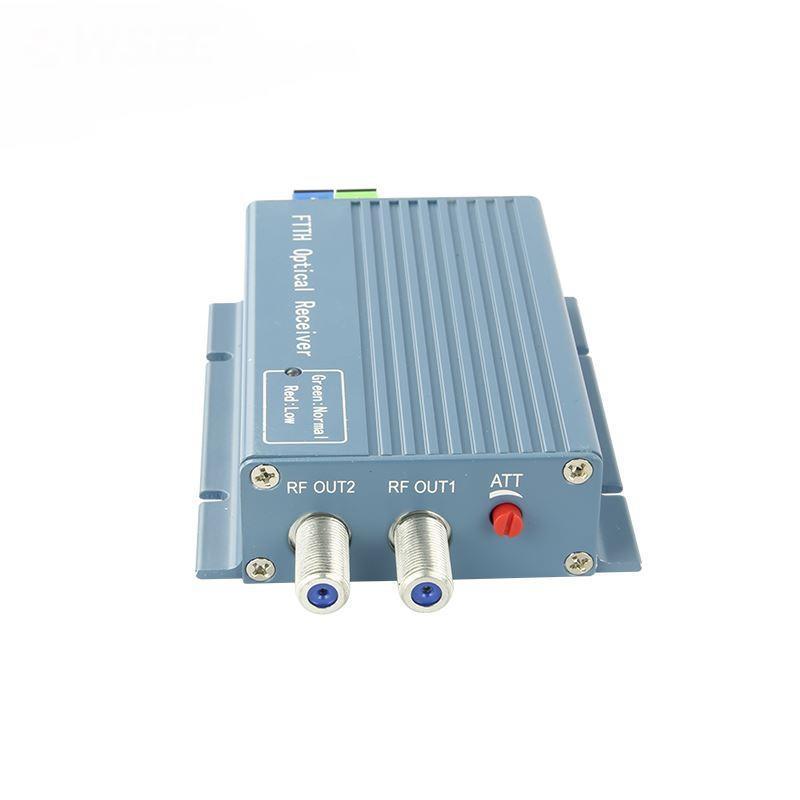

The ftth 2 ports catv Optical Receiver(SR4020W) is CATV FTTH AGC wdm mini optical receiver, 2 output ports fiber optical receiver is home-based optical receiver catering to the ultimate goal of development of optical access and suitable for FTTH(fiber to the home) optical fiber network users access to the end.
Features
1. Fully automatic optical AGC control, input optical power -7～-15dBm output level unchanged, CTB, CSO basically unchanged.
2. RF channel full gallium arsenide low noise amplifier device.
3. Reliability: The average trouble-free working time is higher than 40,000 hours.
4. 220V power supply, using external power supply, easy to maintain.
5. Power Supply: DC 5V / 1A
6. Input voltage: AC100～240V, 50 / 60Hz
7. Radio frequency interface F type metric system and English system are available.
Specifications
Wavelength
1100~1600nm&1550nm&1490 /1310/1550nm
Optical input power
0dBm~-9dBm(analog) 0dBm~-18dBm(digital)
Bandwidth
40~862&1006MHz
Flatness
Output port Motherboard voltage
1&2
AC90~145V&AC1 65V~265V
Output impedance Adaptor voltage
±0.75dB@40~862MHz&1006MHz 75 Ω 8V
AGC control range Rf output loss
CNR(note1)Inner feed voltage -6dBm~-15dBm&0dBm~-9dB m ≥16dB@40~550MHz ≥ 14dB@550~860& 1006MHz ≥51dB 8V
Return loss
Gain range
CTB(note1) Working temperature
>45dB 0~18dB ≥65dB -25℃~+55℃ or customize
Optical connector
FC/APC&SC/APC
Output level
CSO(note1)Consumption
FC/PC&SC/PC >80dBuV(-7dBmtest) ≥62dB 2W
