Manufactory Wholesale 32CH HDMI to Analog Modulator SKD3019 for DVB-T ISDB-T H264 HD Signal Conversion

Are you struggling with signal degradation when converting HDMI to analog for PAL/NTSC systems? The SKD3019 HDMI to Analog Modulator is here to solve your problem. This advanced modulator features dual HDMI 1.4 inputs for seamless 1080P HD signal conversion, ensuring crystal-clear analog output without noise or stripes. Its SAW filter and phase-locked-loop design guarantee precise frequency locking, while double conversion technology delivers superior spurious output suppression. Ideal for broadcasting, hotel TV systems, and educational institutions, the SKD3019 supports 32 channels with an output frequency range of 50~870 MHz and a carrier-to-noise ratio of ≥ 60dB. Certified with UL listing, this modulator is a reliable choice for professional applications.

• Dual HDMI 1.4 inputs for 1080P HD signal conversion

• SAW filter and phase-locked-loop design for precise frequency locking

• Double conversion technology for superior spurious output suppression

• Supports 32 channels with 50~870 MHz output frequency range

• UL listed for professional reliability

The SKD3019 modulator is a frequency agile commercial RF modulator with SAW filter and microprocessor. Unlike traditional analog modulator, it has dual HDMI inputs to take in the 1080P HD signal and outputs an analog signal without noise and or stripes. Any standard HDMI source can be sued, including satellite receivers, Blu-ray and camera.

SKD3019

32 CHs HD to PAL and NTSC Modulator

FEATURES:

1. Two adjacent channels output per module with SAW filters

2. Phase-locked-loop design guarantees precise frequency locking

3. Double conversion provides superior spurious output suppression

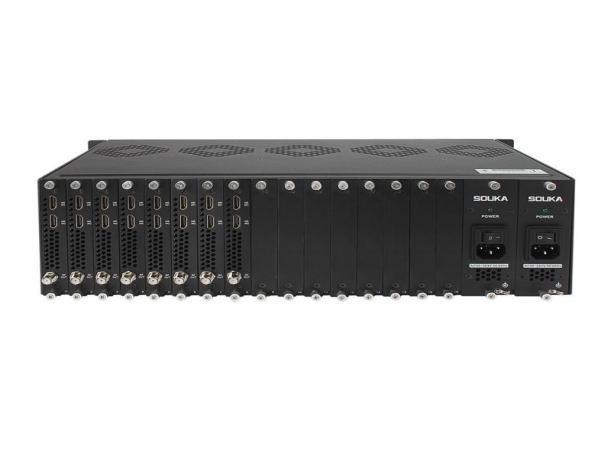

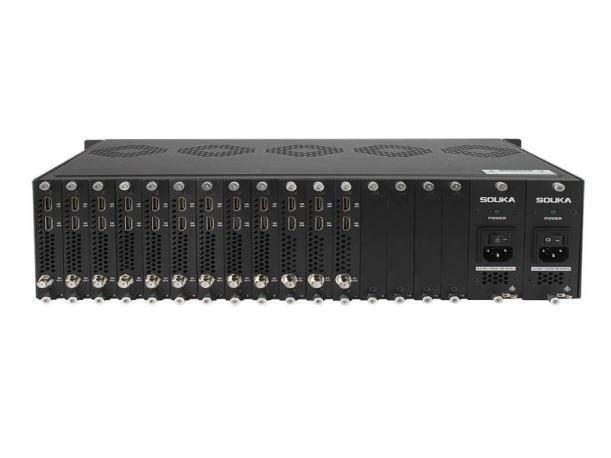

4. Single-slot design allows up to 16 units in SOUKA’s SKD-M3 chassis

5. Set up and upgrade by NMS

SPECIFICATION:

SKD3019 HD to ANALOG MODULATOR

INPUT

Input Connector

Input Resolution

Audio

Output Connector

HDMI 1.4 *2

1920*1080_60P; 1920*1080_50P; 1920*1080_60i; 1920*1080_50i; 1280*720_60P; 1280*720_50P

32K/ 44.1K/ 48KHz

Bitrate 384kbps OUTPUT

75Ω F-Female *1

Output Frequency 50~870 MHz Agile Frequency Stability ±5KHz Output

SKD-M3

CHASSIS

Hot-Swa p Yes Redunda nt Yes

UL Listed Yes Slot 2 slots each piece

Voltage Range 80 ~ 264 VAC Frequenc y Range 47 ~ 63 Hz

Humidity 20 ~ 90% RH
