Wholesale FTP Cat 5e Lan Cable 4P-PE for
High-Speed Network Connectivity
Need reliable and high-performance network cabling? The FTP Cat 5e Lan Cable 4P-PE is designed for superior signal integrity and noise reduction, featuring solid bare copper conductors and AL foil shielding. Compliant with ISO/IEC11801, TIA-568-C.2, and YD/T1019 standards, it ensures stable data transmission up to 100MHz, making it ideal for office networks, data centers, and industrial applications. With a PE jacket and HDPE insulation, it offers durability and flexibility for demanding environments.
• Solid bare copper conductors | • AL foil shielding for noise reduction | • Compliant with ISO/IEC11801, TIA-568-C.2, YD/T1019 | • PE jacket for durability | • Ideal for offices, data centers, and industrial use
This is a FTP 4 Pairs cable.
Cat 5e Lan Cable
Cable Packing Wooden Tray & Carton

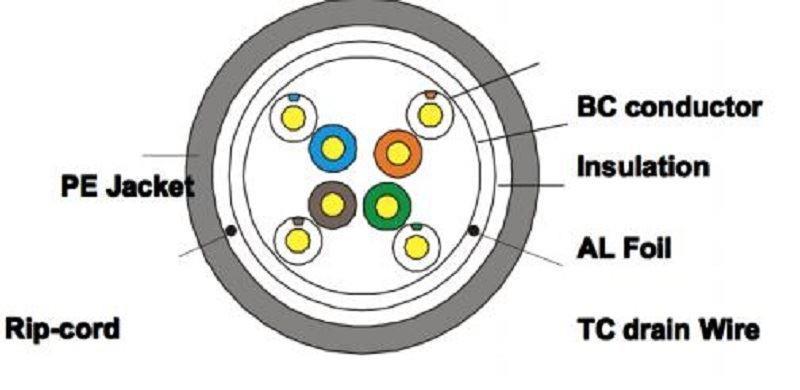

Construction of Cat 5e Lan Cable
Conductor Solid-Bare copper
Conductor Dia.
0.50mm±0. 005
Insulation HDPE
Insulation Dia.
1.0mm±0.0 3
Insulation colors
Blue,White/Blu e Rip Cord yes
Orange,White/ Orange Jacket PE
Green,White/Gr een
Jacket Colo rs Black
Brown,White/Br own
Drain wire 0.45mmTC Shielded AL Foil
Jacket Out Dia.
6.2mm±0. 4mm
Electrical Characteristics
Contact:Tomleequan Email：
Average Thickness 0.55±0.05 mm
Capacitance unbalance(pf/1 00m)max
