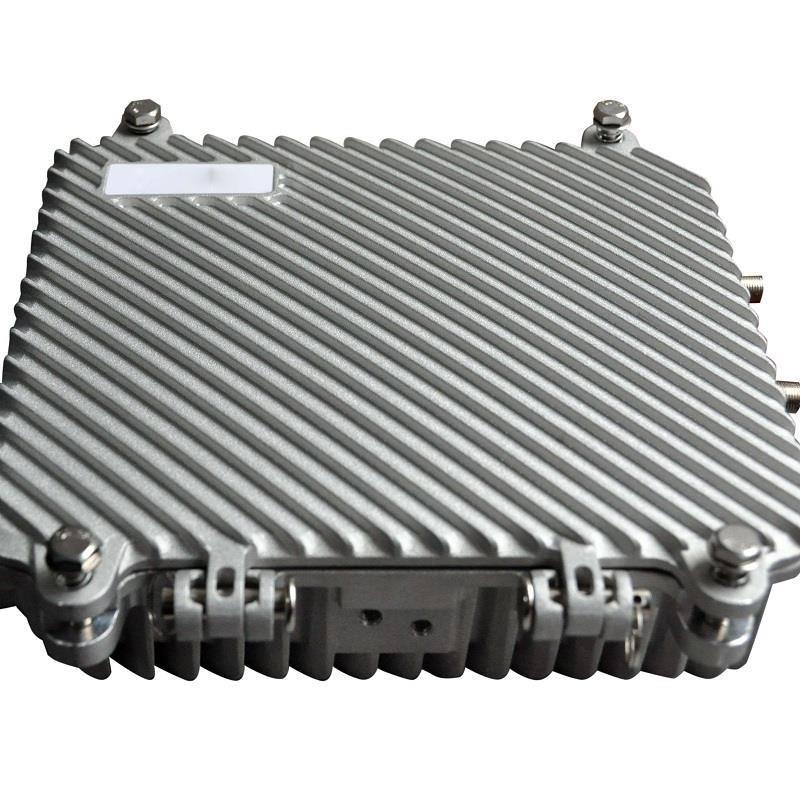

Manufactory Wholesale Outdoor 2 Output Trunk Amplifier for CATV, Digital TV, and Data Transmission
Need reliable bidirectional signal transmission for CATV, digital TV, and data networks? The Outdoor 2 Output Trunk Amplifier delivers exceptional performance with a 1003MHz bandwidth design, GaAs MMIC pre-stage, and high-index power modules for superior output levels, low distortion, and high SNR. Ideal for outdoor installations, it features plug-in duplex filters, equalizers, and attenuators for easy debugging. With a frequency range of 45-1003MHz and a rated output level of up to 108dBμV, this amplifier ensures stable and efficient signal transmission in demanding environments.
• 1003MHz bandwidth design | • GaAs MMIC pre-stage for high SNR | • Plug-in duplex filter for easy debugging | • Rated output level up to 108dBμV | • Ideal for CATV, digital TV, and data networks
It is mainly used for bidirectional trunk transmission of CATV television image signal, digital TV signal, telephone voice signals and data (or compressed data) signal.
SA1100 outdoor 2 output trunk amplifier is mainly used for bidirectional trunk transmission of CATV television image signal, digital TV signal, telephone voice signals and data (or compressed data) signal. Advanced and mature circuits, scientific and reasonable process structures and high quality materials, ensure the excellent performance.
Features
■1003MHz bandwidth design.
■Forward path: The pre-stage adopts GaAs MMIC, output stage adopts the newest imported high index power doubly module, achieve high output level, low distortion and high SNR.
■This outdoor 2 output trunk amplifier is more convenient to debug because of the plug-in duplex filter, equalizer, attenuator, output tap and the scientific and reasonable on-line detection ports.
Specifications of Outdoor 2 Output Trunk Amplifier
Forward Path
Frequency range MHz 45 (87) ~ 862/ 1003 (optional)
Rated gain (@FZ110) dB
30 (the pre-stage adopts low gain MMIC)
38 (the pre-stage adopts high gain MMIC)
Return Path
Rated gain (@FZ110) dB 24(Different modules, different gain. Can be specified by the users.)
Dimension
General Performance
220 (L)* 205 (W)* 65 (H)
Note: The parameters of this manual are measured when adopting imported NEC module. Use other module, the indexes will be a little different. Attention when use!
