Manufactory Wholesale Magnetic Saturation Barostat Power
Supply with High Efficiency and Outdoor Durability
Need a reliable power solution for harsh environments? The Magnetic Saturation Barostat Power Supply delivers fully regulated, clean AC power with advanced protection features like lightning surge and short-circuit protection. Designed for outdoor applications, it features a powder-coated aluminum enclosure, pole & wall mount options, and a durable LED indicator. With efficiency ≥90% and operating temperatures from -40° C to 55°C, it’s ideal for telecom, broadcasting, and industrial systems.
• Fully regulated AC power | • Lightning surge & short-circuit protection | • Powder-coated outdoor enclosure | • Efficiency ≥90% | • Operating temperature -40°C to 55°C
Fully regulated, clean and reliable output AC power Input and output protection, lightning surge protection
Current limited output and short-circuit protection
Automatic restart upon removal of short
SOFTEL magnetic saturation barostat power supply, with high frequency, two way power output and built-in power inserter, can save one power inserter and relative connect assembly that will improve the reliability.
Features of magnetic saturation barostat power supply

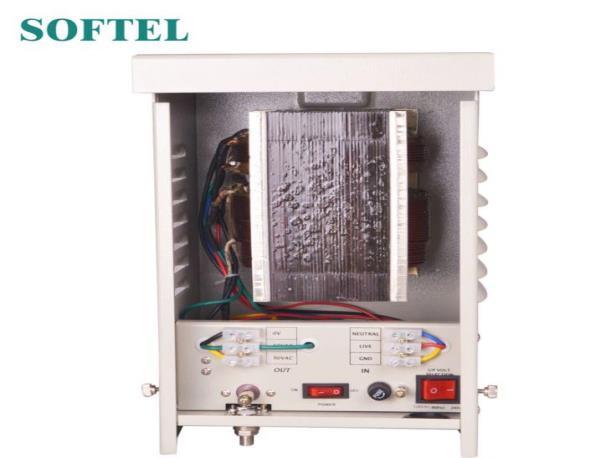

Constant voltage ferroresonant transformer
Fully regulated, clean and reliable output AC power
Input and output protection, lightning surge protection
Current limited output and short-circuit protection
Automatic restart upon removal of short
Field optional output voltages

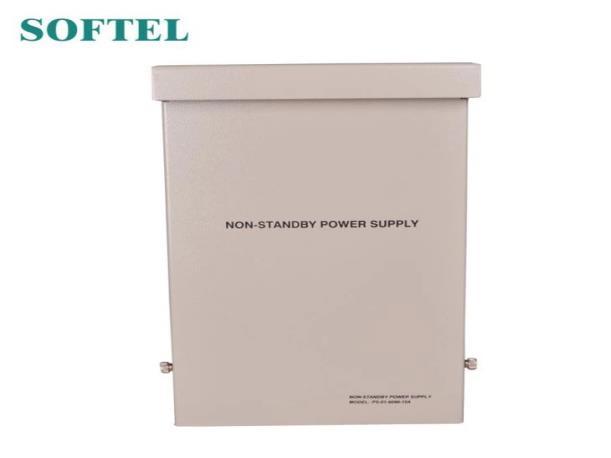

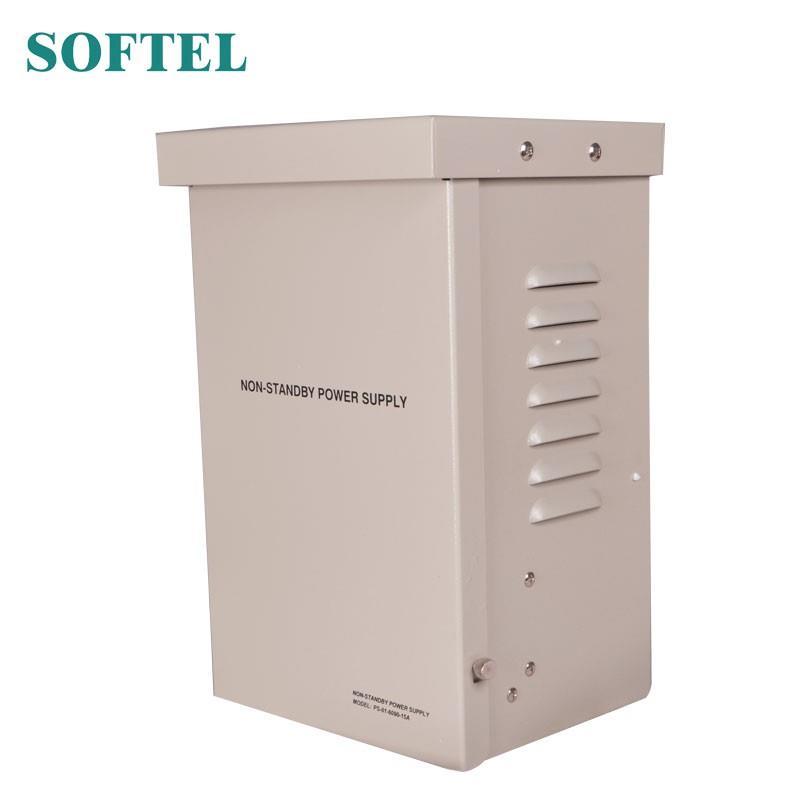

Powder coated enclosure for outdoor applications

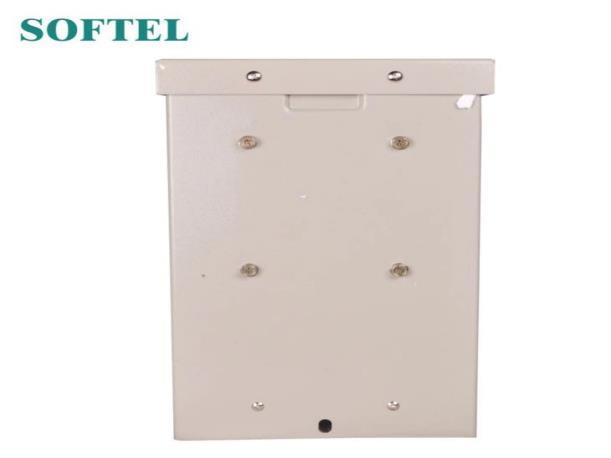

Pole & wall mount installations
5/8” female output connection
Durable LED indicator
Optional Time Delay Relay (TDR)
General specifications
Input Voltage Range -20% to 15%
Output
Waveform
Quasi-square wave Protection
Current limited
Input connection
Output connections
Mechanical
Terminal block (3-pin)
5/8” female or terminal block
Finish Power coated Material Aluminum
PS-0160-8A-W: 310x188x174mm 12.2”x7.4”x6.9”
Environmental
Dimensions
Optional features TDR( Time delay relay)
Other models: 335x217x190mm 13.2”x8.5”x7.5”
-40°C to 55°C / -40°F to 131°F
to 95% non-condensing
Typical 10 seconds
