Manufactory Wholesale Micro Optical Receiver Node
SR1010AF Series for CATV FTTH with 40-1002MHz Bandwidth
Looking for a reliable solution for CATV FTTH and FTTX applications? The Micro Optical Receiver Node SR1010AF Series delivers exceptional performance with a 40-1002MHz bandwidth, high linearity, and low distortion. Featuring an excellent low-light amplifier, gain adjustment unit, and an industrial 8-bit control unit, this device ensures seamless integration and optimal RF output performance. Ideal for CATV FTTH, three-network integration, and FTTH PON, it supports a wide optical input range of 2 to -20dBm at 1550nm and offers flexible installation with power supply on the line.
• 40-1002MHz bandwidth | • High linearity & low distortion | • Wide optical input range (2 to -20dBm) | • Compact & flexible installation | • Ideal for CATV FTTH, FTTX, and PON applications
Model SR1010AF Series provides 40-1002MHz bandwidth, excellentlow-lightamplifier and gain adjustment unit, industrial 8-bit control unit, convenient interface and application for terminal customers.
Micro optical receiver node
Brief Introduction ofSR1010AF
Model SR1010AF Series provides 40-1002MHz bandwidth, Excellent low-light amplifier and gain adjustment unit, industrial 8-bit control unit , convenient interface and application for terminal customers.

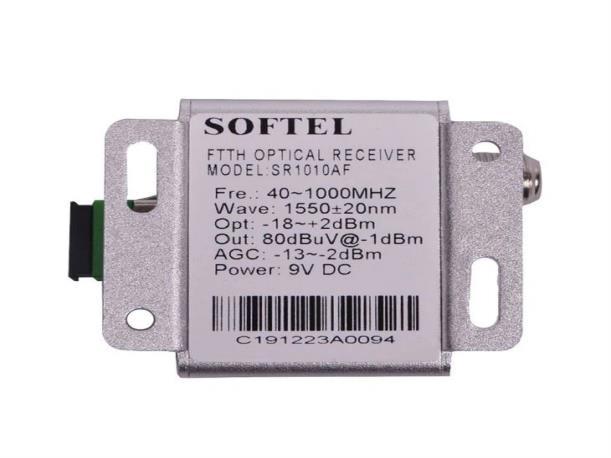

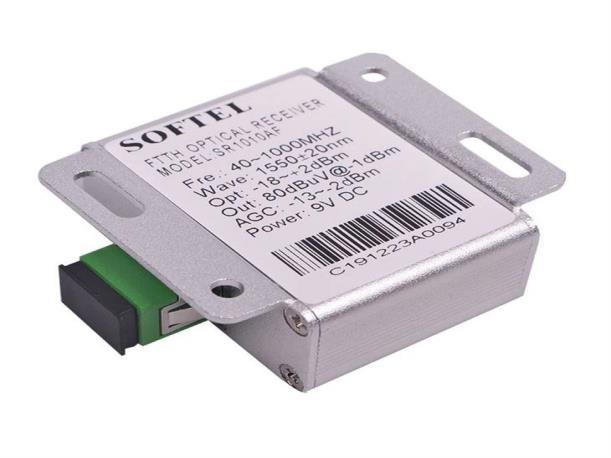

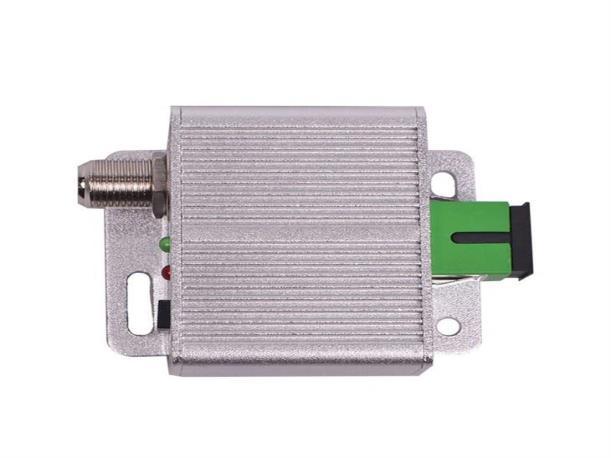

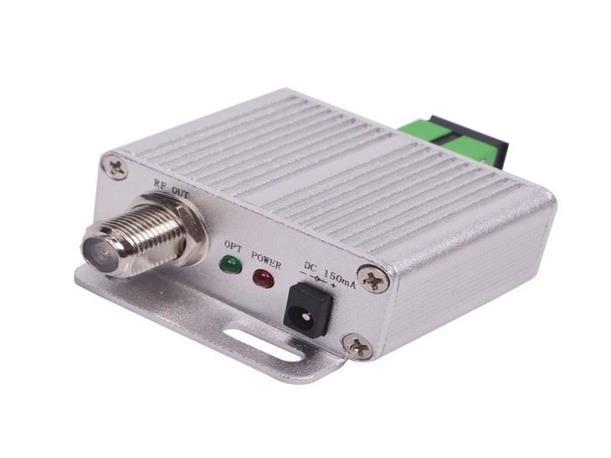

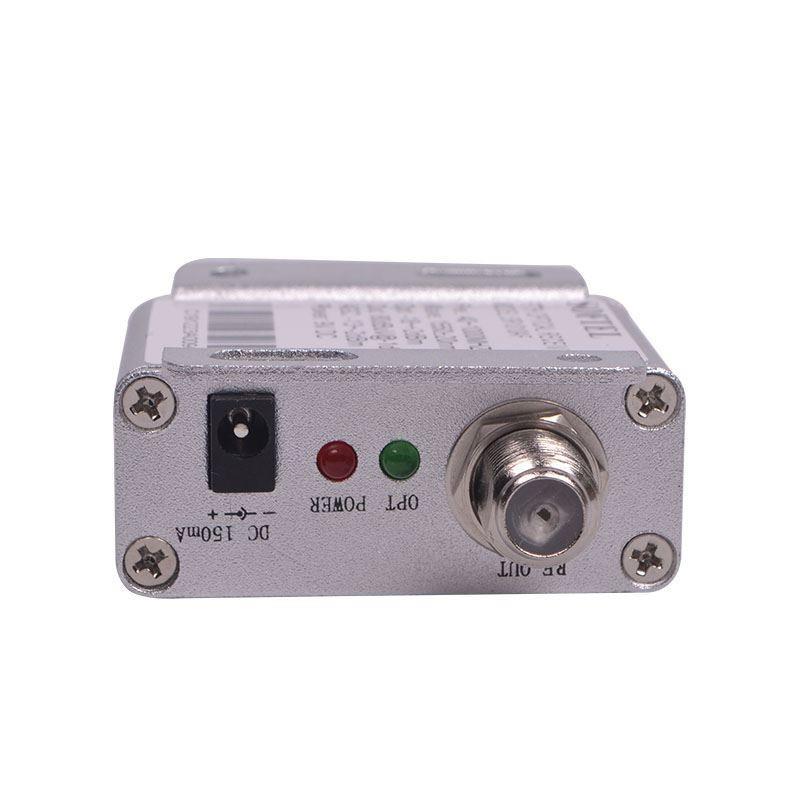

Detail Images of micro optical receiver node
Features
1.Analog TV & Digital TV FTTX O-E converter applications.
2.High linearity, low distortion and wide optical power AGC range(-13dBm to -2dBm).
3.Wide operating optical input range of 2 to -20dBm at 1550nm.
4.Optional optical power input -2 to 1dBm for RF output performance.
5.-13 to -2dBmOptical Input RF output: +80dBuV per channel at 3.5% OMI (22dBmV modulation input).
6.Full frequency range 40-1002MHz with CATV
7.Small flexible installation and Power supply on the line.

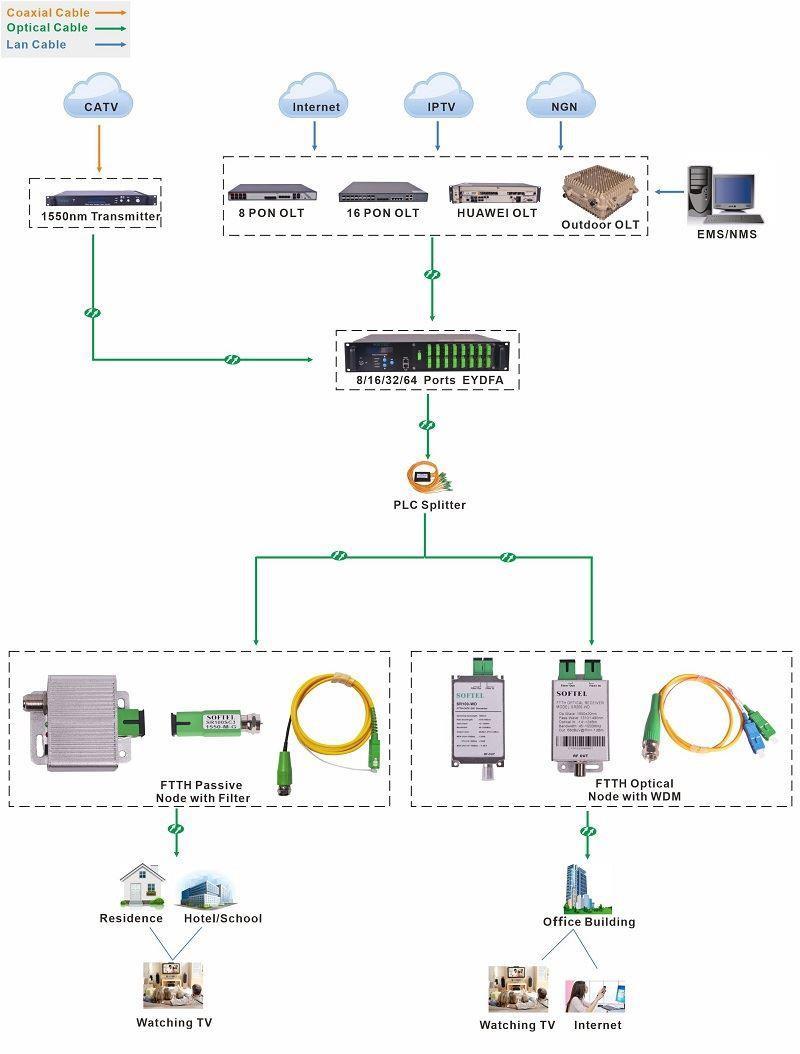

Applications
1. CATV FTTH
2. Integration of three network
