CATV FTTH OE Converter
Product Description
EM204 series ( CATV ftth OE converter), one kind of 10/100Mbps adaptive fast Ethernet media converter, with 4port 10M/100Mbps adaptive, switch built in can inter- convert electrical signals of 10Base-T and/or 100Base TX twisted pairs with optical signals of 100Base-FX, as well as, it can be configured with two optical modules (one of them is for backup or for the conversion of single-mode and multimode ).
CATV FTTH OE Converter extends the transmission distance of a network from 100m via copper cables to 120 km(via single mode full duplex fiber optical cables).
Contact:Tomleequan
The product supports two different types of network connection mediums: 10/100Base- TX and 100Base FX, and fulfills data transmission between the two types of network connection mediums with switching technology and store-and forward technology.
This makes it ideal for Working Group users and Intelligent Community Broadband Access.

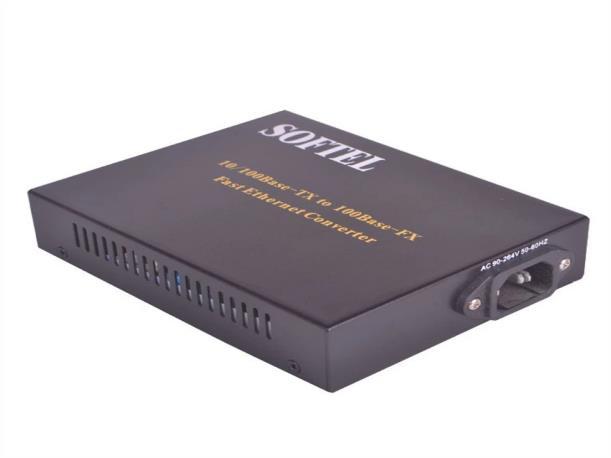

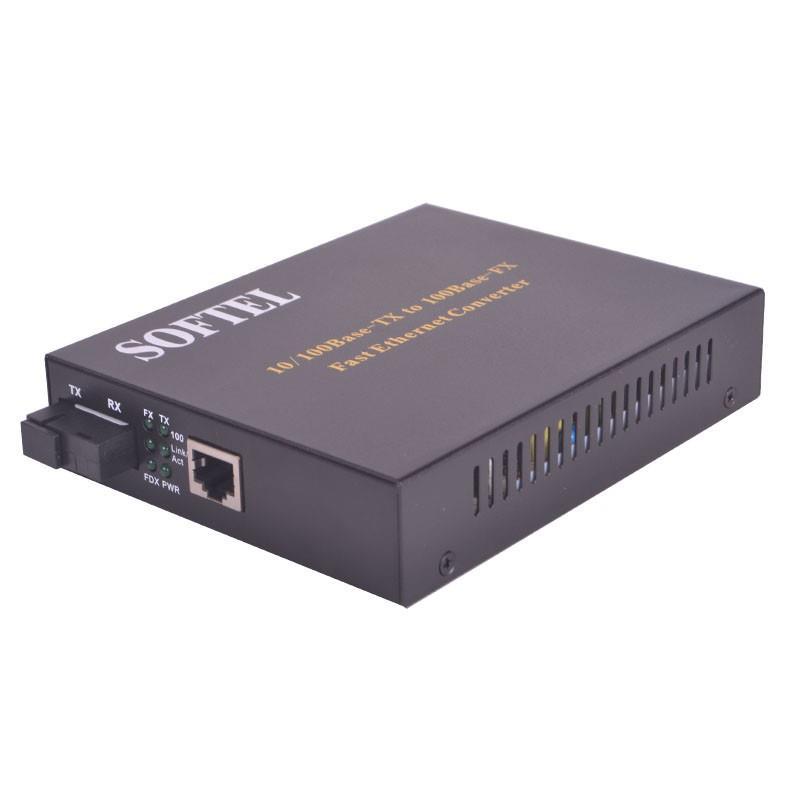

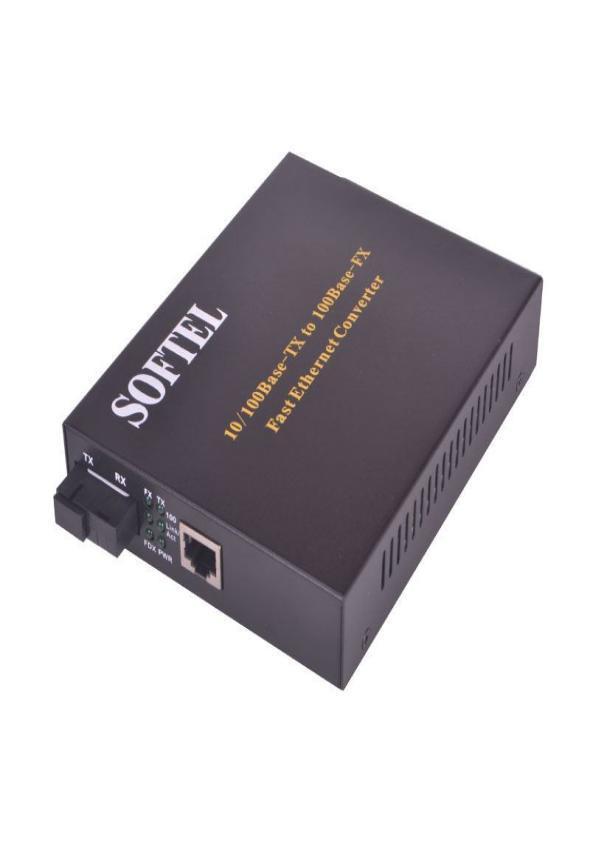

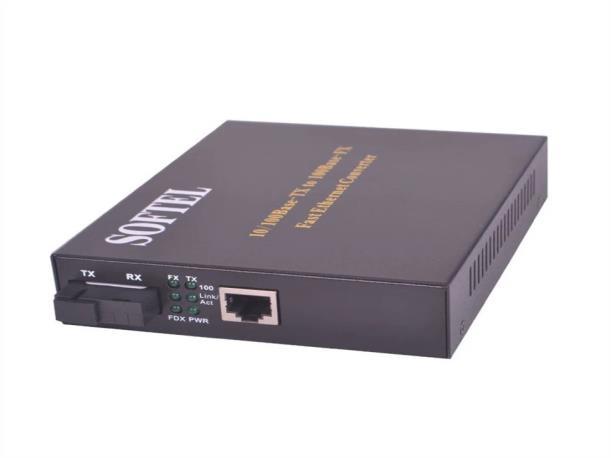

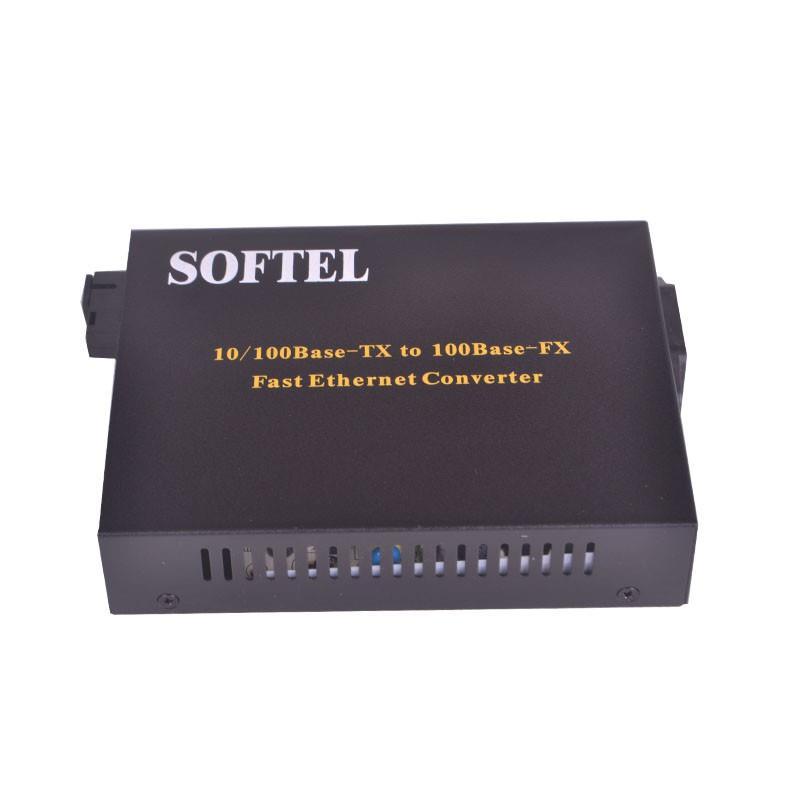

Prodcut Display
Key Features
10/100Mbps auto-sensed, facilitating network upgrade
Built-in efficient switching core to implement flow control and reduce broadcast packets
Providing Four respective 10M/100Mbps adaptive twisted pair switching ports to implement the back up of electrical ports and the access of multiple users, Two optical ports to fullfill optical backup or SM/MM conversion
Supporting full-duplex and half-duplex and its auto-sensed,Auto MDI/MDIX
Supporting automatic cross connection of twisted pair interfaces, facilitating system commissioning and installation
Contact:Tomleequan Email：sales@fmuser.com whatsapp: +8613922702227
Supporting the transmission of extra-long packets up to 1536 bytes
Supporting Quality of Service (QoS) and ensuring the transmission of VoIP packets
Supporting STP to form a redundant network
Low power consumption, low heat, reliable and stable performance, and long lifetime
Options in single mode in dual fiber, multi-mode in dual fiber, and single mode in single fiber
Technical Parameter(CATV ftth OE converter)
Parameter Specifications
Access mode 10/100Mbps
Standard
IEEE802.3 10Base-T Ethernet,IEEE802.3u,100Base-TX/FX Fast Ethernet, IEEE802.3x Flow control,IEEE802.1q VLAN,IEEE802.1p QoS,IEEE802.1d
Spanning Tree
Wavelengt h 850nm/1310nm/1550nm
Multi-mode Dual-fiber: 2 km;
Transmissi on distance
Port
Single mode dual-fiber: 20/40/60/80/100/120 km;
Single mode single fiber: 20/40/60/80/100 km
Category-5 twisted pairs: 100m
Four RJ45 ports: Connecting with STP/UTP category-5 twisted pairs
Two optical ports:
Multi-mode: SC or ST (50, 62.5/125μm)
Single mode: SC or FC (9/125μm)
Single mode Single fiber: SC/FC (9/125μm)
Conversio n means Media conversion, store-and-forward
MAC address I K
Contact:Tomleequan Email：
table
Buffer space 1Mbit
Flow control
Full duplex: flow control; half duplex: back pressure
Delay 9.6us
Error rate <10-9
MTBF 100,000 hours
PWR (power supply); FX LINK/ACT (optical link/action)
LED indicator
FX SPD(fiber 100M transmission rate)
TP1/2/3/4 LINK/ACT (1/2/3/4 port twisted pair link action)
TP1/2/3/4 SPD (1/2/3/4 port twisted pair 100M transmission rate)
Power supply DC5V 2A (external)
Power consumpti on 3.5W
Operating temperatur e -10~55°C
Operating humidity 5%~90%
Maintainin g temperatur e -40~70°C
Maintainin g humidity 5% ~ 90% non-condensing
Dimension s 52mm(H)*94mm(W)*120mm(D)(External power supply)
Paking
