Manufactory Wholesale Ftth Mini Fiber Optical Node for CATV FTTH and Triple Wavelength Systems
Looking for a cost-effective and energy-efficient solution for fiber-to-the-home networks? The Ftth Mini Fiber Optical Node is a compact, passive FTTH CATV Optic to RF Convertor designed for seamless integration into triple-wavelength systems. With no power supply required and a high-sensitivity optical receiving tube, it delivers an output level of 68dBμV at Pin=-1dBm, ensuring reliable performance for digital television and FTTH applications. Ideal for CATV FTTH, three-network integration, and FTTH PON systems, this device operates across a bandwidth of 45~1050MHz and supports wavelengths from 1260~1620nm.
• No power consumption | • High output level (68dBμV) | • Triple wavelength
compatibility | • Compact and durable design |
• Ideal for CATV FTTH and PON systems

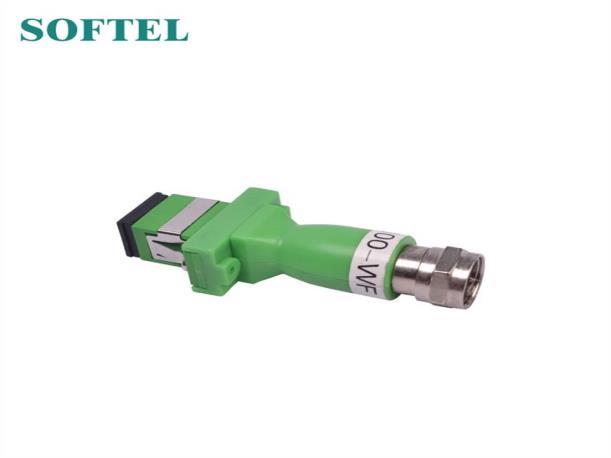

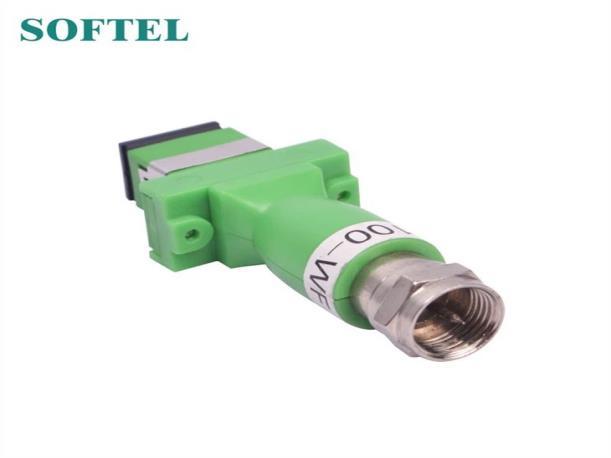

Ftth Mini fiber optical Node is a FTTH CATV Optic to RF Convertor.
Ftth Mini fiber optical Node
Brief introduction of Ftth Mini fiber optical Node
Ftth Mini fiber optical Node for digital television, fiber to the home. This machine adopts the high sensitivity optical receiving tube, without power supply, no power consumption. When the input optical power output level Pin=-1dBm, Vo=6 8dB V, can be economically and flexibly apply the integration of three networks,
Contact:Tomleequan

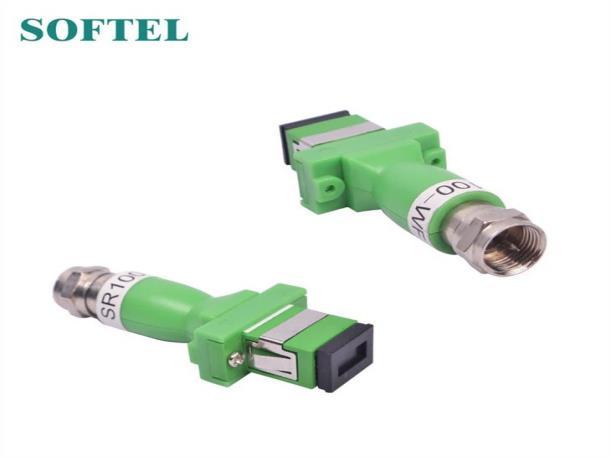

fiber to the home network application. SR100 appearance of enamel, there are two kinds of optical mode selection:
1. SR100: CATV operating wavelength 1260~1620nm.
2. SR100/WF: Built-in 1310/1490nm filter, suitable for single-fiber triple wavelength system, CATV Operating wavelength 1550nm.
Product feature
1. No Power required
2. Work bandwidth 45~1050MHz
3. Output Level=68dBμV (Pin=-1dBm)
Main application
1. CATV FTTH
2. Integration of three networks
3. FTTH PON

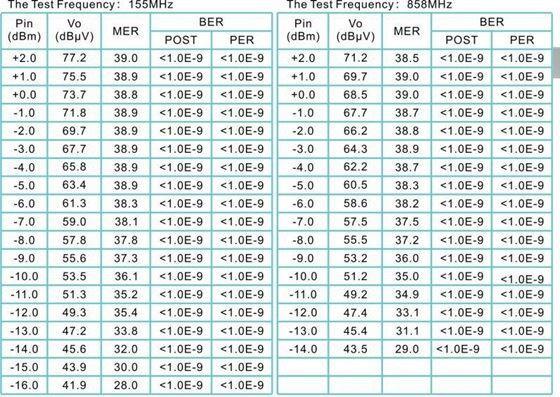

Test data
Technical index
gth 1540~1563 SR100/WF
Channel Isolation (dB) ≥40 1550nm&1490nm
Resposibitity (A/W)
≥0.85 1310nm
≥0.9 1550nm
Receiving power (dBm) +2~-14
Optical return loss (dB) ≥55
Optical fiber connect or SC/APC SR100-SC
FC/APC SR100-FC
Work bandwidth (MHz) 45~1050M Hz
Output level (dBμ V) >68
RF Feature
Digital TV (Pin=-1dB m)
Return loss (dB) ≥14 47~862MHz
Output impedance (Ω) 75
Output port number 1
RF tie-in F-Female
DigitalTV eature
General feature
Work temp (℃) -20~+55
Storage temp (℃) -40~85
Work relative temp (%) 5~95
23×53×12 A Type (Enamel Ty pe)
Size (W)×(D)×(H) (mm)
Ф13×28 B Type (Fiber Type)
50×88×22 C Type (Box Type)
