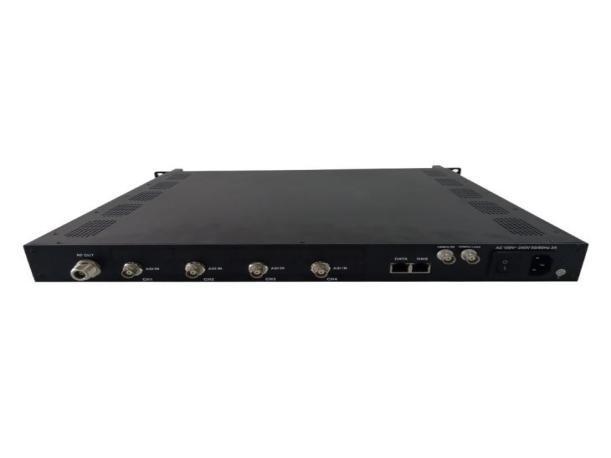

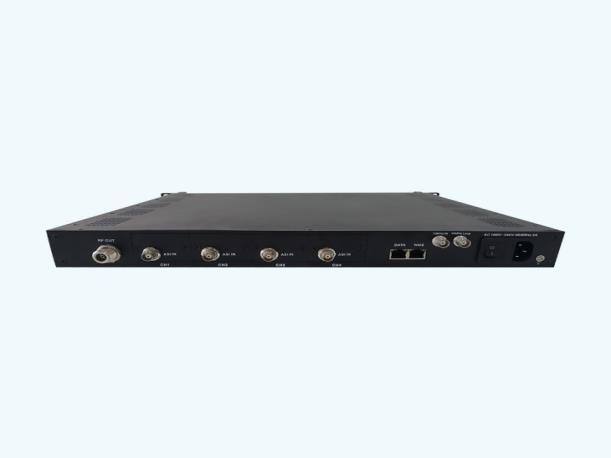

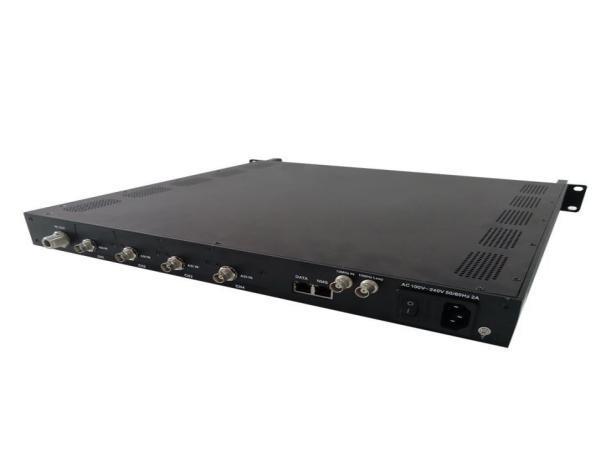

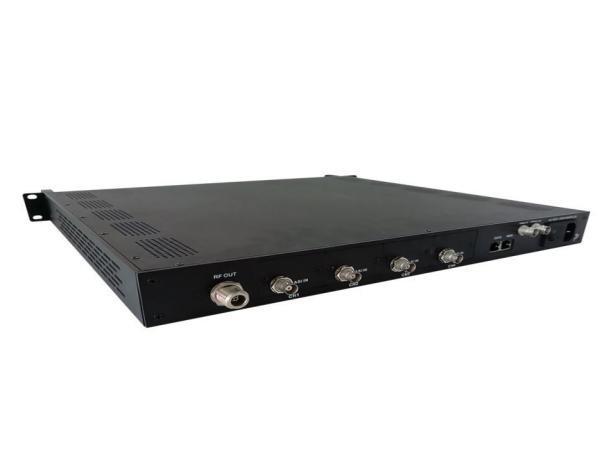

Manufactory Wholesale QPSK6350 DVB-S/S2 Modulator for DSNG & CATV Networks with BISS Encryption Struggling with seamless signal transmission in DSNG or CATV networks? The QPSK6350 modulator delivers unmatched performance with DVB-S2 (EN302307) and DVB-S (EN300421) compliance, ensuring backward compatibility and enhanced spectral efficiency. Featuring BISS encryption, 4 ASI inputs, and IP support, it’s ideal for broadcast, satellite, and network transmission. With an L-band output range of 950-2150MHz and symbol rates up to 45Mbps, it guarantees reliable, high-quality signal delivery. Certified for professional use, it’s trusted by global integrators.

• DVB-S2 & DVB-S Compliance | BISS Encryption | 4 ASI Inputs | IP Support | L-Band Output

◆ 4ASI( 3 as backup)/IP(option) in to DVB-S/S2 QPSK,8QPSK out ◆ with BISS encryption, symbol rate can be 0.5-45Mbps

Contact:Tomleequan

Email：sales@fmuser.com

whatsapp: +8613922702227

Contact:Tomleequan

Email：sales@fmuser.com

whatsapp: +8613922702227

◆ L-band output rf frequency 950-1050Mhz or 950-2150Mhz, 10KHz stepping ◆ BISS Scramble: Mode 0, mode 1, mode E Overview

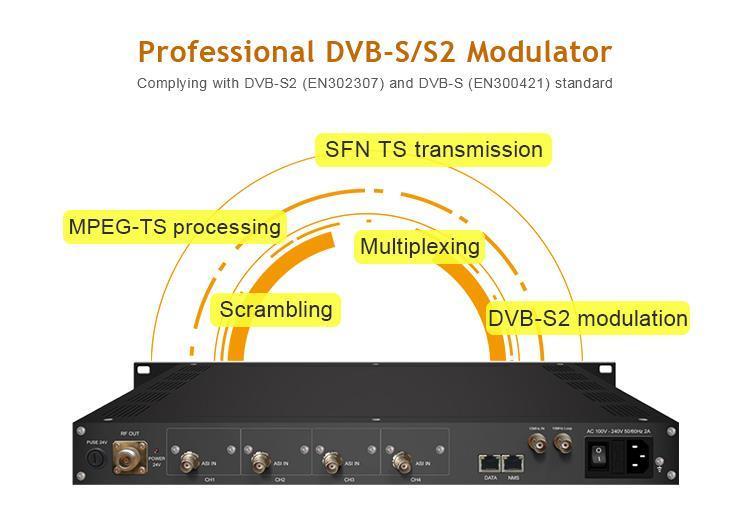

QPSK6350 is a high performance professional DVB-S/S2 modulator, which complies with DVB-S2 (EN302307) standard and is backwards-compatible with DVB-S (EN300421) modulation standard. It adopts advanced framing structure, channel coding and modulation technology, increasing over 50% transmission ability more than DVB-S modulator under the same transmission condition and also providing a more powerful receiving ability in the same spectral efficiency. It widely applications to DSNG and DVB-S/S2 network transmission.

The modulator support L-band (RF:950-2150MHz) out. Two inputs are available in order to feed the Modulator, 4 ASI interfaces or FTA DVB-S2/S2X Tuner, capable of near seamless switching, 100M/1GbE interface input for MPEG TS over IP. Features ◆Fully complying with DVB-S2 (EN302307) and DVB-S (EN300421) standard ◆4 ASI inputs supporting hot backup (3 for backup) Contact:Tomleequan

Email：sales@fmuser.com

whatsapp: +8613922702227

Contact:Tomleequan

Email：sales@fmuser.com

whatsapp: +8613922702227

◆Support IP (100M) signal input (option) ◆QPSK, 8PSK, 16APSK (option), 32APSK (option) Constellations ◆Support RF CID setting ◆Constant temperature crystal oscillator, as high as 0.1ppm stability ◆Support coupling 10Mhz clock output through RF output port ◆Support 24V power output through RF output port, coupling 24V/4A power (option) ◆Support BISS scrambling ◆Support local and remote control with SNMP or Web-server NMS ◆Support SFN TS (with MIP or IIP) transmission (option) ◆Output frequency range: 950~2150MHz, 10KHz stepping
