Manufactory Wholesale Passive Optical Node SR100SC3 with SC/APC for CATV Systems 45-1000MHz
Looking for a reliable, energy-efficient solution for CATV systems? The Passive Optical Node SR100SC3 is an enamel-type mini node featuring an SC/APC connector, designed for seamless integration in 45-1000MHz bandwidth applications. With no power required and options for green or white housing, this node ensures high performance in demanding environments. Its input wavelength of 1310, 1490/1550nm and optional F-type connectors make it versatile for various setups. Ideal for CATV, FTTH, and broadband networks, it delivers >68dBμV output level and ≥55dB optical return loss, ensuring stable signal transmission.
• No power required | • SC/APC connector | • 45-1000MHz bandwidth | >68dBμV output level | • Ideal for CATV, FTTH, and broadband networks
It is an enamel Type Mini Passive Node with SC/APC. The work bandwidth is 45-1000MHz.

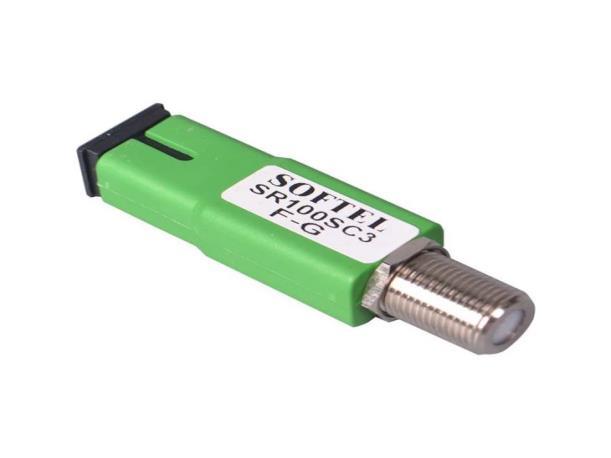

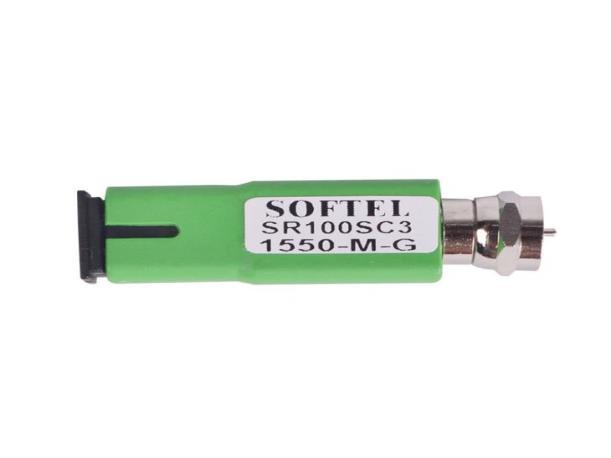

Passive Optical Node SR100SC3 is an enamel type mini node with SC/APC optical fiber connector.
Features
No Power required

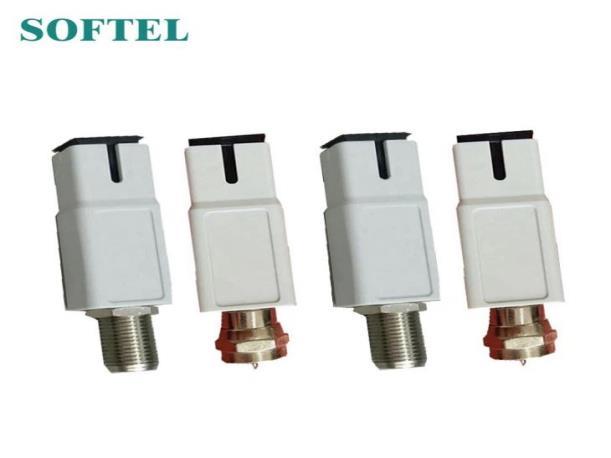

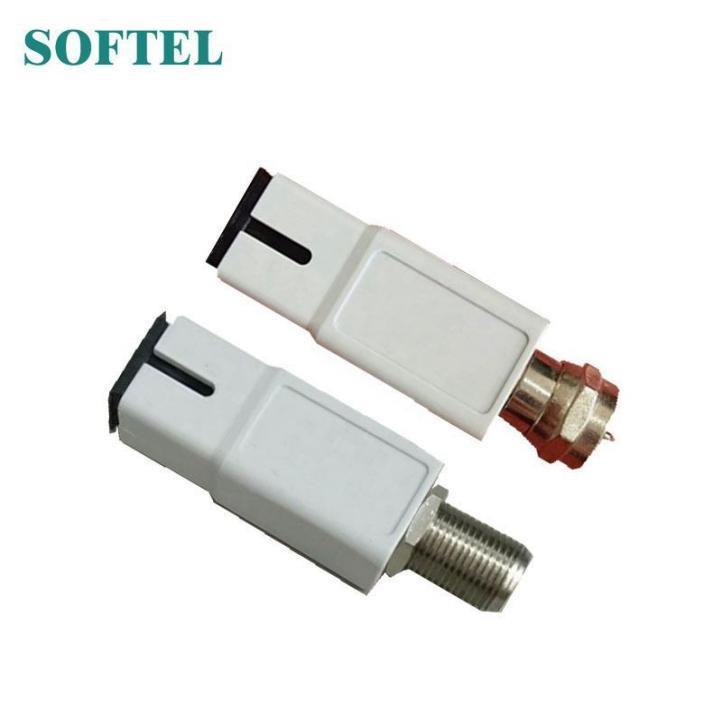

Green or White for option
Input Wavelength is 1310,1490/1550nm

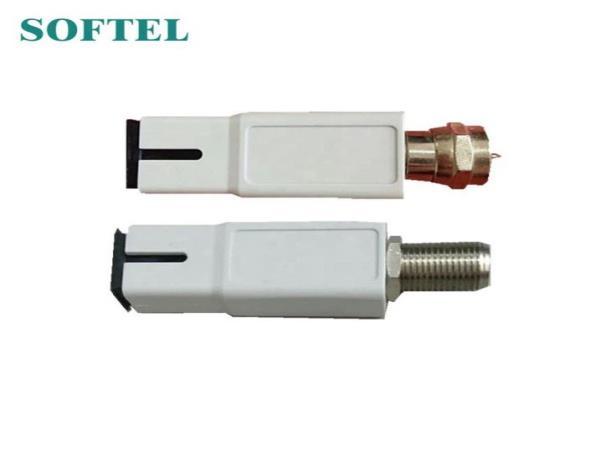

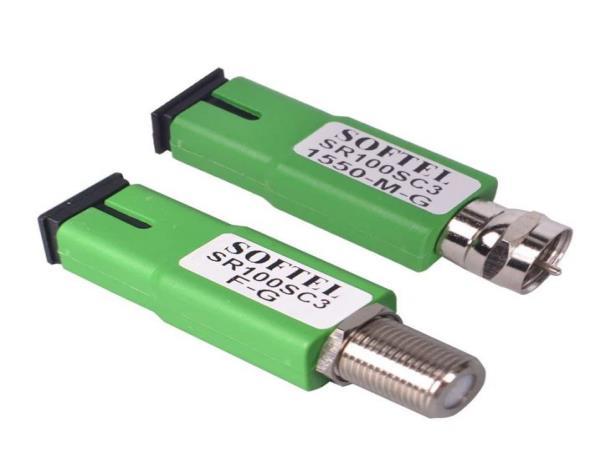

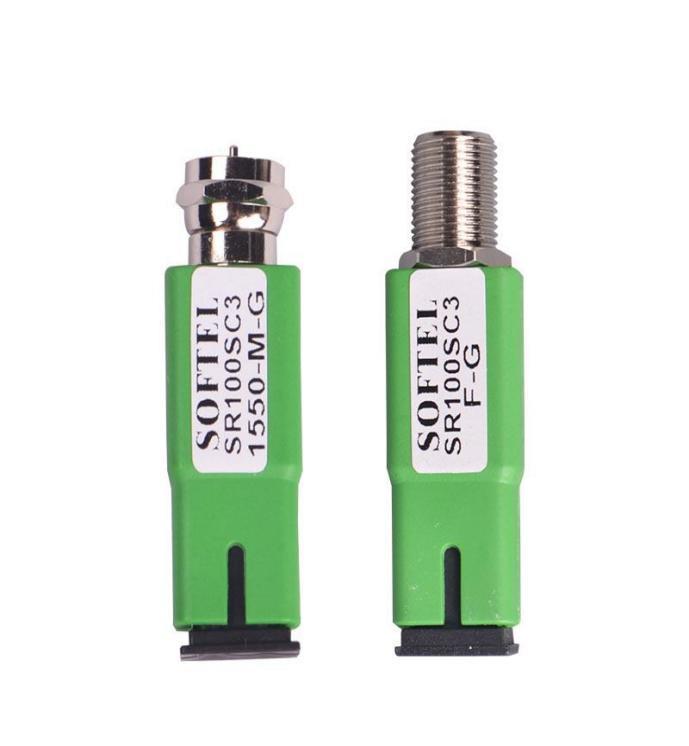

Female F-type Connector or Male F-type Connector for option
Specifications of Passive Optical Node
Optic Feature
CATV work wavelength nm 1260~16 20 Option 1540~15 63 Option
Channel Isolation dB ≥40 1550nm&1490nm
Response A/W
RF Feature
≥0.85 1310nm ≥0.9 1550nm
Receiving Power dBm +2~-14
Optical return loss dB ≥55
Optical fiber connector SC/AP C
Work bandwidth MHz 45~1050
Output level dBμV >68 Digital TV (pin=-1dBm)
Return loss dB ≥14 47~862MHz
Output impedance Ω 75
Output port number 1
RF tie-in F-female Option F-male Option Digital TV
Work temperature ºC -20~+55
Storage temperature ºC -40~+85
Generl feature
Work relative temperature ºC 5~95
