Manufactory Wholesale HT828B CATV Signal Level Meter for FTTX and RF Testing with Dual-Channel Measurement
Need precise signal measurement for CATV systems? The HT828B CATV Signal Level Meter is your go-to solution, offering dual-channel measurement with a full-size LED display for C/N, Trunk Voltage, and V/A. Designed for FTTX applications, it covers a frequency range of 46~870MHz (optional 5~860MHz) and ensures accurate readings from 30dBμV to 115dBμV. Compact, portable, and powered by a 7.2V rechargeable battery, it’s ideal for field technicians and RF testing in CATV networks.
• Dual-channel measurement | • Full-size LED display | • Frequency range 46~870MHz | • Portable and rechargeable | • Ideal for FTTX and CATV RF testing

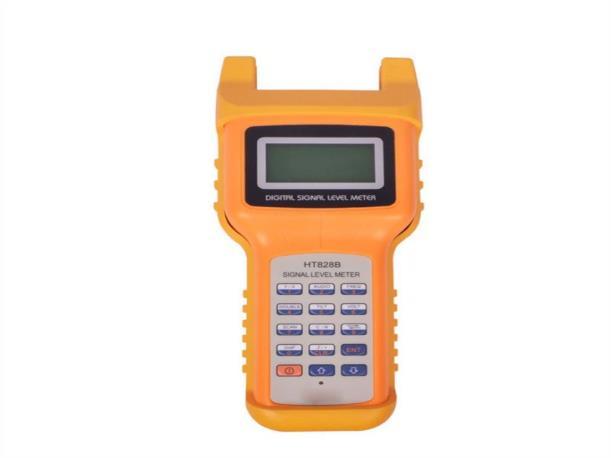

HT828B CATV Signal Level Meter
HT828B CATV Signal Level Meter
Production Introduction

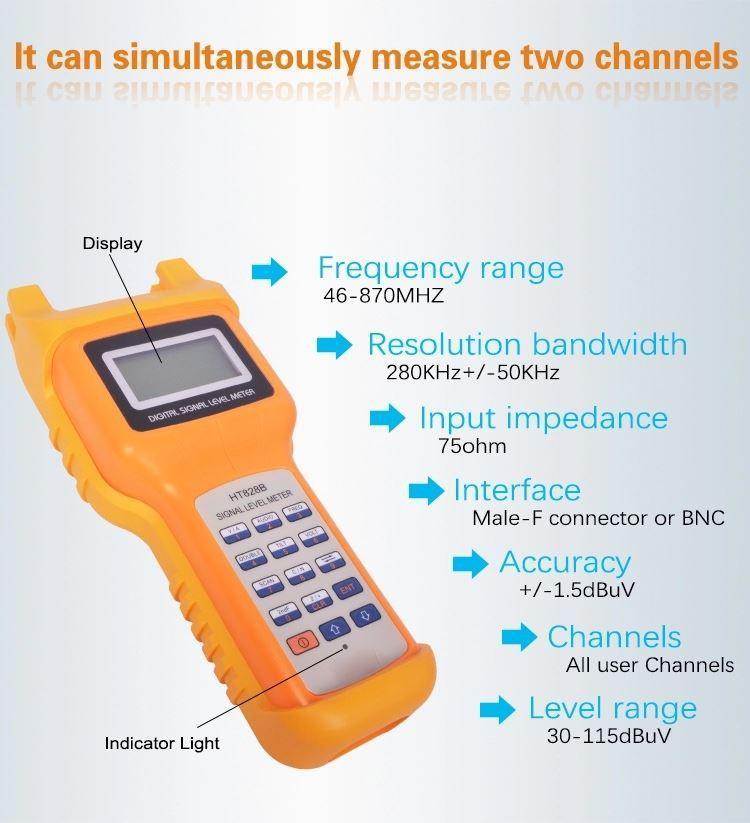

HT828B CATV Signal Level Meter is an analog Television signal Level Meter, it enables showing C/N, Trunk Voltage, and V/A on Full size LED displayer, and it can simultaneously measure twochannels.
Specification
Model HT828B CATV Signal Level Meter
Channels: all user channels
Frequency
dimension
215mm x 95mm X 47mm weight
DC Supply
AC Supply
Recharging hours
Input impedance
550g (without charger)
7.2V/1.6Ah rechargeable battery
AC 220V/50Hz±10%
12 14 hours
75Ω(BNC or F connector)
