Wholesale 1550nm Micro Optical Transmitter for CATV and SAT-IF Systems with 10mW Output Power
Looking for a reliable solution for signal transmission in CATV and SAT-IF systems? The 1550nm Micro Optical Transmitter is a compact, high-performance device designed to convert electrical signals into optical signals with precision. Featuring a miniaturized design, it ensures easy installation and robust operation in diverse environments. With a 1550nm wavelength and 10mW output power, this transmitter delivers exceptional signal quality and compatibility with existing systems. Ideal for cable TV networks, satellite TV systems, and broadband communication, it guarantees high reliability and seamless integration.
• Miniaturized design for easy deployment | • 1550nm wavelength, 10mW output power
| • High reliability in various conditions | • Strong compatibility with CATV and SAT-IF systems

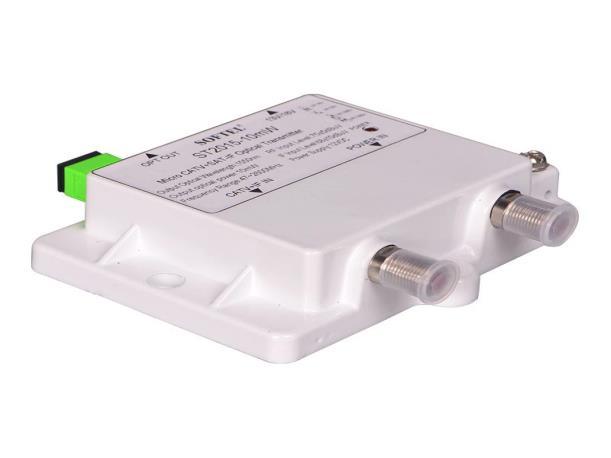

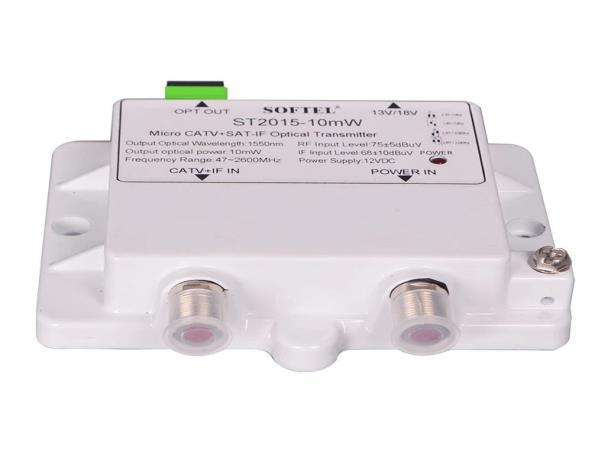

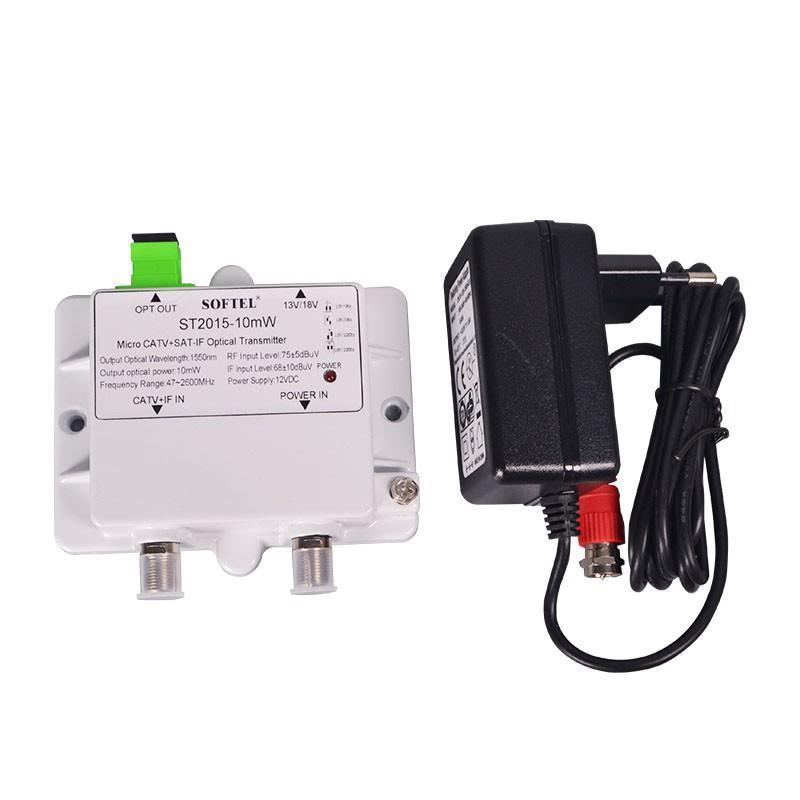

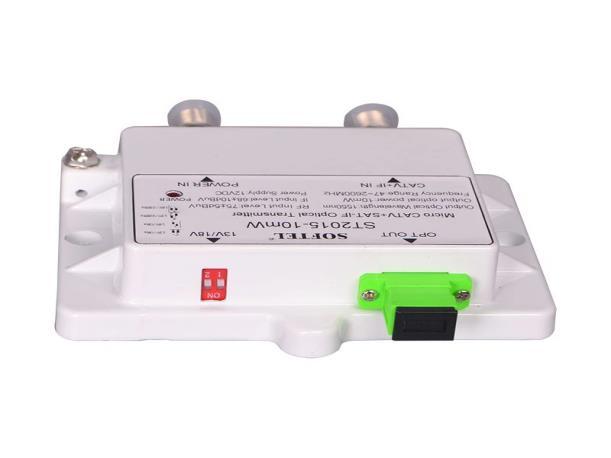

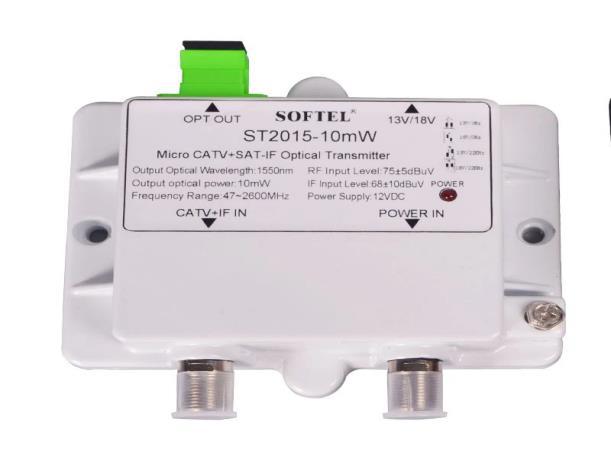

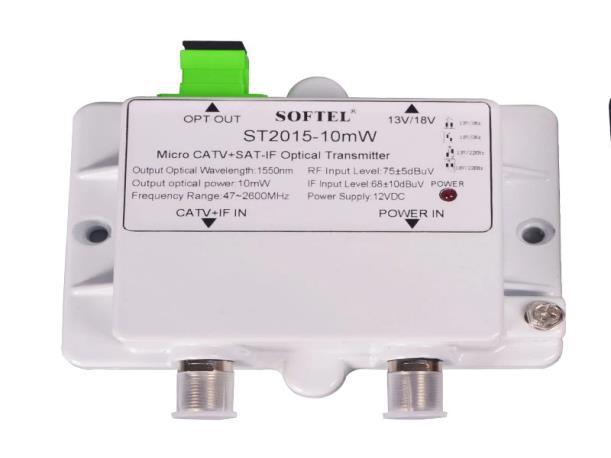

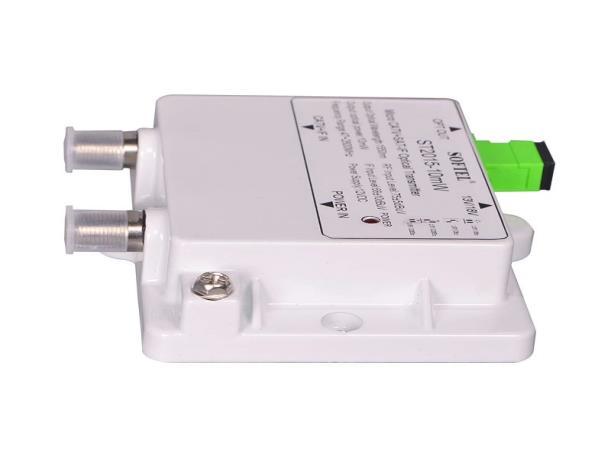

ST2015-10mw micro CATV+SAT-IF Optical Transmitter is a miniaturized optical transmitter, which is mainly used for signal transmission in cable television (CATV) and satellite television (SAT-IF) systems. The main function of such a device is to convert electrical signals into optical signals and transmit themto the receiving device at the far end through optical fibers.
CATV SAT-IF
Micro Optical Transmitter
1550nm
Features
• Miniaturized design: Compact size, easy to install and deploy.
• High reliability: Robust design and stable operation under various environmental conditions.
• Easy to install and maintain: Modular design for easy installation and maintenance.
• Strong compatibility: Supports a variety of standards and protocols, compatible with existing cable and satellite TV systems.
Parameters of 1550nm micro optical transmitter
Number
Customer Interface
RF Connector F-female
Optical Connector SC/APC or FC/APC
Power Supply F-female
Optical Parameter
Optical Return Loss dB ≥45
Output Optical Wavelength nm 1550
Output Optical Power mW 3 or 10
Optical Fiber Type Single Mode
RF Parameter
Frequency Range MHz 47-2150
Flatness
CATV input level
dB ±0.75
dBµV 80±5
SATV input level 70±5
Input Impedance Ω 75
Return Loss
C/N
CSO
CTB
Other Parameter
dB ≥16
dB ≥52
dB ≥60
dB ≥63
Application scenarios of CATV SAT-IF Micro Optical Transmitter
1. Cable TV network: The front-end equipment used for the cable TV network to convert electrical signals into optical signals and transmit them to the receiving equipment at the remote end through optical fiber.
2. Satellite TV system: The ground station used for the satellite TV systemconverts the satellite signal into an optical signal and transmits it to the user through optical fiber.
3. Broadband communication: In the broadband communication system, it is used to convert electrical signals into optical signals to improve transmission efficiency and signal quality.

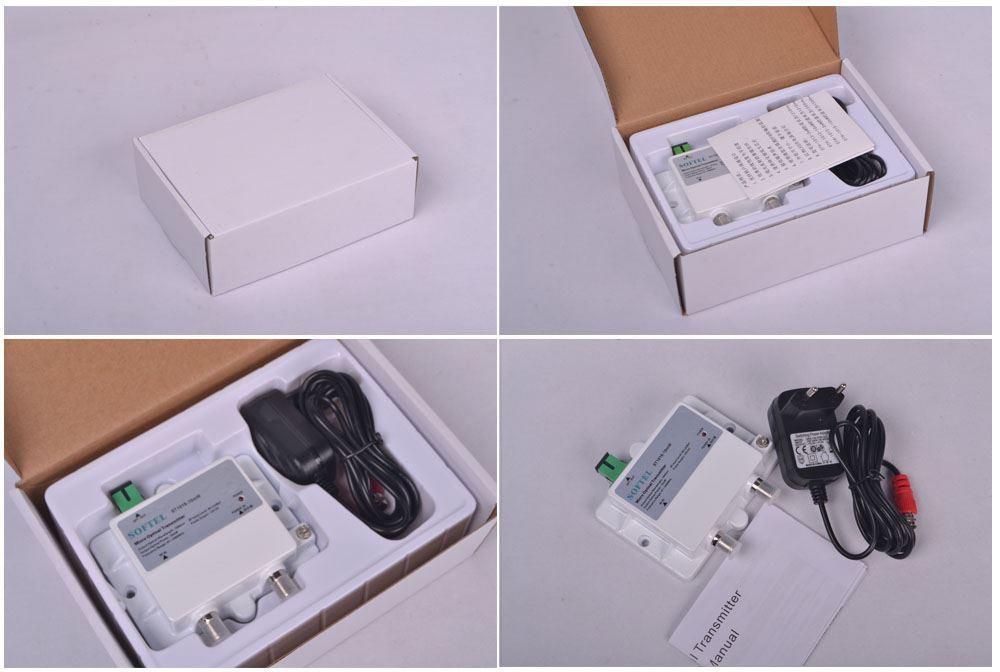

Packaging for 1550nm CATV SAT-IF Micro Optical Transmitter
