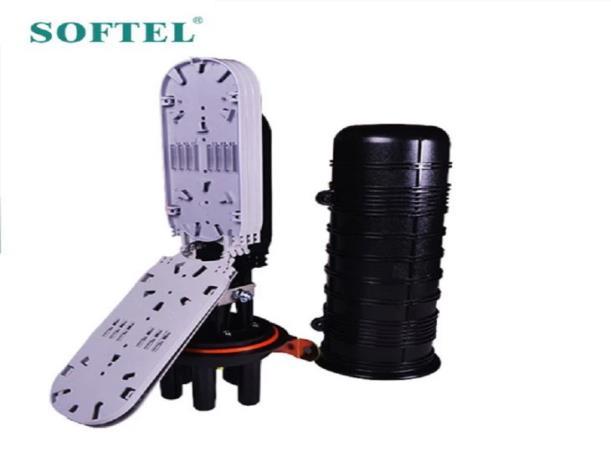

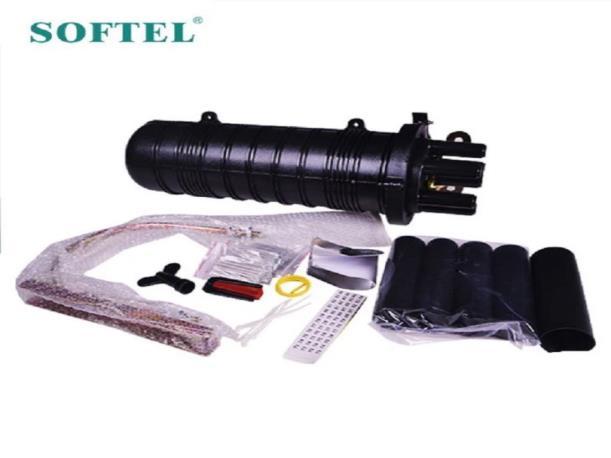

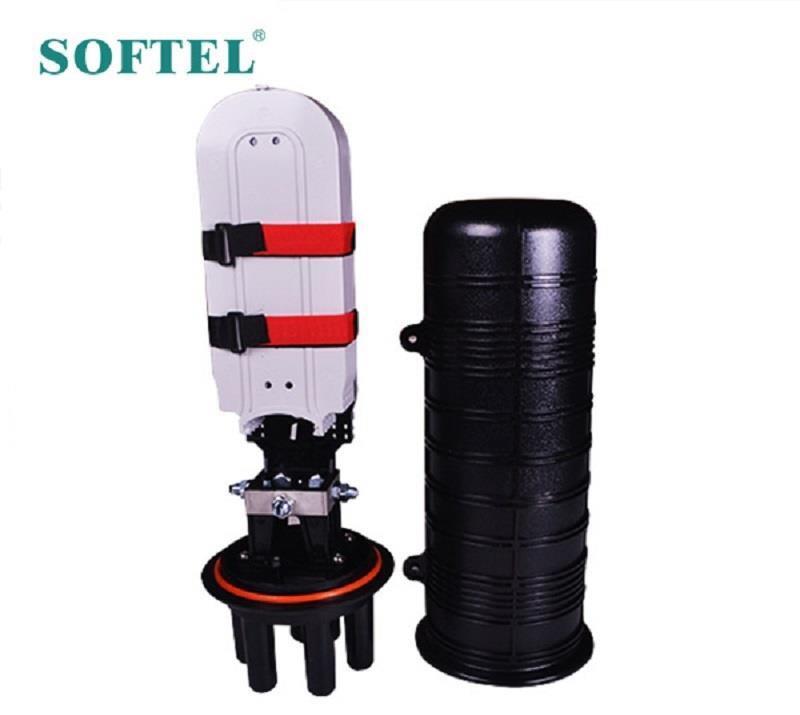

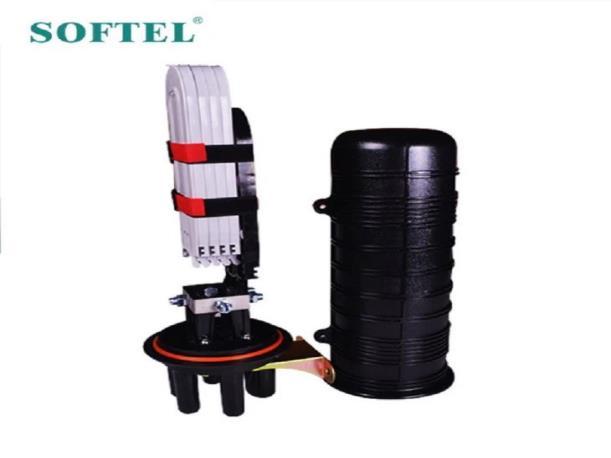

Manufactory Wholesale Joint Closure 96 Fiber Splice Tray for Aerial, Underground, and Direct Buried Applications
Protecting fiber optic splices from harsh environmental conditions is critical for network reliability. The Joint Closure 96 Fiber Splice Tray offers a robust solution with a perfect waterproof function, reliable heat-shrinkable sealing, and compatibility with both ordinary and ribbon fibers. Designed for aerial, underground, pipeline, and hand-hole applications, it supports up to 96 cores and ensures fast, no-cost re-entry. With an ambient temperature range of -40 to 65ºC, this tray is built for durability and ease of use in demanding environments.
• Perfect waterproof function | • Heat-shrinkable sealing | • Supports up to 96 cores | • Suitable for aerial, underground, and direct buried applications | • Temperature range: -40 to 65ºC
It also protects fiber optic splices from the elements while providing fast and easy no-cost re-entry.
FOM-E joint closure 96 core fiber splice tray can be used in outside plant, underground, aerial, pedestal and direct buried applications. It also protects fiber optic splices from the elements while providing fast and easy no-cost re-entry.
Features
1. Perfect waterproof function.
2. Perfect and reliable sealing operations.
3. Suitable for ordinary fiber and ribbon fiber.
Scope of application
The scope of application is: aerial, underground, pipeline, hand-holes.
The ambient temperature ranges from -40 to 65ºC.
Parameters of Joint Closure 96 Fiber Splice Tray
Outside dimension (Height x Diameter) 190mm×435mm
Core capacity per tray 12 or 24
Number of ports 4
Diameter of fiber cable Max Φ25mm
Capacity of FOSC Bunchy: Max 96 (cores)
Sealing structure Heat-shrinkable Sealing
