Manufactory Wholesale SK-24 24 Ports High Isolation Passive Combiner for DVB-T/ISDB-T RF Signal Mixing in CATV Networks
Are you struggling with signal interference and loss in your multi-modulator CATV network? The SK-24 24 Ports High Isolation Passive Combiner is engineered to solve these challenges with precision. Designed for private cable networks, this combiner supports up to 24 modulators, ensuring seamless integration of multiple RF signals. Its broad frequency range of 40~860 MHz and exceptional 30dB port-to-port isolation guarantee minimal signal degradation and superior performance. With an insertion loss of 22dB @ 40~550 MHz and 24dB @ 550~860 MHz, the SK-24 delivers reliable signal transmission across diverse applications, including broadcasting, hospitality, and enterprise networks. Backed by robust 75Ω F-Female connectors and a -20dB test port, this combiner is a trusted solution for system integrators and engineers seeking efficiency and scalability.
• Supports up to 24 modulators | • Broad frequency range of 40~860 MHz | • Excellent 30dB port-to-port isolation | • Low insertion loss: 22dB @ 40~550 MHz, 24dB @ 550~860 MHz | • Includes -20dB test port for diagnostics

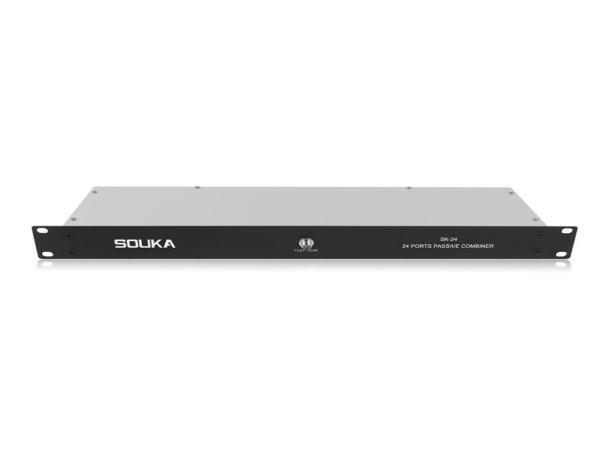

The SK-24 is a professional quality 24 ports passive output combiner designed for private cable networks employing multiple modulators and processing equipment.
SK-24
24 Ports Passive Combiner
FEATURES:
1. Supports up to 24 modulators
2. Broad frequency range of 40~860 Mhz
3. Excellent point-to-point signal isolation, insertion loss, and input/output return loss
4. With a -20dB test port SPECIFICATION: INPUT
Input Connector 75Ω F-Female *24
Frequency
Port-to-port
(Adjacent Ports) Return
typical @ 40 ~ 550 MHz
typical @ 550 ~ 860 MHz OUTPUT
Output Connector
Ω F-Female *1 Test Point Loss
