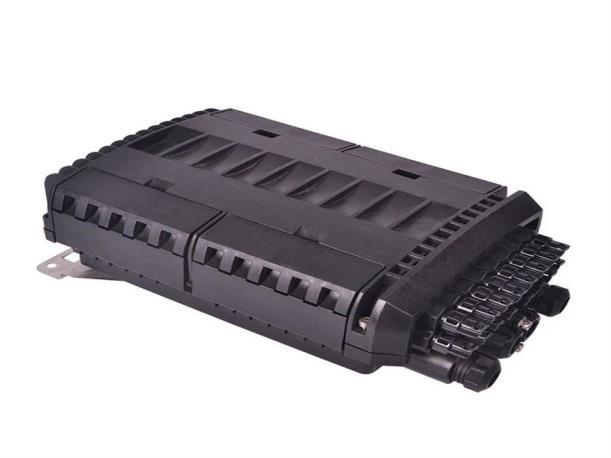

Manufactory Wholesale Cajas Nap 16 Puertos IP68 Fiber
Optic
Splitter Box for FTTx Networks
Looking for a reliable solution for FTTx network termination and management? The Cajas Nap 16 Puertos is a robust, IP68-rated fiber optic splitter box designed for seamless fiber splicing, splitting, and distribution. With its total enclosed structure, it ensures water-proof, dust-proof, and anti-aging protection, making it ideal for both indoor and outdoor installations. Featuring SC/LC/PLC adaptors, easy maintenance, and wall or pole-mounted options, this box supports insertion loss ≤0.2dB and a lifespan of over 1000 insertions. Perfect for telecom and broadband networks, it guarantees efficient cable management and network scalability.
• IP68 protection level | • SC/LC/PLC adaptor compatibility | • Wall or pole-mounted installation |
• Insertion loss ≤0.2dB |
• Suitable for indoor and outdoor use
NAP-16 cajas nap 16 puertos es nuestra venta caliente
cajas nap 16 puertos
Production Description
Cajas nap 16 puertos is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Features
1、 Total enclosed structure.
2、 Material: PC，wet-proof. water-proof. dust-proof. anti-aging, protection level up to IP68

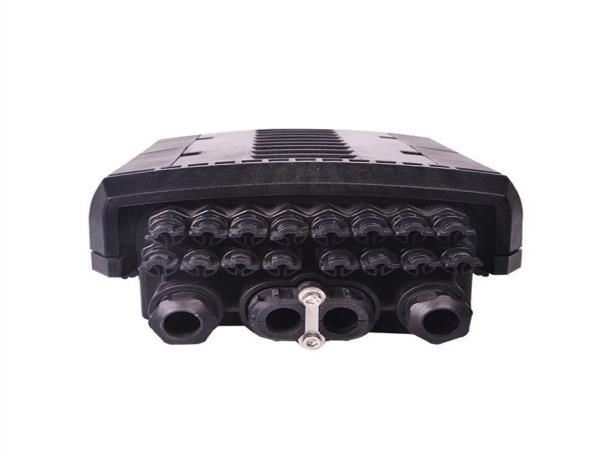

3 、 Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.

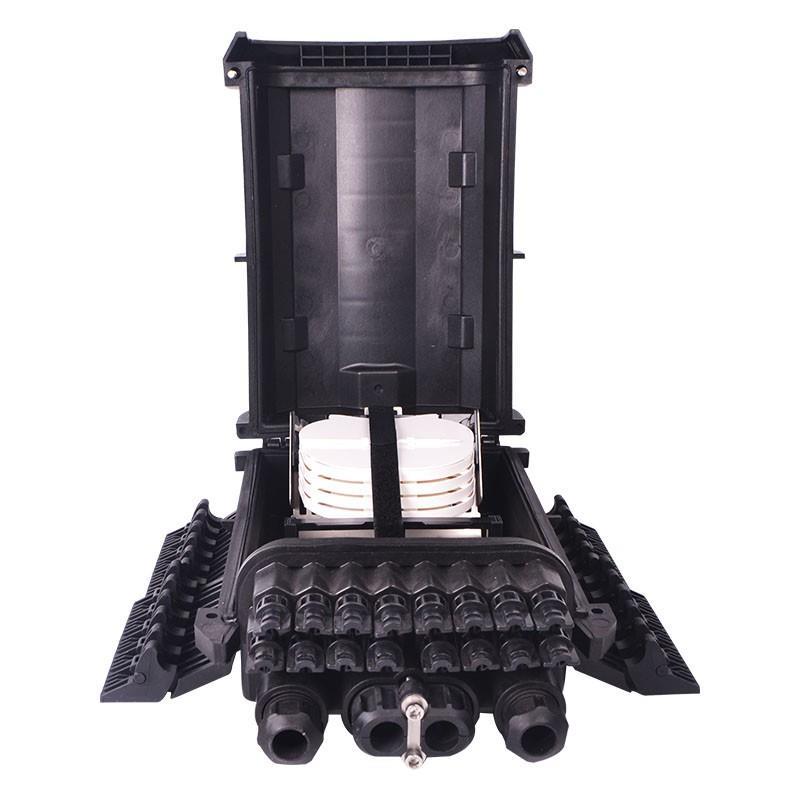

4 、 Cable, pigtails, patch cords are running through own path without disturbing each other, cassette type SC/LC/PLC adaptor installation, easy maintenance.

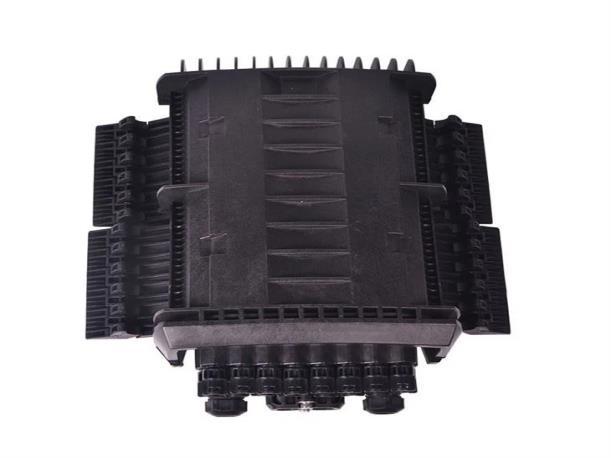

5 、 Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.

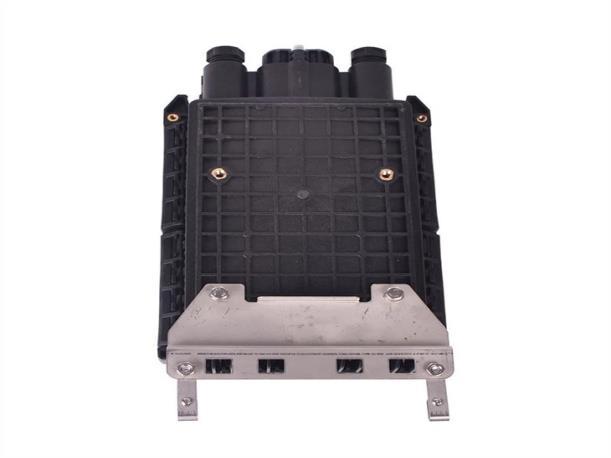

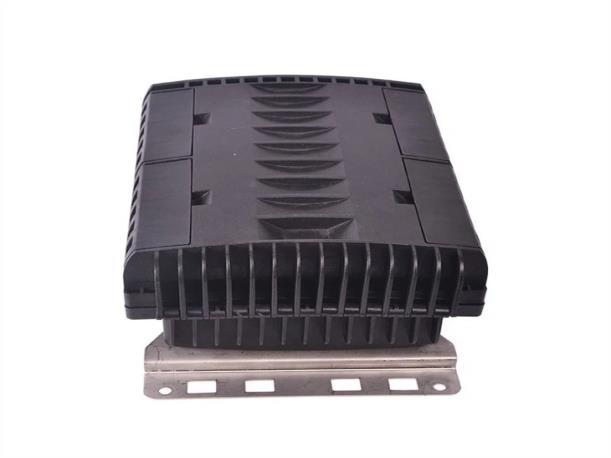

6 、 Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
Specification (cajas nap 16 puertos)
Environmental requirement
Working temperature: -40℃～+85℃Relative
humidity: ≤85%（+30℃） Atmospheric
pressure: 70KPa～106Kpa
Main technical data-sheet Insertion loss: ≤0.2dB
UPC return loss: ≥50dB
APC return loss: ≥60dB
Life of insertion and extraction: ＞1000 times
Thunder-proof technical data-sheet
The grounding device is isolated with the cabinet, isolation resistance is less than 2 ´104 MΩ/500V(DC); IR≥2´104 MΩ/500V
The withstand voltage between grounding device and cabinet is no less than 3000V
（DC）/min, no puncture, no flashover: U≥3000V
Configuration Table

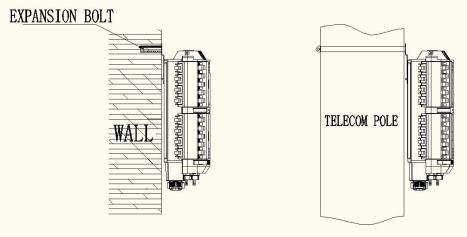

cajas nap 16 puertos Installation:
1. Wall-mounted installation
According to the size of table 1 of hanging wall with percussion drill play two holes on the wall, knock into the metal tube, will be installed back the case according to the punching position on the wall, and completely fixed screw。(Pic 5)
2. Pole-mounted installation
Fix 1 set of the easy pole ring to the Telecom pole .
