Manufactory Wholesale PT-0005 Termination Box Fiber for
Aerial, Buried, and Manhole Applications
Need reliable protection for fiber optic cable joints? The PT-0005 Termination Box Fiber is engineered to safeguard fiber splices with its robust design and advanced features. Built with modified PP material, it offers anti-UV, anti-aging, and corrosion resistance, ensuring durability in harsh environments. With a capacity of 72 fibers across 3 trays, it supports various cable types and constructions, making it ideal for aerial, buried, handhole, and manhole applications. Key features include mechanical sealing, stainless-steel inner parts, and lightning protection.
• 72-fiber capacity | • Anti-UV & corrosion-resistant material | • Mechanical sealing for easy installation | • Lightning protection | • Compatible with multiple cable types and environments
PT-0005 fiber optic splice closures are specially designed to protect joints of optic cable.
Termination Box Fiber

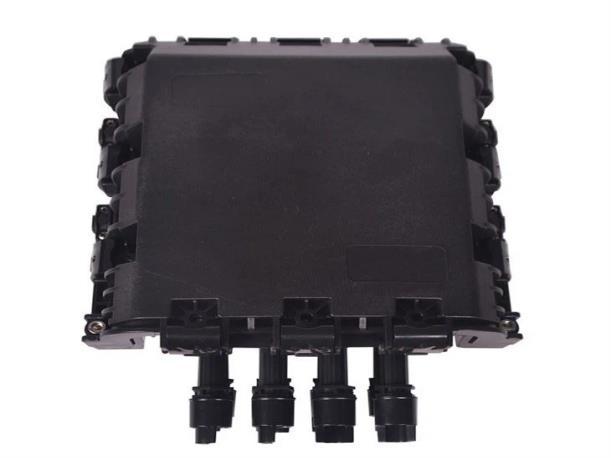

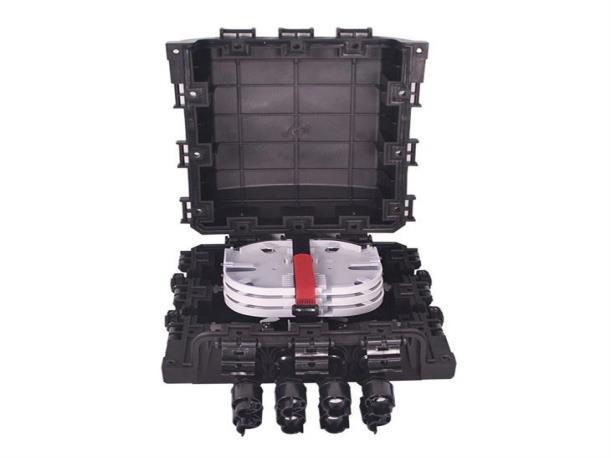

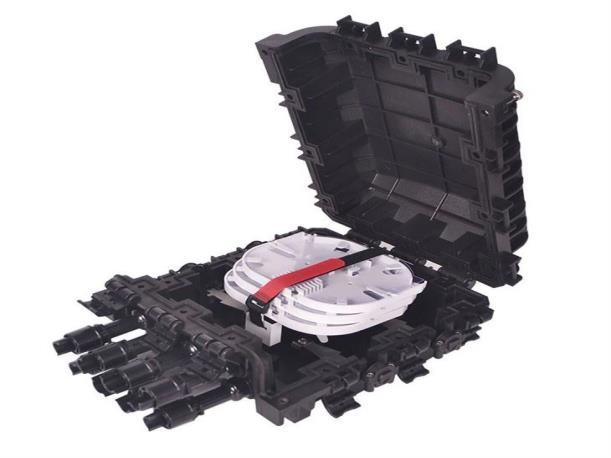

PT-0005 Termination Box Fiber optic splice closures are specially designed to protect joints of optic cable. Excessive fibers can be stored in storage baskets behind the splice trays. The optical fibers are fusion on sides of the tray. One tray can splice 24 fibers; Available for 3 trays to splice total 72 fibers. Adopt modified
PP material, with anti-UV, anti-aging and corrosion resistance material. Good quality and long service life. It is reusable.
Features
1. Excessive fibers can be stored in storage baskets. Easy in fiber.
2. Fully mechanical sealing. Easy installation and reentry. No other sealing adhesive tape is
3. Base and dome sealed with clamp and O-ring system. Cable entry ports sealed with 4. The splice trays are hinged for access to any splice tray, without disturbing other
5. The inner parts and fixing parts of the termination Box Fiber are made of stainlesssteel.
6. With a earthing device protect it from damage bylightning.
7. Compatible with most cable types(single fiber or ribbon), and cable constructions(loose tube, central core, slotted core, modular). And the product can be used in any environment (aerial, buried, handhole, manhole)and in many applications(tap-off, expressed, branch, andrepair).
Product Parameters
2 inlets and 2 outlets < 11mm 8 round ports for drop cable Dome & base :Modified P.P +GF Tray: ABS
Environmental requirement
* Working temperature: -40 ℃～ +70 ℃
* Relative humidity: ≤85% (+30℃)
* Atmospheric pressure: 70 KPa ～150 Kpa
Main technical datasheet
* Insertion loss: ≤2 dB
* UPC return loss: ≥50 dB
* APC return loss: ≥60 dB
* Life of insertion and extraction: ＞2000 times
Thunder-proof technical datasheet
* The grounding device is isolated with the cabinet, isolation resistance is no less than 2x10^4
MΩ/500V(DC)(IR ≥ 2x10^4 MΩ/500V(DC)).
* The withstand voltage between grounding device and cabinet is no less than 3000 V(DC)/min (U ≥3000 V(DC)/min), no puncture, no flashover.
