Manufactory Wholesale Rack Mount 1x32 PLC Splitter Box for
FTTH FTTB FTTX Networks
Need reliable optical signal distribution for your passive optical network? The Rack Mount 1x32 PLC Splitter Box delivers exceptional performance with its quartz substrate-based planar waveguide technology, ensuring small size, wide wavelength range (1260~1650nm), and high reliability. Perfect for EPON, BPON, and GPON networks, it supports seamless connectivity between local and terminal devices. With customizable port configurations (1x16, 1x32) and operating temperatures from -40°C to +85°C, this splitter box is engineered for demanding FTTH, FTTB, and FTTX applications.
• Compact design | • Wide wavelength range (1260~1650nm) | • High reliability & spectral uniformity |
• Customizable port configurations | • Ideal for EPON, BPON, GPON networks
Rack Mount 1x32 PLC splitter box Product introduction: Planar waveguide optical splitter (PLC Splitter) is an integrated waveguide optical power distribution device based on quartz substrate. It has the characteristics of small size, wide wavelength range, high reliability and good spectral...

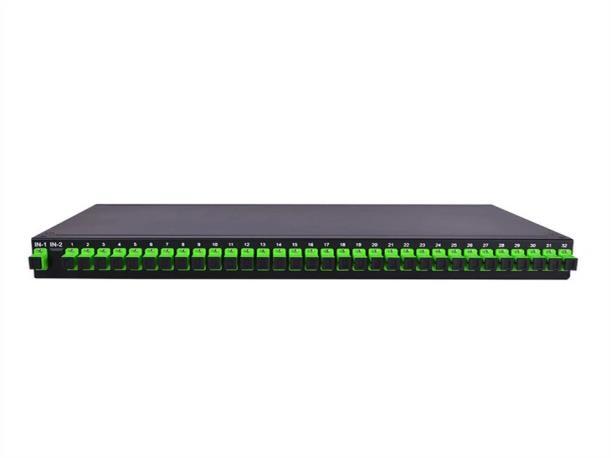

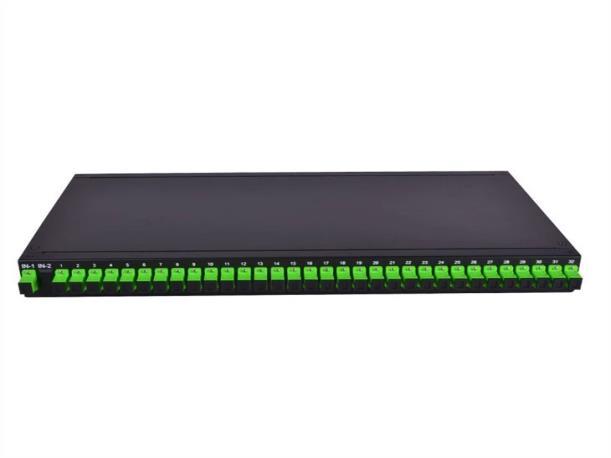

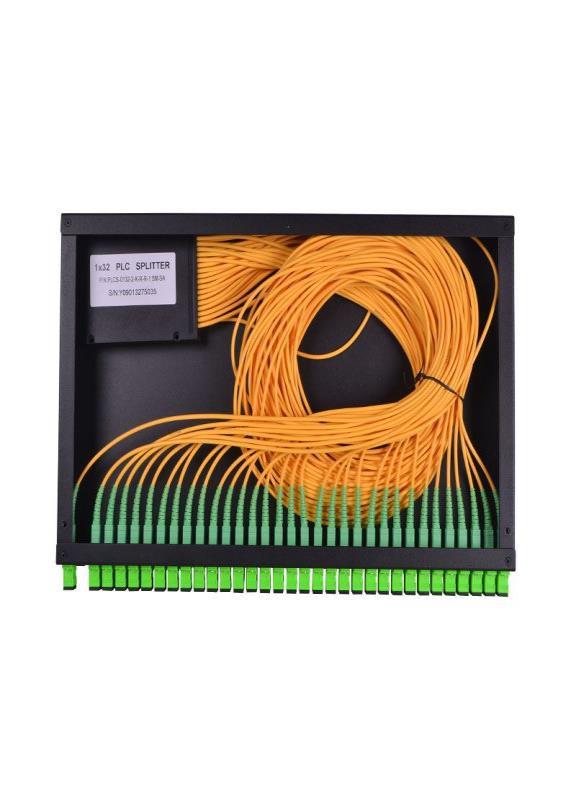

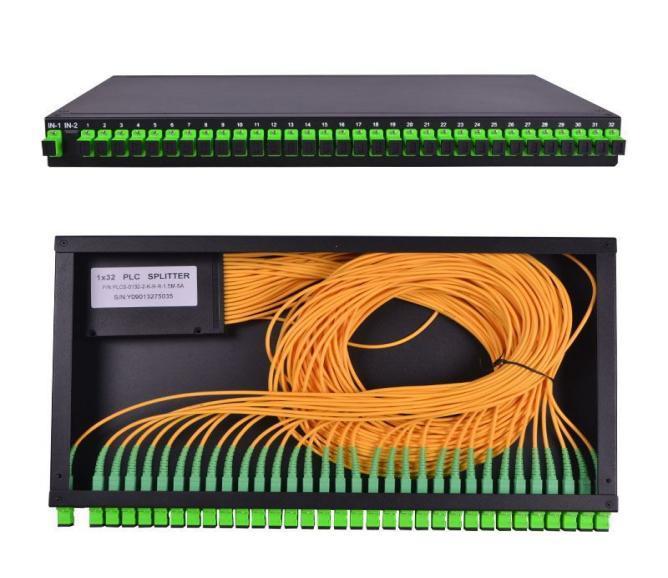

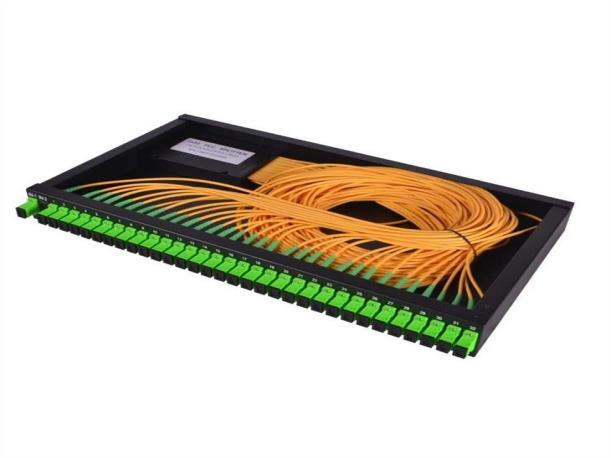

Rack Mount 1x32 PLC splitter box
Product introduction:
Rack Mount 1x32 PLC splitter box is an integrated waveguide optical power distribution device based on quartz substrate. It has thecharacteristics ofsmallsize, widewavelengthrange, highreliabilityand goodspectraluniformity. Particularly suitable for passive optical networks (EPON, BPON, GPON, etc.) to connect local and terminal devices and achieve optical signal splitting. We can provide 1xN and 2xN series products and customize optical splitters for customers in various situations.
Specification parameter :
Port Configuration 1X16,1X32
Color Customized Service
Directivity (dB) ≥ 55
Return Loss (dB) 55/50
Operating Wavelength(nm) 1260~1650
Fiber size
0.9, 2.0, 3.0mm
Mode Single mode; Multi-mode
Operating Temperature -40~+85℃
Connector FC, SC, ST , LC, LC/APC, SC/APC, MU and FC/APC
Application FTTH FTTB FTTX Network
