Manufactory Wholesale Single Mode Simplex 3.0mm Patch Cord for
CATV and Telecommunication Systems
Need reliable and efficient fiber optic connectivity? The Single Mode Simplex 3.0mm Patch Cord offers a robust solution with its thick protective layer and high-quality connectors, ensuring seamless integration with CATV, optical switches, and telecommunication equipment. Designed for durability and performance, it features low insertion loss (≤0.20 dB), high return loss (up to 60 dB), and operates in temperatures from -25°C to +70°C. Ideal for telecom, broadcasting, and data centers, this patch cord meets Bellcore TA-NWT-001209 standards for industry reliability.
• Thick protective layer | • Low insertion loss (≤0.20 dB) | • High return loss (up to 60 dB) | • Wide temperature range (-25°C to +70°C) | • Bellcore TA-NWT-001209 certified
Single Mode Simplex 3.0mm Patch Cord Fiber Optic Patch Cord is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch or other telecommunication equipment. Its thick layer of protection is used to connect the...
Single Mode Simplex 3.0mm Patch Cord
Description
This single mode simplex 3.0mm patch cord is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch or other telecommunication equipment.
single mode simplex 3.0mm patch cord has thick layer of protection,which is used to connect the optical transmitter, receiver, and the terminal box. This is known as "interconnect-style cabling".
Specification:
Item
Fiber Optic Patch Cord
Mode Type SM MM
Cable Material LSZH PVC
Cable Diameter 0.9mm, 2mm or 3mm
Cable Length 1m or customized
Connector Type SC FC LC ST
Number of Fiber SX DX
Fiber Type G652D G657A
Return Loss
45 50 60 /
Operation Temperature ℃ -25 ~ +70
Storage Temperature ℃ -40 ~ +85
Fiber type um 9/125 50/125; 62.5/125
Core number / single or dual fiber
Durability times ≥1000
Industry Standard / Bellcore TA-NWT-001209

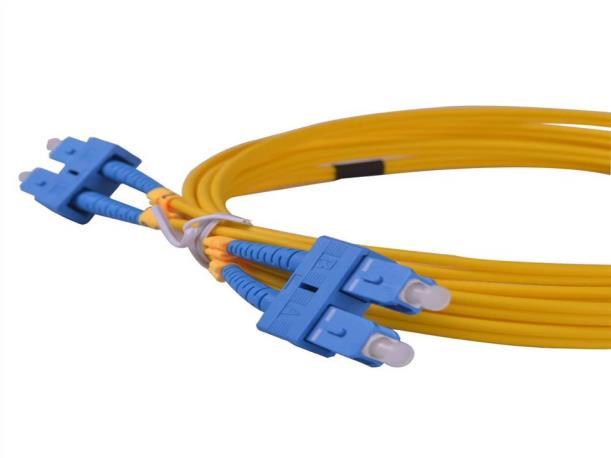

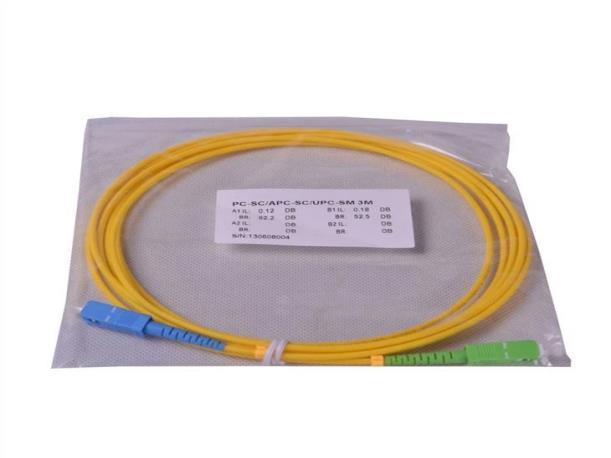

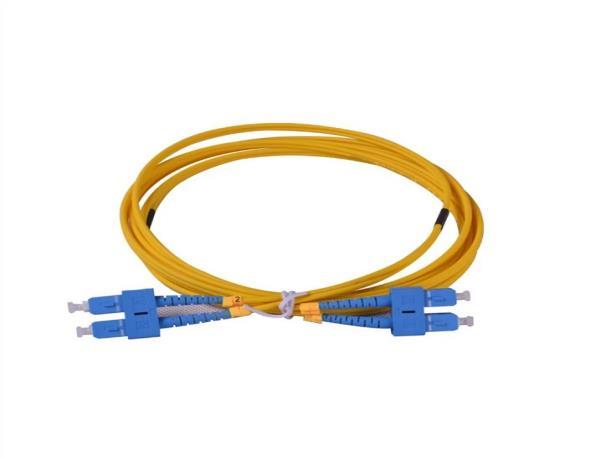

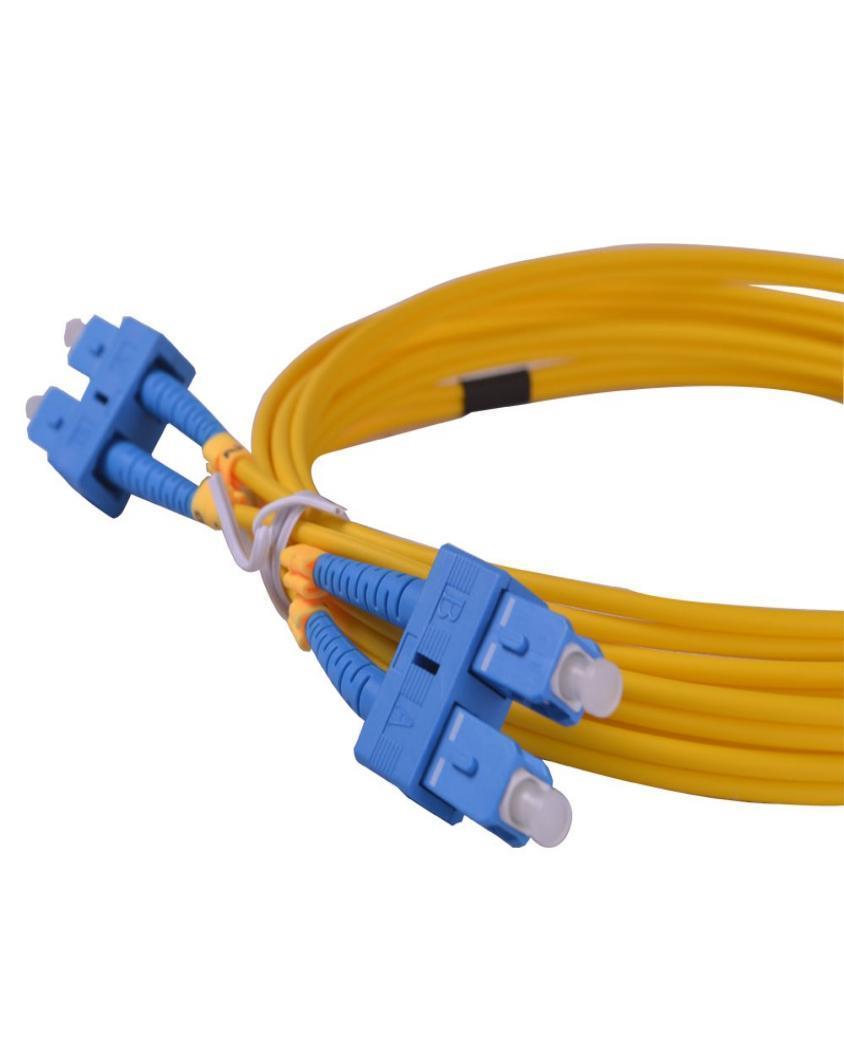

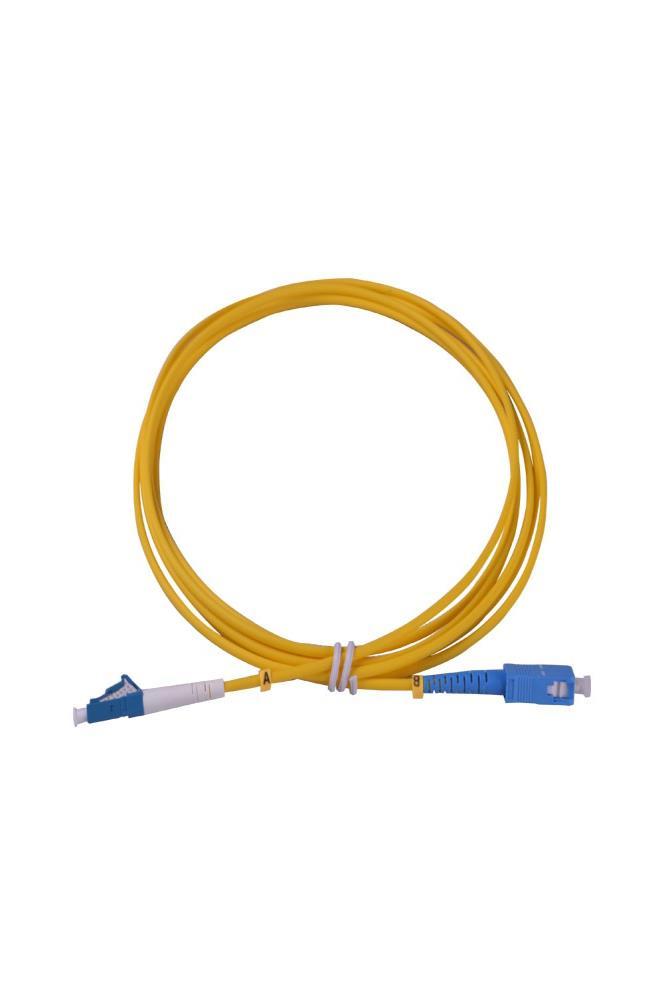

Detail Images
