Manufactory Wholesale Cat5e UTP Lan Cable for High-Speed Network Wiring and Audio/Video Transmission

Contact:Tomleequan

Email：sales@fmuser.com

whatsapp: +8613922702227

Manufactory Wholesale Cat5e UTP Lan Cable for High-Speed Network Wiring and Audio/Video Transmission Looking for reliable network wiring solutions? The Cat5e UTP Lan Cable delivers high-speed data transmission with minimal signal loss, making it ideal for audio, video, and digital communication applications. Built with solid-bare copper conductors and HDPE insulation, it ensures durability and consistent performance. Compliant with ISO/IEC11801, TIA-568-C.2, and YD/T1019 standards, this cable is perfect for network construction in offices, data centers, and smart home setups.

• High-speed data transmission | • Solid-bare copper conductors | • HDPE insulation for durability | • Compliant with ISO/IEC11801, TIA-568-C.2, YD/T1019 | • Ideal for audio, video, and digital communication

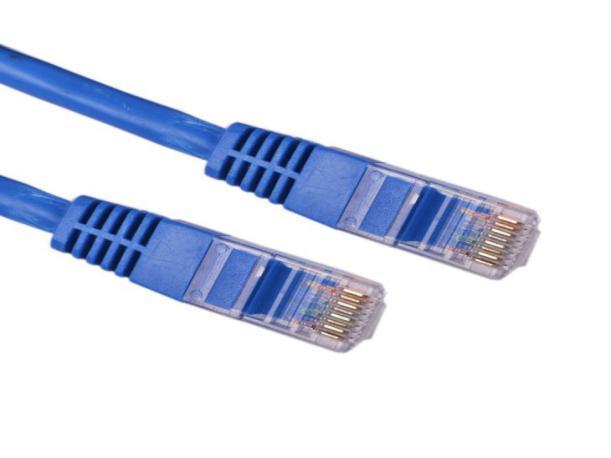

Cat5e Network Lan Cable

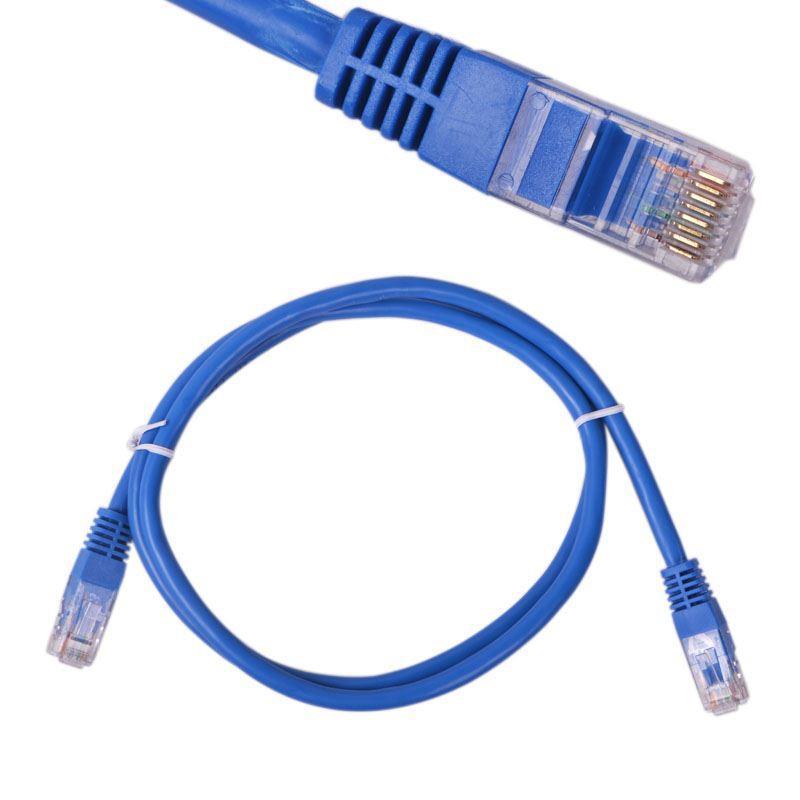

Cat5e UTP Lan Cable

Contact:Tomleequan

Email：sales@fmuser.com

whatsapp: +8613922702227

Contact:Tomleequan

Email：sales@fmuser.com

whatsapp: +8613922702227

Application Cat5e UTP Lan Cable is widely used for network wiring construction and transmission media, such as audio, vedio, digital communication and so on.

Specifications of Cat5e UTP Lan Cable

U/UTP 4Pairs Cable Category 5E

Category

U/UTP CAT5E-4P-PVC

Standard

ISO/IEC11801、TIA-568-C.2 、YD/T1019

Contact:Tomleequan

Email：sales@fmuser.com

whatsapp: +8613922702227

Contact:Tomleequan

Email：sales@fmuser.com

Carton Dimension

35*35*20CM

Cable Packing

Wooden Tray & Carton

whatsapp: +8613922702227

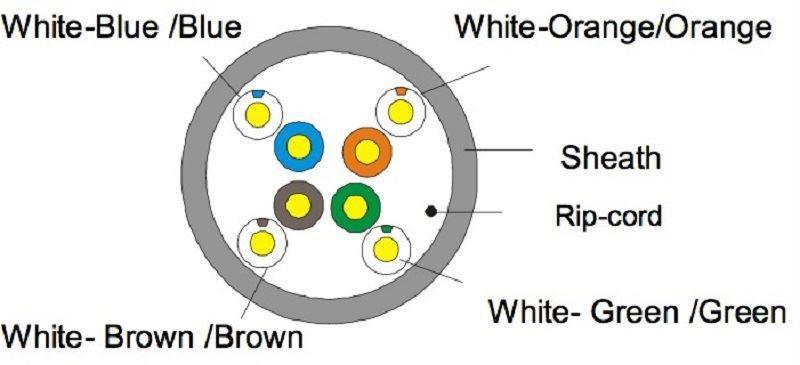

Construction

Conductor

Solid-Bare copper

Blue,White/Blue

Rip Cord

yes

Conductor Dia.

0.50mm±0.

005

Orange,White/Or ange

Jacket

PVC

Insulation

HDPE

Green,White/Gre en

Jacket Colors

Gray

Insulation Dia.

0.88mm±0.

03

Brown,White/Br own

Jacket Out Di a.

5.0mm±0.

4mm

Drain wire

NO

Yes

Average Thickness

0.55±0.05 mm

Insulation colors

Rip-cord

Electrical Characteristics

Frequency(M Hz)

ATT (≤dB/100m)

NEXT (≥dB)

ELFEXT (≥dB)

RL (≥dB)

PS NEXT (≥dB)

1

2.0

65.3

63.8

20.0

62.3

4

4.1

56.3

51.7

23.0

53.3

Contact:Tomleequan

Email：sales@fmuser.com

whatsapp: +8613922702227

Contact:Tomleequan

Email：sales@fmuser.com

whatsapp: +8613922702227

8

5.8

51.8

45.7

24.5

48.8

10

6.5

50.3

43.8

25.0

47.3

16

8.2

47.3

39.7

25.0

44.3

20

9.3

45.8

37.7

25.0

42.8

25

10.4

44.3

35.8

24.3

41.3

31.25

11.7

42.9

33.9

23.6

39.9

62.5

17.0

38.4

27.8

21.5

35.4

100

22.0

35.3

23.8

20.1

32.3

Impedance(1-100MHz)

100±15 O hm

DC Conductor Resistance (Ω/100 m) max

9.5

Delay Shew ns/100m (1-100MHz)

≤45

DC Resistance Unbalance(%) max

5.0

Capacitance(nF/100m) max

5.6

NVP

69%

Contact:Tomleequan

Email：sales@fmuser.com

whatsapp: +8613922702227

Contact:Tomleequan

Email：sales@fmuser.com

whatsapp: +8613922702227

About Us FMUSER is a company specializing in broadcasting and television transmission systems and integrating hotel IPTV systems. The company was established in 2009 and has served over 180 countries worldwide. More than 20,000 television stations, radio stations, and hotel clients from different.
