Manufactory Wholesale GYTC8S Single Mode Fiber Optical
Cable for Long-Haul and Aerial Installation
Need a reliable solution for long-haul and aerial fiber optic installations? The GYTC8S Single Mode Fiber Optical Cable features a metallic central strength member and moisture barrier inner sheath, making it ideal for pole-to-pole or pole-to-premises setups. Designed for long-haul communication, junction systems, and LAN networks, it offers low attenuation (≤0.36dB/km at 1310nm) and high tensile strength (up to 12000N). With a temperature range of -40°C to +60°C, this cable ensures durability and performance in demanding environments.
• Aerial installation-ready | • Low attenuation (≤0.36dB/km) | • High tensile strength (up to 12000N) | • Suitable for long-haul and LAN systems | • Temperature range: -40° C to +60°C
GYTC8S is usable for aerial installation, Long-haul communication system, junction communication system, subscriber network systems and Local area network systems.
Single Mode Fiber Optical Cable
Description

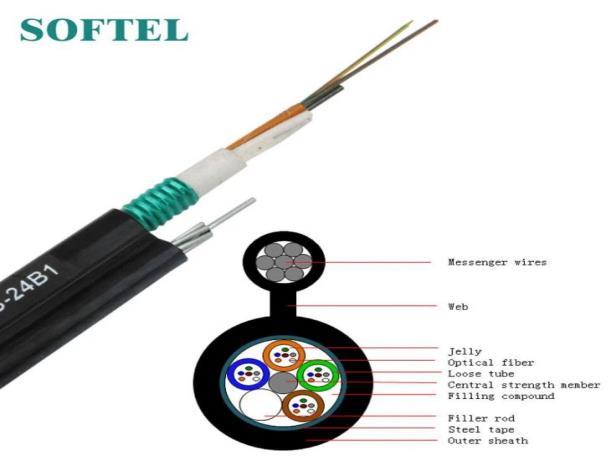

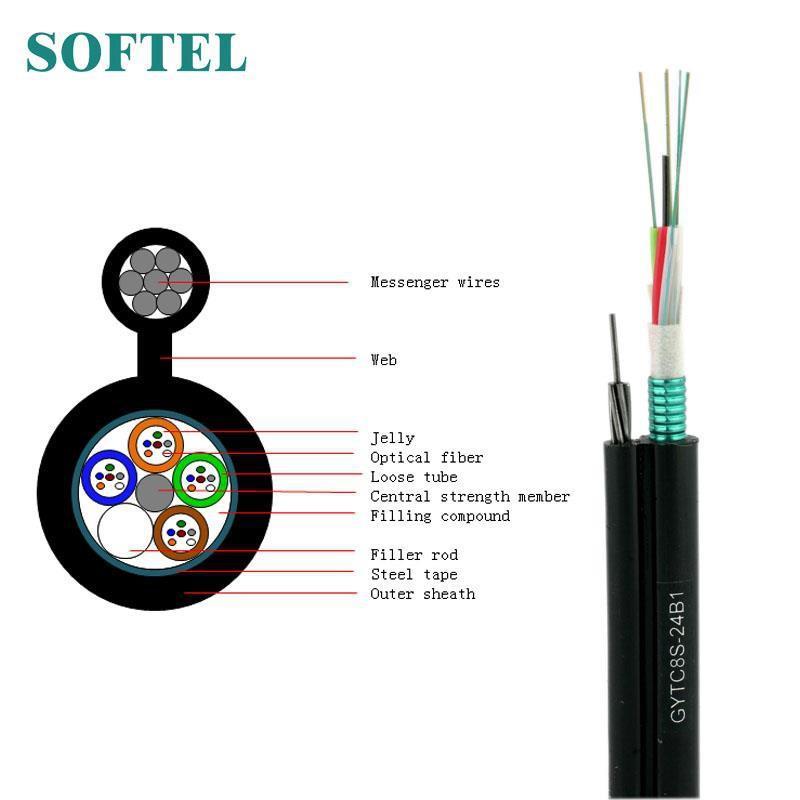

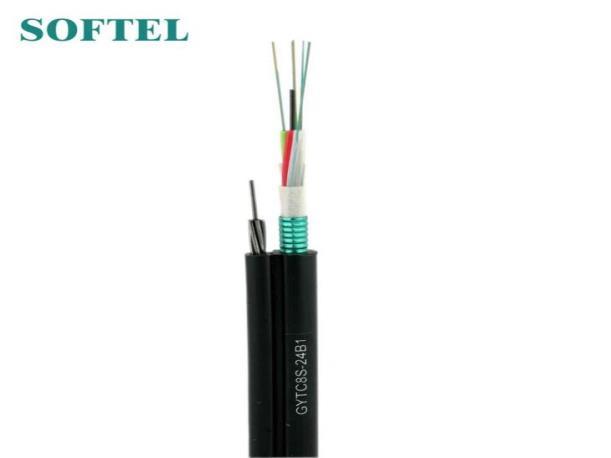

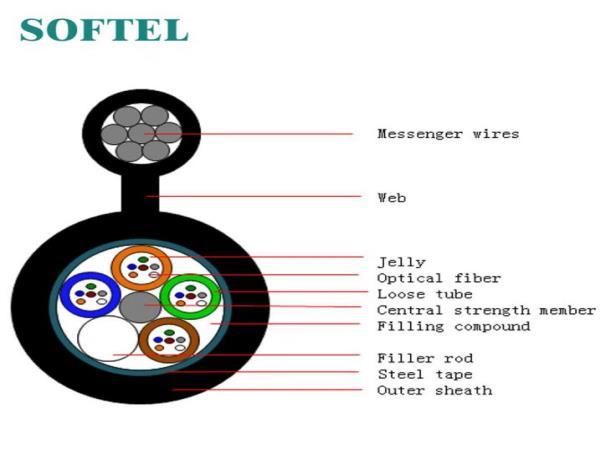

With metallic central strength member of steel wire and moisture barrier inner sheath incorporating steel messenger wire, this single mode fiber optical cable is suitable for overhead installation such as pole-to-pole or pole-to premises.
Characteristic of Optical Fiber (G652D Fiber )
Mode field diameter (1310nm): 9.2mm±0.4mm
Mode field diameter (1550nm): 10.4mm±0.8mm
Cut off wavelength of cabled fiber (lcc): £1260nm
Attenuation at 1310nm: £0.36dB/km
Attenuation at 1550nm: £0.22dB/km
Contact:Tomleequan
Bending loss at 1550nm (100 turns, 30mm radius): £0.05dB
Dispersion in the range 1288 to 1339nm: £3.5ps/ (nm•km)
Dispersion at 1550nm: £18ps/ (nm•km)
Dispersion slope at zero dispersion wavelength: £0.092ps/ (nm2•km)
Dimensional Characteristics
Mechanical & Environmental Characteristics
