Manufactory Wholesale Outdoor Aerial Optical Cable ADSS for
Utility Communications with 700m Span
Looking for a robust and cost-effective solution for aerial fiber optic installations? The Outdoor Aerial Optical Cable ADSS is designed to support itself between structures without conductive metal elements, making it ideal for electrical utility companies. With a lightweight and small-diameter design, it minimizes tower load while offering spans of up to 700 meters. This cable is a reliable alternative to OPGW and OPAC, ensuring high tensile strength (2700N) and crush resistance (1000N/100mm), even in harsh weather conditions.
• Self-supporting design | • Lightweight & small diameter | • 700m span capability | • High tensile & crush resistance | • Suitable for utility communications
ADSS cable is a type of optical fiber cable that is strong enough to support itself between structures without using conductive metal elements. It is used by electrical utility companies as a communications medium, installed along existing overhead transmission lines and often sharing the same support structures as the electrical conductors

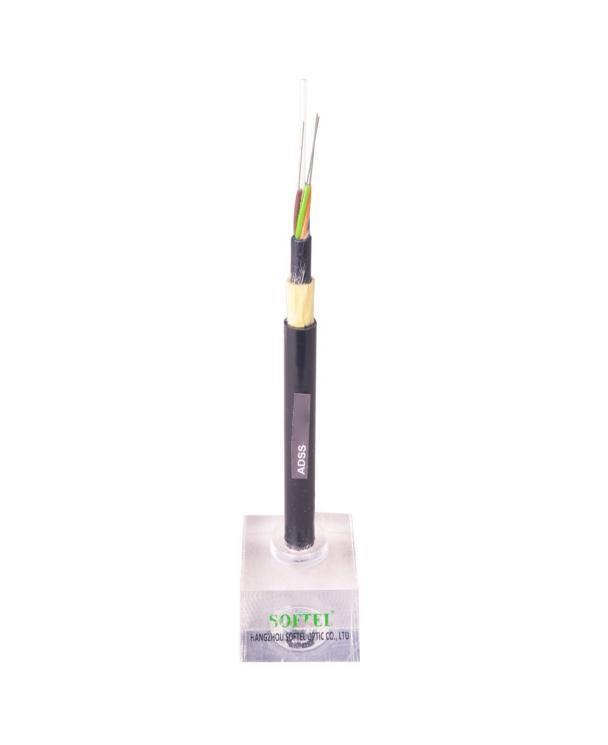

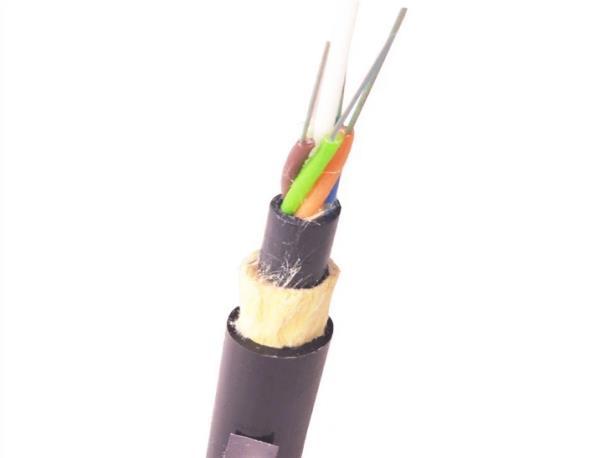

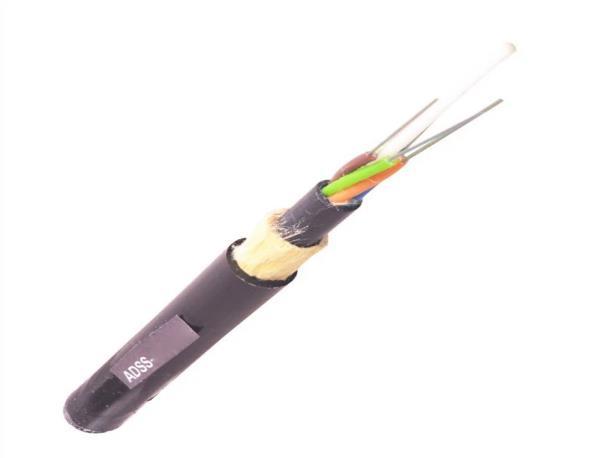

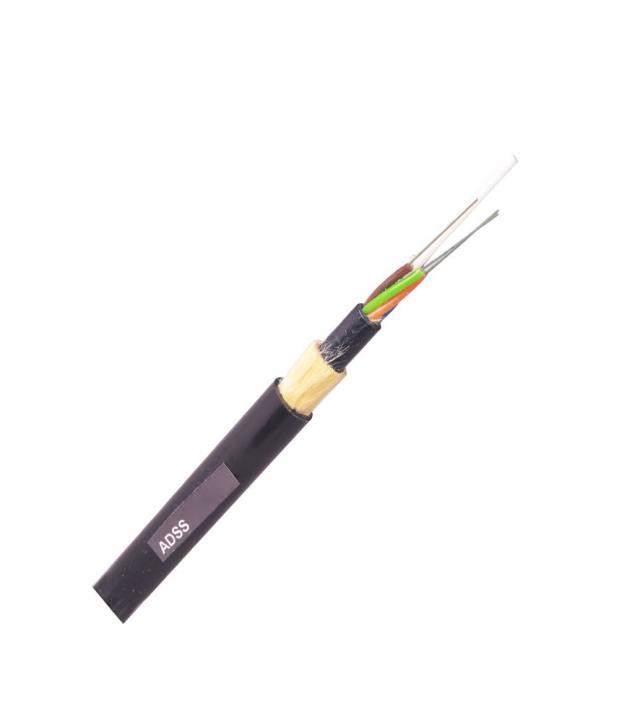

Outdoor aerial optical cable ADSS
Contact:Tomleequan Email：
ADSSis analternativetoOPGW andOPAC withlower installation cost. The cables aredesignedtobestrong enough toallow lengths of upto700 metres tobe installedbetweensupporttowers. ADSS cableis designedtobelightweight and small in diameter to reduce the load on tower structures due to cable weight, wind, and ice.
Note: Mechanical sizes are nominal values.
Characteristic of Optical Cable
Min. bending radius for installation
Static: 10 x cable diameter
Dynamic: 20 x cablediameter
2.2 Application temperature range Operation: -40℃ ~
+60℃ Installation: -10℃ ~
+60℃ Storage/transportation: -40 ℃ ~ +60℃
Main mechanical & environmental performance test
Item
Tensile Strength
IEC 60794-1-2-E1
Crush Test
IEC 60794-1-2-E3
- Load: Maximum allowable tension
- Length of cable: about 50m
- Load time: 1min
- Load: Short term crush
- Load time: 1min
- Fiber strain 0.33%
- No fiber break and no sheath damage.
- Loss change 0.1dB@1550nm
- No fiber break and no sheath damage.
