Manufactory Wholesale ADSS Fiber Optic Cable for Overhead
Installation with FRP Central Strength
Member
Looking for a reliable solution for overhead fiber optic installations? The ADSS Fiber Optic Cable features a loose tube design with an FRP central strength member, aramid yarns, and a black polyethylene sheath, making it ideal for pole-to-pole or pole-to-premises setups. With low attenuation (0.36dB/km at 1310nm and 0.22dB/km at 1550nm) and high tensile strength, this cable ensures durability and performance in harsh environments. Designed for telecom and utility networks, it supports up to 6 fibers per tube, color-coded for easy identification.
• Loose tube design with FRP central strength member | • Low attenuation: 0.36dB/km at 1310nm | • High tensile strength for overhead installation | • Suitable for telecom and utility networks | • Up to 6 fibers per tube, color-coded
It is ofloosetube style, optical fiber cable withFRP centralstrength member and peripheral aramid yarns andblack polyethylene sheath suitable for overhead installation as pole-to-pole or pole-to-premises.

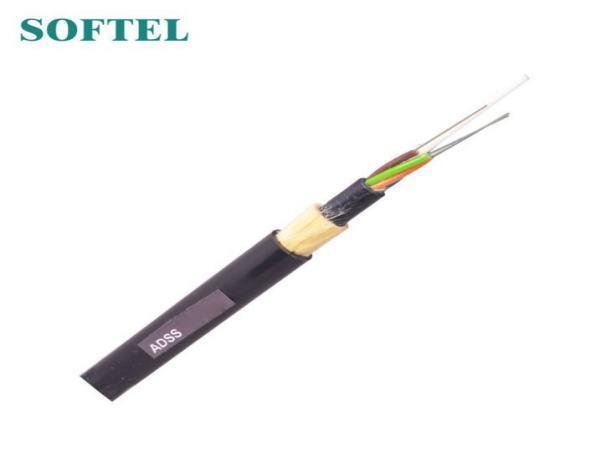

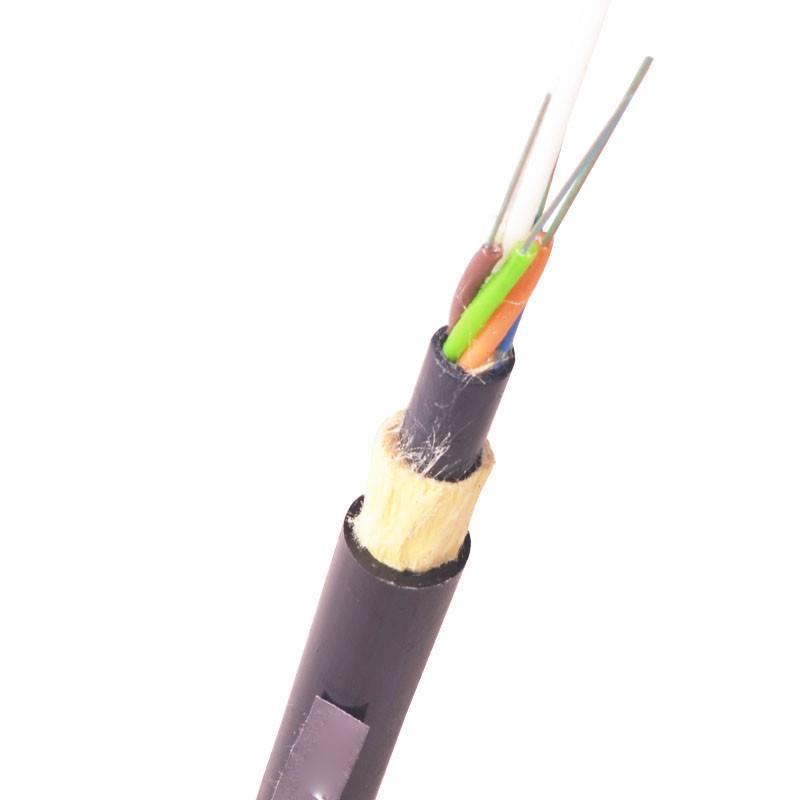

ADSS Fiber Optic Cable is of loose tube style, optical fiber cable with FRP central strength member and peripheral aramid yarns and black polyethylene sheath suitable for overhead installation as pole-to-pole or pole-to-premises. Tubes contain up to 6 Fibers color coded as per color coding scheme.
Characteristic
◆G652D fiber information after cabled
◆Mode field diameter (1310nm): 9.2m0.4m
◆Mode field diameter (1550nm): 10.4m0.8m
◆Cut off wavelength of cabled fiber (cc): 1260nm
◆Attenuation at 1310nm: 0.36dB/km
◆Attenuation at 1550nm: 0.22dB/km
◆Bending loss at 1550nm (100 turns, 30mm radius): 0.05dB
◆Dispersion in the range 1288 to 1339nm: 3.5ps/ (nm•km)
◆Dispersion at 1550nm: 18ps/ (nm•km)
◆Dispersion slope at zero dispersion wavelength: 0.092ps/(nm2•km)
Parameters
Only a part of ADSS cables are list in the table.
We can design the different characteristic base on the environment condition.
