Manufactory Wholesale Satellite Optical Receiver with CWDM for 47-2150MHz Frequency Range

Looking for a high-performance solution for satellite optical systems? The Satellite Optical Receiver is designed with built-in CWDM, offering a wide operating frequency range of 47-2150MHz and compact dimensions for easy installation. Ideal for satellite TV and communication networks, it ensures excellent linearity, flatness, and high return loss with 1-core single-mode fiber. With features like optical AGC and a 5 IN series satellite multiswitch connection, this receiver delivers reliable performance for demanding applications.

• Wide frequency range: 47-2150MHz | • Built-in CWDM & high linear PD | • Optical AGC function | • Compact design for easy installation | • Red-LED power indication

SATELLITE OPTICAL RECEIVER is designed for satellite optical system, is easy to install and has high performance.

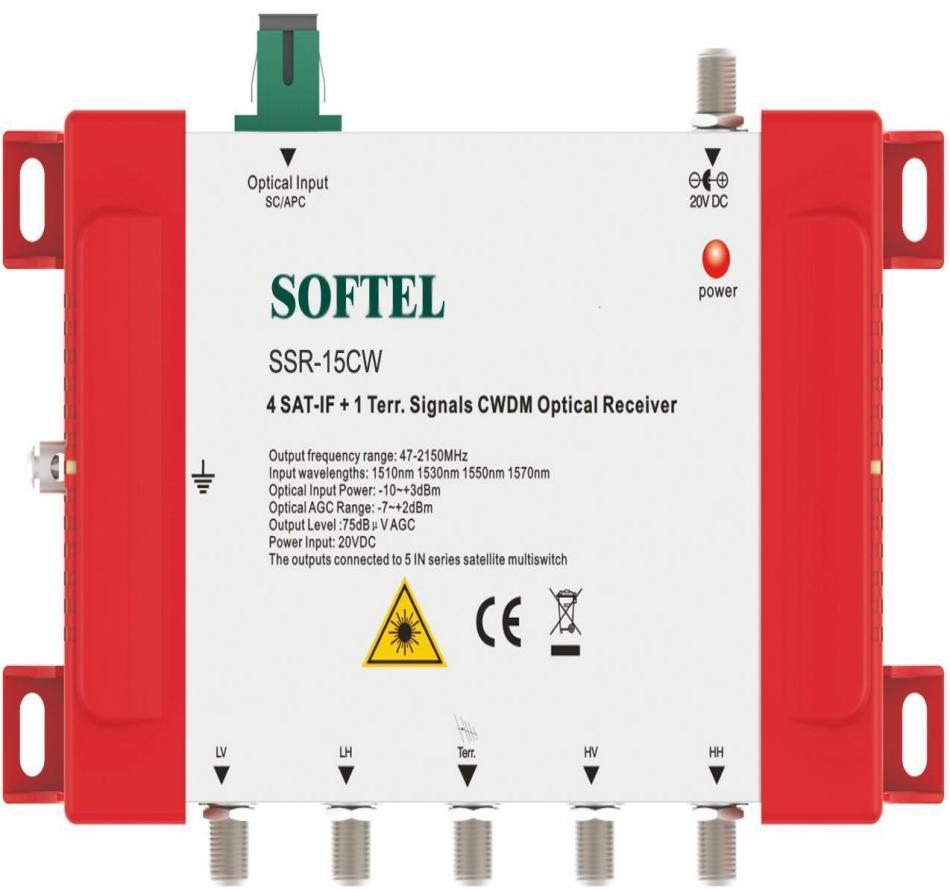

Satellite Optical Receiver

Summary

This satellite optical receiver is designed with bulid-in CWDM for satellite optical system, has wide operating frequency range and samller size for more cenviente installation.

Key Features

● Wide operating frequency range: 47-2150MHz

● Excellent linearity and flatness

● Using 1-core single-mode fiber, high return loss

● Build-in CWDM, using high linear PD

● Output connected to 5 IN series satellite multiswitch

● Build-in optical AGC function

● Red-LED for power indication

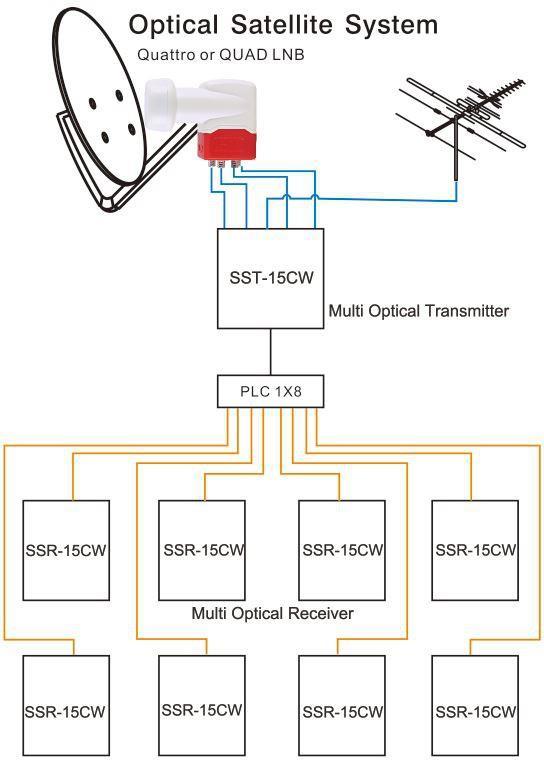

Satellite Optical Receiver Application

Parameter of Satellite Optical Receiver

Contact:Tomleequan Email:

ITEM Parameters

FR connector

F-female

Optical Connector SC/APC

Power Supply F-female

LV-RX: 1510nm

LH-RX: 1530nm

Input Optical Wavelength

Input Optical Power

HV+Terr.-RX: 1550nm

HH-RX: 1570nm

-10 ~ +3dBm -7 ~ +2dBm @AGC

Output Impedance 75 Ω

Frequency Range 47-2150MHz

Output Level ≥75dBuV @AGC

AGC Stability ±1dB

Power Supply 20 VDC

Power Consumption <10 W

Dimensions 195*128*40mm
