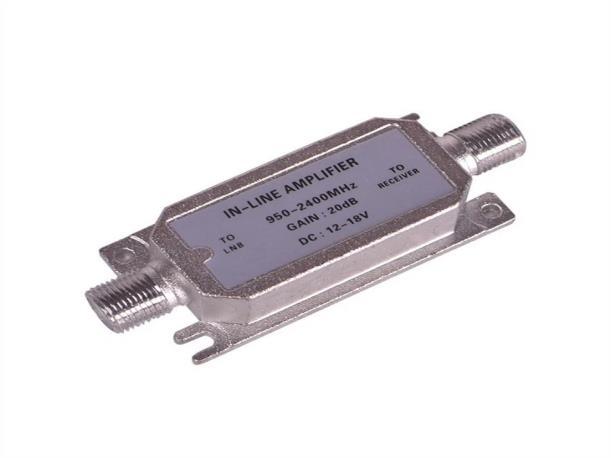

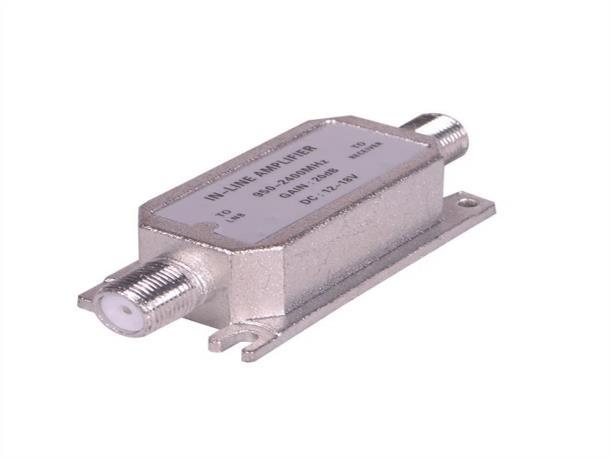

Manufactory Wholesale Satellite Signal In Line Amplifier for LNB Output Boosting with 20dB Gain
Experiencing signal loss in your satellite transmission? The Satellite Signal In Line Amplifier is engineered to boost SAT IF signals with a 20dB gain, ensuring optimal performance for LNB output amplification. Featuring low intermodulation distortion, a zinc die-cast housing, and a low noise circuit design, this amplifier is ideal for broadcast, telecom, and satellite communication systems. With a frequency range of 950~2400MHz and a max output of 115dBμV, it guarantees reliable signal enhancement.
• 20dB insertion gain | • Low noise circuit design | • Zinc die-cast housing | • 950~2400MHz frequency range | • Ideal for broadcast and telecom systems
Features
Design for in-line boosting SAT IF
Powerd by the receiver via coaxial cable
Model with slope gain can equilibrate cable loss
Low intermodulation distortion
Zinc die-cast housing with nickel plated
Low noise circuit design
Special design for LNB output signal amplification
75Ω, British system F-type connector
Max. passing current 0.5A
Specifications
1).Input Frequency: 950~2400MHz
2).Insertion Gain: 20dB
3).Return Loss: 10dB
4).Output: 105dBuV
5).Power supply: 12~20V/DC
6).DC current consumption: 30mA
7).Max DC current to LNB: 500mA
8).Input/Output connector: 75ohm
9).Temperature: -10~+50degree
Parameters
